EMAC, INC.
PCM-5896
| Device Type | Single Board Computer |
| Processor | CX 6X86MX/CX MII/AM K6/AM K6-2/IDT Winchip/Pentium/Pentium MMX |
| Processor Speed | 166/200/233/266/300/333/350/366/400MHz |
| Chip Set | ALI |
| Video Chip Set | Chips and Technology |
| Audio Chip Set | Creative Labs |
| Maximum Onboard Memory | 128MB (SDRAM supported) |
| Maximum Video Memory | 2MB |
| Cache | Unidentified |
| BIOS | Award |
| Dimensions | 203mm x 146mm |
| I/O Options | 32-bit PCI slot, ATX power connector, Audio in - CD-ROM, Ethernet 100BaseT connector, Flat panel connector, Floppy drive interface, IDE interface, IR connector, Parallel interface, PC/104 connectors (2), PS/2 mouse/AT keyboard interface, Serial interfaces (4), Solid-state flash disk socket, Sound connector, USB interface, VGA connector |

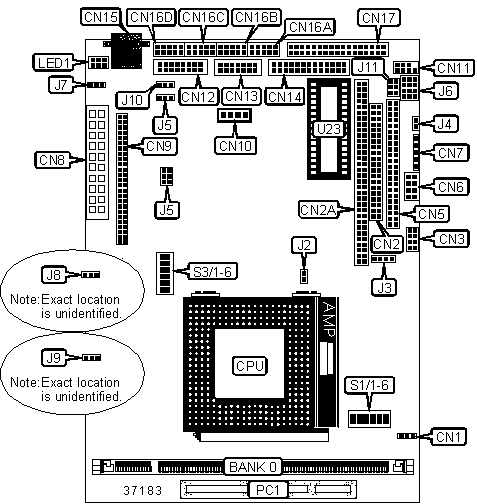

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| CPU fan power | CN1 | Sound connector | CN13 |
| 16-bit PC/104 connector | CN2 | Parallel interface | CN14 |
| 8-bit PC/104 connector | CN2A |
100BaseT Ethernet connector | CN15 |
| USB interface | CN3 |
Serial interface 1 | CN16A |
| IDE interface | CN5 |
Serial interface 2 | CN16B |
| IDE interface LED | CN6/Pins 1 & 2 |
Serial interface 3 | CN16C |
| Speaker | CN6/Pins 3 - 5 | Serial interface 4 | CN16D |
| Reset switch | CN6/Pins 7 & 8 | Floppy drive interface | CN17 |
| IR connector | CN7 | Power switch | J4 |
| ATX power connector | CN8 | Ethernet Rx LED connector | LED1/Pins 1 & 2 |
| Flat panel connector | CN9 |
Ethernet Link LED connector | LED1/Pins 3 & 4 |
| Audio in - CD-ROM | CN10 | Ethernet Tx LED connector | LED1/Pins 5 & 6 |
| PS/2 mouse/AT keyboard interface | CN11 | 32-bit PCI slot | PC1 |
| VGA connector | CN12 | Solid-state flash disk (DOC) socket | U23 |
| Note: Pin 1 locations of CN6 & LED1 are unidentified. | |||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | J2 |
Open |
| CMOS memory clear | J2 |
Closed |
|
| » | Flat panel clock signal select SHF | J7 | Pins 2 & 3 closed |
| Flat panel clock signal select ASHF | J7 | Pins 1 & 2 closed | |
| » | Flat panel connector voltage select 3.3V | J8 |
Pins 2 & 3 closed |
| Flat panel connector voltage select 5V | J8 |
Pins 1 & 2 closed |
|
» |
Factory configured - do not alter | J9 |
Pins 1 & 2 closed |
| » | Audio output amplified | J12 |
Pins 3 & 5, 4 & 6 closed |
| Audio output not amplified | J12 | Pins 1 & 3, 2 & 4 closed |
|
» |
Factory configured - do not alter | S1/1 | Unidentified |
| Note: Pin 1 locations of J7, J8, J9 & J12 are unidentified. Switch 1 location on S1 is unidentified. | |||
DIMM CONFIGURATION |
|
Size |
Bank 0 |
16MB |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
| Note: Board supports SDRAM memory. | |
CPU BUS SPEED SELECTION |
|||||
CPU |
PCI | S3/1 | S3/2 | S3/3 | |
| 60MHz | 30MHz | On | On | On | |
| 66.8MHz | 33.4MHz | Off | On | On | |
| 75MHz | 30MHz | On | On | Off | |
| 83.3MHz | 33.3MHz | Off | On | Off | |
| 90MHz | 30MHz | On | Off | Off | |
| » | 100MHz | 33.3MHz | Off | Off | Off |
Note: Switch 1 location of S3 is unidentified. |
|||||
CPU MULTIPLIER SELECTION |
||||
Multiplier |
S3/4 |
S3/5 | S3/6 | |
| 1.5x | Off | Off | Off | |
| 2.0x | Off | Off | On | |
| 2.5x | Off | On | On | |
| 3.0x | Off | On | Off | |
| 3.5x | Off | Off | Off | |
| » | 4.0x | On | Off | On |
| 4.5x | On | On | On | |
| 5.0x | On | On | Off | |
| 5.5x | On | Off | Off | |
Note: Switch 1 location of S3 is unidentified. |
||||
CPU VOLTAGE SELECTION (DUAL) |
||||||
Voltage |
S1/2 |
S1/3 | S1/4 | S1/5 | S1/6 | |
|
1.8V |
On |
On | Off | On | Off |
| 1.85V | On | On | Off | On | On | |
| 1.9V | On | On | On | Off | Off | |
| 1.95V | On | On | On | Off | On | |
| 2.0V | On | On | On | On | Off | |
| 2.05V | On | On | On | On | On | |
2.1V |
Off | Off | Off | Off | On | |
| » | 2.2V | Off | Off | Off | On | Off |
| 2.3V | Off | Off | Off | On | On | |
| 2.4V | Off | Off | On | Off | Off | |
| 2.5V | Off | Off | On | Off | On | |
| 2.6V | Off | Off | On | On | Off | |
| 2.7V | Off | Off | On | On | On | |
| 2.8V | Off | On | Off | Off | Off | |
| 2.9V | Off | On | Off | Off | On | |
| 3.0V | Off | On | Off | On | Off | |
| 3.1V | Off | On | Off | On | On | |
| 3.2V | Off | On | On | Off | Off | |
| 3.4V | Off | On | On | On | Off | |
Note: Switch 1 location of S1 is unidentified. |
||||||
CPU VOLTAGE SELECTION (SINGLE) |
|||||
Voltage |
S1/2 |
S1/3 | S1/4 | S1/5 | S1/6 |
| 3.3V | Off | On | On | Off | On |
| 3.5V | Off | On | On | On | On |
Note: Switch 1 location of S1 is unidentified. |
|||||
SERIAL INTERFACE 2 SELECTION |
|||
Setting |
J6 |
J11 |
|
| » | RS-232 |
Pins 1 & 2, 4 & 5, 7 & 8, 10 & 11 closed |
Pins 1 & 2 closed |
RS-422 |
Pins 2 & 3, 5 & 6, 8 & 9, 11 & 12 closed |
Pins 3 & 4 closed | |
RS-485 |
Pins 2 & 3, 5 & 6, 8 & 9, 11 & 12 closed |
Pins 5 & 6 closed | |
Note: Pin 1 locations of J6 & J11 are unidentified. All pins should be open unless designated as closed. |
|||
SERIAL INTERFACE 3 VOLTAGE SELECTION |
||||
Setting |
J10/Pins 1 & 2 |
J10/Pins 3 & 4 | J10/Pins 5 & 6 | |
| » | RI |
Open |
Open | Closed |
+5V |
Open |
Closed | Open | |
+12V |
Closed |
Open | Open | |
Note: Pin 1 location of J10 is unidentified. |
||||
SERIAL INTERFACE 4 VOLTAGE SELECTION |
||||
Setting |
J5/Pins 1 & 2 |
J5/Pins 3 & 4 | J5/Pins 5 & 6 | |
| » | RI |
Open |
Open | Closed |
+5V |
Open |
Closed | Open | |
+12V |
Closed |
Open | Open | |
Note: Pin 1 location of J5 is unidentified. |
||||
SOLID-STATE FLASH DISK (DOC) ADDRESS SELECTION |
|||
Address |
J3/Pins 1 & 2 |
J3/Pins 3 & 4 | |
D400h |
Open |
Open | |
| » | D800h | Closed | Open |
| DC00h | Open | Closed | |
Disable |
Closed |
Closed | |
Note: Pin 1 location of J3 is unidentified. |
|||
MISCELLANEOUS TECHNICAL NOTES |
Solid-state flash disk socket supports (DOC 2000 & 1000 series) devices from 2MB to 144MB. |
