INDUSTRIAL COMPUTER SOURCE
SB586TCP SERIES
| Device Type | Single Board Computer |
| Processor | Pentium |
| Processor Speed | 90/100/120/133/150/166Mhz |
| Chip Set | Intel |
| Maximum Onboard Memory | 256MB |
| Cache | 256KB |
| BIOS | AMI |
| Dimensions | Unidentified |
| I/O Options | Floppy drive interface, IDE interface, Parallel port, Serial interface, Serial port, SCSI-2 interface |
| Data Bus | ISA/PCI |

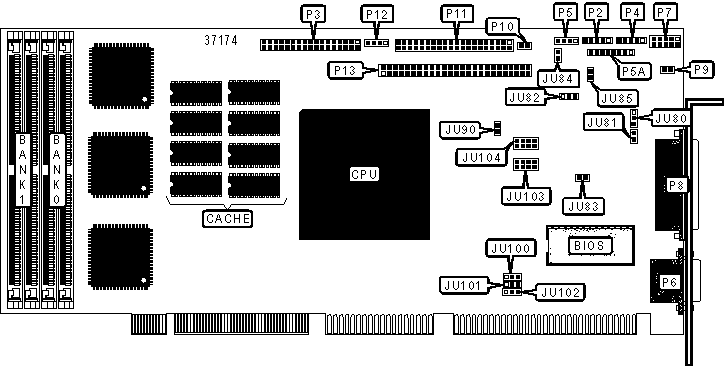

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Power LED & Keylock | P2 | Parallel port | P8 |
| Floppy drive interface | P3 | CPU fan power | P9 |
| AT keyboard interface | P4 | Reset switch | P10 |
| Speaker | P5 | IDE interface | P11 |
| Combo I/O connector | P5A | IDE interface LED | P12 |
| Serial port | P6 | SCSI/PCI interface | P13 |
| Serial interface | P7 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CRT color display selected | JU80 | Pins 1 & 2 closed |
| CRT monochrome display selected | JU80 | Pins 2 & 3 closed | |
| » | Password normal operation | JU81 | Open |
| Password clear | JU81 | Closed | |
» |
Watchdog timer disabled | JU82 |
Pins 1 & 2 closed |
| Watchdog timer enabled | JU82 |
Pins 2 & 3 closed | |
» |
CMOS memory normal operation | JU83 |
Open |
| CMOS memory clear | JU83 |
Closed | |
| Speaker (P5A) connect | JU84 | Closed | |
| Speaker (P5A) disconnect | JU84 | Open | |
| Reset (P5A) connect | JU85 | Closed | |
| Reset (P5A) disconnect | JU85 | Open | |
| » | IOCHRDY signal to IDE interface connected | JU90 |
Closed |
| IOCHRDY signal from IDE interface disconnected | JU90 |
Open |
|
» |
On board serial port IRQ4 selected | JU100 | Pins 2 & 3 closed |
| On board serial port IRQ3 selected | JU100 | Pins 1 & 2 closed |
|
| » | On board serial interface IRQ3 selected | JU101 |
Pins 1 & 2 closed |
| On board serial interface IRQ4 selected | JU101 |
Pins 2 & 3 closed |
|
| » | On board parallel port IRQ7 selected | JU102 |
Pins 2 & 3 closed |
| On board parallel port IRQ5 selected | JU102 |
Pins 1 & 2 closed |
|
SIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
2MB |
(2) 256K x 36 |
None |
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
4MB |
(2) 512K x 36 |
None |
6MB |
(2) 512K x 36 |
(2) 256K x 36 |
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
8MB |
(2) 1M x 36 |
None |
16MB |
(2) 2M x 36 |
None |
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
32MB |
(2) 4M x 36 |
None |
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
64MB |
(2) 8M x 36 |
None |
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
128MB |
(2) 16M x 36 |
None |
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
PARALLEL PORT ACKNOWLEDGEMENT SELECTION |
|
DACK |
JU103 |
DACK#3 |
Pins 7 & 8 closed |
DACK#5 |
Pins 5 & 6 closed |
DACK#6 |
Pins 3 & 4 closed |
DACK#7 |
Pins 1 & 2 closed |
PARALLEL PORT REQUEST SELECTION |
|
DREQ |
JU104 |
DREQ#3 |
Pins 7 & 8 closed |
DREQ#5 |
Pins 5 & 6 closed |
DREQ#6 |
Pins 3 & 4 closed |
DREQ#7 |
Pins 1 & 2 closed |
MISCELLANEOUS TECH NOTE |
Each SB586TCP series model supports a single processor speed. |
