INDUSTRIAL COMPUTER SOURCE
SB586TCT SERIES
| Device Type | Single Board Computer |
| Processor | Pentium |
| Processor Speed | 100/133/166/200Mhz |
| Chip Set | Intel 430HX |
| Maximum Onboard Memory | 256MB (EDO supported) |
| Cache | 512KB |
| BIOS | AMI |
| Dimensions | Unidentified |
| I/O Options | AT keyboard interface, Combo I/O connector, Floppy drive interface, IDE interface, Parallel port, PS/2 mouse interface, Serial interface, Serial port, USB interfaces (2) |
| Data Bus | ISA/PCI |

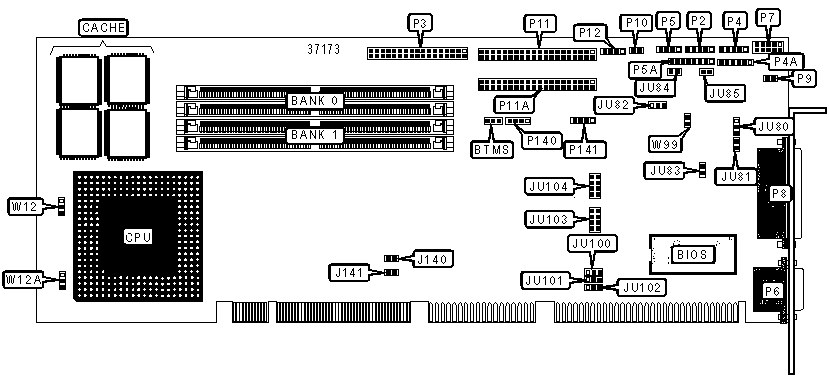

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Board Temperature Monitor System | BTMS | Parallel port | P8 |
| Power LED & keylock | P2 | CPU fan power | P9 |
| Floppy drive interface | P3 | Reset switch | P10 |
| AT keyboard interface | P4 | IDE interface 1 | P11 |
| PS/2 mouse interface | P4A | IDE interface 2 | P11A |
| Speaker | P5 | IDE interface LED | P12 |
| Combo I/O connector | P5A | USB interface 1 | P140 |
| Serial port | P6 | USB interface 2 | P141 |
| Serial interface | P7 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CRT color display selected | JU80 | Pins 1 & 2 closed |
| CRT monochrome display selected | JU80 | Pins 2 & 3 closed | |
| » | Password normal operation | JU81 | Open |
| Password clear | JU81 | Closed | |
» |
Watchdog timer disabled | JU82 |
Pins 1 & 2 closed |
| Watchdog timer enabled | JU82 |
Pins 2 & 3 closed | |
» |
CMOS memory normal operation | JU83 |
Open |
| CMOS memory clear | JU83 |
Closed | |
| Speaker (P5A) connect | JU84 | Closed | |
| Speaker (P5A) disconnect | JU84 | Open | |
| Reset (P5A) connect | JU85 | Closed | |
| Reset (P5A) disconnect | JU85 | Open | |
» |
On board serial port IRQ4 selected | JU100 | Pins 2 & 3 closed |
| On board serial port IRQ3 selected | JU100 | Pins 1 & 2 closed |
|
| » | On board serial interface IRQ3 selected | JU101 |
Pins 1 & 2 closed |
| On board serial interface IRQ4 selected | JU101 |
Pins 2 & 3 closed |
|
| » | On board parallel port IRQ7 selected | JU102 |
Pins 2 & 3 closed |
| On board parallel port IRQ5 selected | JU102 |
Pins 1 & 2 closed |
|
SIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
2MB |
(2) 256K x 36 |
None |
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
4MB |
(2) 512K x 36 |
None |
6MB |
(2) 512K x 36 |
(2) 256K x 36 |
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
8MB |
(2) 1M x 36 |
None |
16MB |
(2) 2M x 36 |
None |
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
32MB |
(2) 4M x 36 |
None |
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
64MB |
(2) 8M x 36 |
None |
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
128MB |
(2) 16M x 36 |
None |
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
| Note: Board accepts EDO memory. | ||
CPU SPEED SELECTION |
|||||||
CPU speed |
Clock speed |
Multiplier |
J140 |
J141 | W12 |
W12A | W99 |
100MHz |
66MHz |
1.5x |
Open | Closed | 2 & 3 | 2 & 3 | Closed |
133MHz |
66MHz |
2x |
Open | Closed | 1 & 2 | 2 & 3 | Closed |
166MHz |
66MHz |
2.5x |
Open | Closed | 1 & 2 | 1 & 2 | Closed |
200MHz |
66MHz |
2.5x |
Open | Closed | 2 & 3 | 1 & 2 | Closed |
| Note: Pins designated should be in the closed position. | |||||||
PARALLEL PORT ACKNOWLEDGEMENT SELECTION |
|
DACK |
JU103 |
DACK#3 |
Pins 7 & 8 closed |
DACK#5 |
Pins 5 & 6 closed |
DACK#6 |
Pins 3 & 4 closed |
DACK#7 |
Pins 1 & 2 closed |
PARALLEL PORT REQUEST SELECTION |
|
DREQ |
JU104 |
DREQ#3 |
Pins 7 & 8 closed |
DREQ#5 |
Pins 5 & 6 closed |
DREQ#6 |
Pins 3 & 4 closed |
DREQ#7 |
Pins 1 & 2 closed |
