ME 17, ME 18

SHUTTLE COMPUTER INTERNATIONAL, INC.

ME 17, ME 18

Device Type Mainboard
Processor Celeron
Processor Speed 300/333/366/400/433/466/500MHz
Chip Set Intel 810
Video Chip Set Intel 810
Maximum Onboard Memory 512MB (SDRAM supported)
Maximum Video Memory Unidentified
Cache 128KB (located on the Celeron CPU)
BIOS Award
Dimensions 244mm x 170mm
I/O Options 32-bit PCI slots (3), ATX power connector, Audio/Modem Riser slot, Audio in - CD ROM, Auxiliary audio in, Floppy drive interface, Game/MIDI port, IDE interfaces (2), IR connector, Line in, Line out, Microphone in, Parallel port, PS/2 keyboard port, PS/2 mouse port, Serial interface, Serial port, TAD in, USB ports (2), UPT slot, VGA port, Wake-on-LAN connector

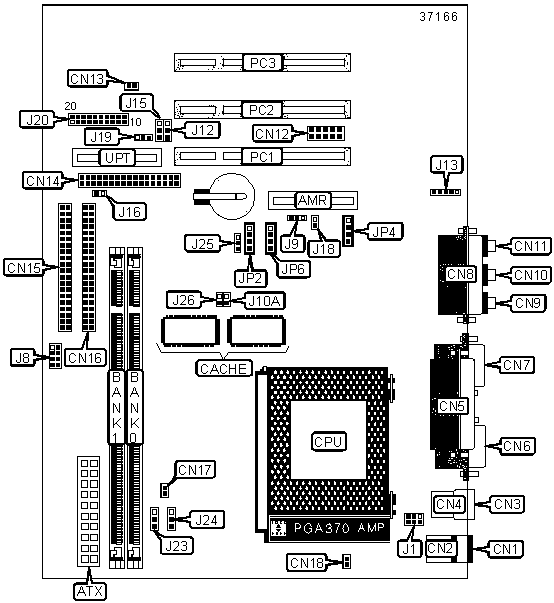

CONNECTIONS

Purpose

Location

Purpose

Location
Audio/modem riser slot AMR IDE interface 2 CN16
ATX power connector ATX System fan power B CN17
PS/2 keyboard port CN1 CPU fan power CN18
PS/2 mouse port CN2 IR connector J13
USB port 1 CN3 Wake-on-LAN connector J19
USB port 2 CN4 Reset switch J20/Pins 1 & 2
Parallel port CN5 IDE interface LED J20/Pins 3 & 4
Serial port CN6 Green PC connector J20/Pins 5 & 6
VGA port CN7 Green PC LED connector J20/Pins 7 & 8
Game/MIDI port CN8 Power switch J20/Pins 9 & 10
Line out CN9 Speaker J20/Pins 11 - 14
Line in CN10 Power LED J20/Pins 18 - 20
Microphone in CN11 Auxiliary audio in JP2
Serial interface CN12 TAD in JP4
System fan power A CN13 Audio in - CD ROM JP6
Floppy drive interface CN14 32-bit PCI slots PC1 - PC3
IDE interface 1 CN15 UPT slot UPT


USER CONFIGURABLE SETTINGS

Function

Label

Position
» Secondary audio/modem riser slot selected J9 Pins 1 & 2 closed
  Primary audio/modem riser slot selected J9 Pins 2 & 3 closed
» 66MHz based processor normal bus speed J10A Closed
  66MHz based processor overclocked to 100MHz J10A Open

»

 CMOS memory normal operation J12 Pins 1 & 2 closed
  CMOS memory clear J12 Pins 2 & 3 closed
» Password normal J15 Pins 1 & 2 closed
  Password clear J15 Pins 2 & 3 closed
» BIOS boot block protection disabled J16 Closed
  BIOS boot block protection enabled J16 Open
» Factory configured - do not alter J18 Open
» Suspend to RAM enabled J23 Pins 2 & 3 closed
  Suspend to RAM disabled J23 Pins 1 & 2 closed
» 3.3V supplied to ICH J25 Pins 1 & 2 closed
  3.9V supplied to ICH J25 Pins 2 & 3 closed
» 100MHz based processor normal bus speed J26 Closed
  100MHz based processor overclocked to 133MHz J26 Open
Note: When overclocking jumper is used, J8 must be set accordingly.
Note: Onboard CODEC must be disabled in BIOS when using primary AMR setting.


DIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(1) 1M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

16MB

(1) 2M x 64

None

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

32MB

(1) 4M x 64

None

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

64MB

(1) 8M x 64

None

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

128MB

(1) 16M x 64

None

136MB

(1) 16M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

256MB

(1) 32M x 64

None

264MB

(1) 32M x 64

(1) 1M x 64

272MB

(1) 32M x 64

(1) 2M x 64

288MB

(1) 32M x 64

(1) 4M x 64

320MB

(1) 32M x 64

(1) 8M x 64

384MB

(1) 32M x 64

(1) 16M x 64

512MB

(1) 32M x 64

(1) 32M x 64
Note: Board supports SDRAM memory.


CACHE CONFIGURATION

Note: 128KB cache is located on Celeron 300A and greater CPUs.


CPU CLOCK SPEED SELECTION

Clock Speed

J8/Pins 1 & 2

 J8/Pins 3 & 4 J8/Pins 5 & 6

J8/Pins 7 & 8
» 66MHz Open Open Open Open


70MHz

 Closed Open Open Open


75MHz

 Closed Closed Closed Closed
  83MHz Closed Closed Closed Open
  90MHz Closed Closed Open Closed
  95MHz Closed Closed Open Open
  100MHz Open Open Closed Open
  105MHz Open Open Open Closed
  114MHz Closed Open Open Closed
  124MHz Open Closed Closed Open
  133MHz Open Closed Open Closed

Note: 140MHz and 150MHz are set in the BIOS.
Note: CPU Host/PCI Clock must be set to default in frequency/voltage control of BIOS if non default setting is used .


POWER-ON BY KEYBOARD/MOUSE SELECTION

Function

J1
» Power-on by mouse enabled Pins 1 & 3, 4 & 6 closed
  Power-on by keyboard enabled Pins 2 & 4, 3 & 5 closed
  Power-on by keyboard/mouse disabled Pins 1 & 3, 2 & 4 closed


CPU CORE VOLTAGE SELECTION

Setting

J24
» Auto detect CPU core voltage Open
  Increase voltage by 2% Pins 1 & 2 closed
  Increase voltage by 5% Pins 2 & 3 closed
