DIVERSIFIED TECHNOLOGY
LBC8530
| Device Type | Single Board Computer |
| Processor | Pentium II (Mobile) |
| Processor Speed | 233/266/300/333/366/400MHz |
| Chip Set | Intel 440BX |
| Video Chip Set | S3, INC. |
| Maximum Onboard Memory | 512MB (EDO & SDRAM supported) |
| Maximum Video Memory | 2MB |
| Cache | 512KB (located on the Pentium II CPU) |
| BIOS | Phoenix |
| Dimensions | 338mm x 107mm |
| I/O Options | Ethernet 10BaseT connectors (2), Flat panel connectors (2), Flash disk socket, Floppy drive interface, IDE interfaces (2), Parallel interface, PS/2 keyboard/mouse port, SCSI interface, Serial interfaces (2), System monitor interface, USB interface, VGA port, Wide Ultra SCSI interface |
| Data Bus | 16-bit ISA/32-bit PCI |

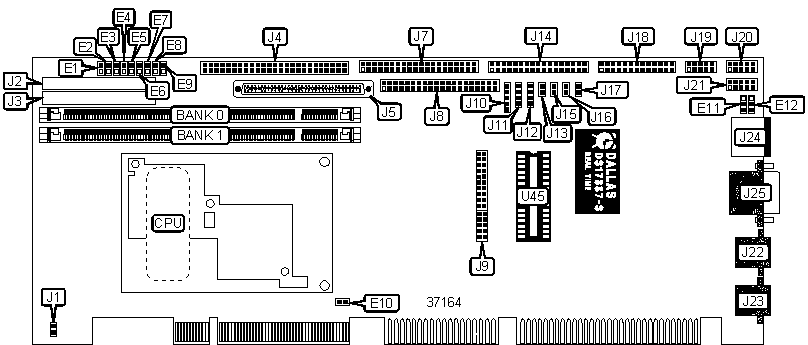

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| CPU fan power | J1 | SCSI interface LED | J15 |
| Flat panel connector A | J2 | IDE interface LED | J16 |
| Flat panel connector B | J3 | IDE interface LED | J17 |
| SCSI interface | J4 | Parallel interface | J18 |
| Wide Ultra SCSI interface | J5 | Serial interface | J19 |
| IDE interface 1 | J7 | Serial interface | J20 |
| IDE interface 2 | J8 | Internal keyboard/mouse interface | J21 |
| System monitor interface | J9 | RJ-45 UTP connector A | J22 |
| Power LED & keylock | J10 | RJ-45 UTP connector B | J23 |
| USB interface | J11 | PS/2 keyboard/mouse mouse port | J24 |
| Speaker | J12 | VGA port | J25 |
| Reset switch | J13 | Flash disk socket | U45 |
| Floppy drive interface | J14 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Mouse (IRQ 12) enabled | E4 | Closed |
| Mouse (IRQ12) disabled | E4 | Open | |
| » | Termination enabled | E5 | Open |
| Termination disabled | E5 | Closed | |
| » | CMOS memory normal operation | E6 | Closed |
| CMOS RAM if manufacturing test mode (E7) is enabled | E6 | Open | |
| » | Manufacturing mode disabled | E7 | Open |
| Manufacturing test mode enabled | E7 | Closed | |
| » | Bracket ground enabled | E8 | Closed |
| Bracket ground disabled | E8 | Open | |
| » | AGP enabled | E9 | Open |
| AGP disabled | E9 | Closed | |
| » | Ultra-SCSI transfer enabled | E10 | Open |
| Ultra-SCSI transfer disabled | E10 | Closed | |
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
256MB |
(1) 32M x 64 |
None |
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports EDO & SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 512KB cache is located on the Pentium II CPU. |
FLAT PANEL RESOLUTION SELECTION |
||||
Setting |
E1 |
E2 | E3 | |
| 640 x 480 TFT | Closed | Closed | Closed | |
| 800 x 600 TFT | Open | Closed | Closed | |
| 1024 x 768 TFT | Closed | Open | Closed | |
| 1280 x 1024 TFT | Open | Open | Closed | |
| 640 x 480 DSTN | Closed | Closed | Open | |
| » | 800 x 600 DSTN | Open | Closed | Open |
| 1024 x 768 DSTN | Closed | Open | Open | |
| 1200 x 1024 DSTN | Open | Open | Open | |
PS/2 KEYBOARD/MOUSE PORT SELECTION |
|||
Setting |
E11 |
E12 | |
| » | PS/2 port (J24) mouse port selected | Pins 2 & 3 closed | Pins 2 & 3 closed |
| PS/2 port (J24) keyboard port selected | Pins 1 & 2 closed | Pins 1 & 2 closed | |
MISCELLANEOUS TECHNICAL NOTES |
| Up to 4 32-bit PCI devices are supported. 16-bit ISA support is provided as well. |
