SEANIX TECHNOLOGY, INC.
PD440FX
| Device Type | Mainboard |
| Processor | Pentium II |
| Processor Speed | 233/266MHz |
| Chip Set | Unidentified |
| Audio Chip Set | Yamaha |
| Maximum Onboard Memory | 256MB |
| Maximum Audio Memory | Unidentified |
| Cache | 256/512KB (located on the CPU) |
| BIOS | AMI |
| Dimensions | Unidentified |
| I/O Options | 16-bit ISA slots (3), 32-bit PCI slots (4), audio in - CD ROM, audio in connector, chassis intrusion connector, floppy drive interface, game/MIDI port, green PC switch, IDE interfaces (4), IR connector, line in, line out, microphone in, parallel port, power connector, PS/2 keyboard port, PS/2 mouse port, serial ports (2), telephony connectors (2), USB ports (2), wavetable connector |

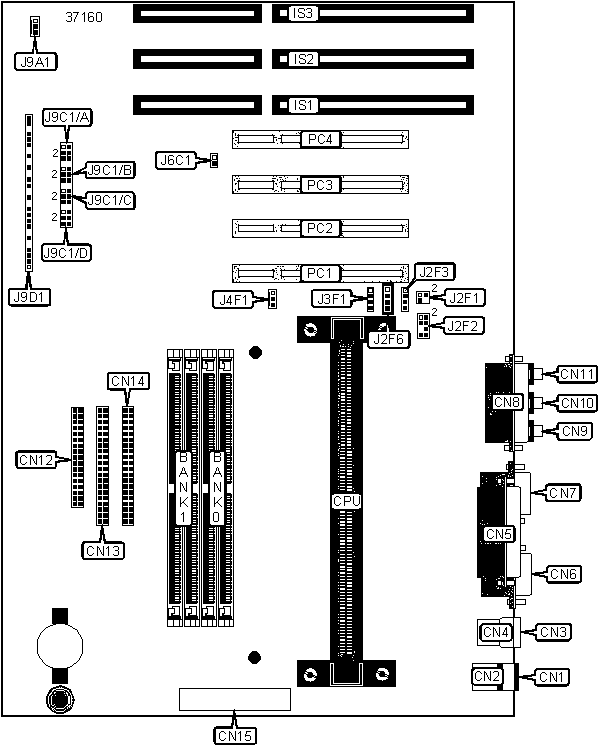

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| PS/2 keyboard port | CN1 | Telephony connector A | J2F1 |
| PS/2 mouse port | CN2 | Wavetable connector | J2F2 |
| USB port 1 | CN3 | Telephony connector B | J2F3 |
| USB port 2 | CN4 | Audio in - CD ROM | J2F6 |
| Parallel port | CN5 | Audio in connector | J3F1 |
| Serial port 1 | CN6 | CPU fan power | J4F1 |
| Serial port 2 | CN7 | Chassis intrusion connector | J6C1 |
| Game/MIDI port | CN8 | System fan power | J9A1 |
| Line out | CN9 | Power switch | J9D1/Pins 1 & 2 |
| Line in | CN10 | Green PC switch | J9D1/Pins 3 & 4 |
| Microphone in | CN11 | IR connector | J9D1/Pins 6 - 11 |
| Floppy drive interface | CN12 | IDE interface LED | J9D1/Pins 13 - 16 |
| IDE interface 1 | CN13 | Power LED | J9D1/Pins18 - 20 |
| IDE interface 2 | CN14 | Reset switch | J9D1/Pins 22 & 23 |
| Power connector | CN15 | Speaker | J9D1/Pins 24 - 27 |
| 16-bit ISA slots | IS1 - IS3 | 32-bit PCI slots | PC1 - PC4 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | BIOS normal operation | J9C1/A | Pins 5 & 6 closed |
| BIOS recovery | J9C1/A | Pins 4 & 5 closed | |
» |
CMOS memory normal operation | J9C1/C | Pins 5 & 6 closed |
| CMOS memory clear | J9C1/C | Pins 4 & 5 closed | |
| » | Password normal | J9C1/D | Pins 2 & 3 closed |
| Password clear | J9C1/D | Pins 1 & 2 closed | |
| » | Access to setup program enabled | J9C1/D | Pins 5 & 6 closed |
| Access to setup program disabled | J9C1/D | Pins 4 & 5 closed | |
| Note: For BIOS recovery: set jumper, insert bootable BIOS upgrade floppy disk and reconnect power to system. Two beeps after process is complete indicates successful recovery. More than 2 beeps indicates unsuccessful recovery. After recovery, disconnect power and reset jumper to original location. | |||
SIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(2) 1M x 36 |
None |
16MB |
(2) 2M x 36 |
None |
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
32MB |
(2) 4M x 36 |
None |
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
64MB |
(2) 8M x 36 |
None |
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
128MB |
(2) 16M x 36 |
None |
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
| Note: Board accepts EDO memory. | ||
CACHE CONFIGURATION |
| Note: 256/512KB cache is located on the Pentium II CPU. |
CPU SPEED SELECTION |
||||
CPU Speed |
Bus Speed |
J9C1/A | J9C1/B | J9C1/C |
| 233MHz | 66MHz | Pins 2 & 3 | Pins 2 & 3, 5 & 6 | Pins 2 & 3 |
| 266MHz | 66MHz | Pins 1 & 2 | Pins 1 & 2, 4 & 5 | Pins 2 & 3 |
Note: Designated pins are in the closed position. |
||||
