SHUTTLE COMPUTER INTERNATIONAL, INC.
HOT-685
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 300/333/350/366/400/433/450/466/500MHz |
| Chip Set | Intel 440BX |
| Audio Chip Set | Forte Media |
| Maximum Onboard Memory | 768MB (SDRAM supported) |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128 (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | 220mm x 230mm |
| I/O Options | 16-bit ISA slot, 32-bit PCI slots (4), AT power connector, ATX power connector, audio in - CD ROM, audio interface, floppy drive interface, game/MIDI interface, IDE interfaces (2), IR connector, keyboard port, parallel port, PS/2 keyboard port (optional), PS/2 mouse interface, PS/2 mouse port (optional), serial interfaces (2), SB-Link connector, TAD connector, USB interface, Wake-on-LAN connector |

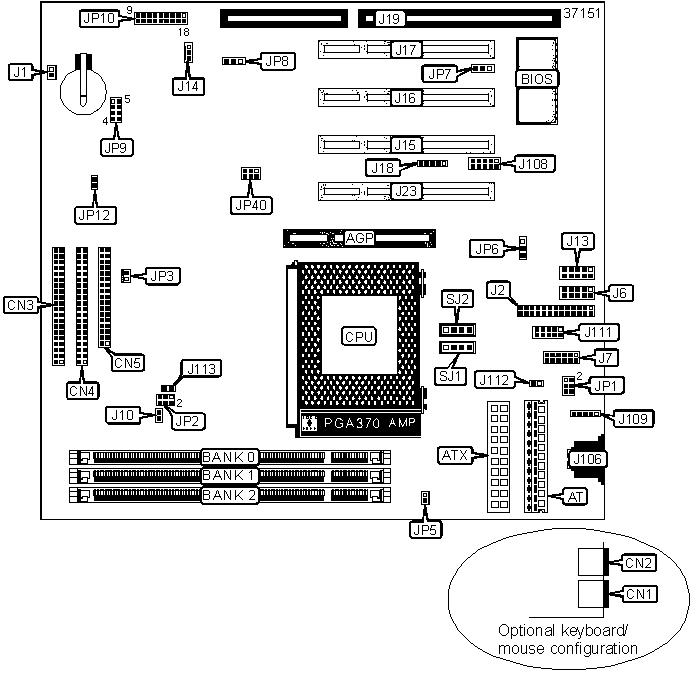

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AT power connector | AT | 32-bit PCI slot | J23 |
| ATX power connector | ATX | Keyboard port | J106 |
| PS/2 keyboard port (optional) | CN1 | USB interface | J108 |
| PS/2 mouse port (optional) | CN2 | PS/2 mouse interface | J109 |
| IDE interface 1 | CN3 | Audio interface | J111 |
| IDE interface 2 | CN4 | System fan power | JP3 |
| Floppy drive interface | CN5 | CPU fan power | JP5 |
| AGP fan power | J1 | IDE interface LED | JP10/Pins 6 & 7 |
| Parallel port | J2 | EPMI connector | JP10/Pins 12 & 13 |
| Serial interface 1 | J6 | Green PC LED connector | JP10/Pins 10 & 11 |
| Game/MIDI interface | J7 | Power switch | JP10/Pins 8 & 9 |
| Serial interface 2 | J13 | Speaker | JP10/Pins 1 - 4 |
| Wake-on-LAN connector | J14 | Power LED | JP10/Pins 14 - 16 |
| 32-bit PCI slot | J15 | Reset switch | JP10/Pins 17 & 18 |
| 32-bit PCI slot | J16 | SB-Link connector | JP40 |
| 32-bit PCI slot | J17 | TAD connector | SJ2 |
| IR connector | J18 | Audio in - CD ROM | SJ1 |
| 16-bit ISA slot | J19 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | 66MHz based processor normal bus speed | J10 | Closed |
| 66MHz based processor overclocked to 100MHz | J10 | Open | |
| AT power connector enabled | J112 | Closed | |
| ATX power connector enabled | J112 | Open | |
| » | Onboard sound enabled | JP6 | Pins 1 & 2 closed |
| Onboard sound disabled | JP6 | Pins 2 & 3 closed | |
| Flash EEPROM BIOS chip is 12V | JP7 | Pins 2 & 3 closed | |
| Flash EEPROM BIOS chip is 5V | JP7 | Pins 1 & 2 closed | |
» |
CMOS memory normal operation | JP8 | Pins 1 & 2 closed |
| CMOS memory clear | JP8 | Pins 2 & 3 closed | |
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 128KB cache is located on Celeron 300A and greater CPUs. |
CPU SPEED SELECTION |
|||||
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP9 |
JP113 |
300MHz |
66MHz |
4.5x |
Pins 5 & 6 | Pins 2 & 6, 3 & 7 | Closed |
333MHz |
66MHz |
5.0x |
Pins 5 & 6 | Pins 3 & 7, 4 & 8 | Closed |
350MHz |
100MHz |
3.5x |
Open | Pins 1 & 5, 3 & 7 | Closed |
| 366MHz | 66MHz |
5.5x |
Pins 5 & 6 | Pins 3 & 7 | Closed |
| 400MHz | 66MHz | 6.0x | Pins 5 & 6 | Pins 1 & 5, 2 & 6, 4 & 8 | Closed |
| 400MHz | 100MHz | 4.0x | Open | Pins 2 & 6, 3 & 7, 4 & 8 | Closed |
| 433MHz | 66MHz | 6.5x | Pins 5 & 6 | Pins 1 & 5, 2 & 6 | Closed |
| 450MHz | 100MHz | 4.5x | Open | Pins 2 & 6, 3 & 7 | Closed |
| 466MHz | 66MHz | 7.0x | Pins 5 & 6 | Pins 1 & 5, 4 & 8 | Closed |
| 500MHz | 66MHz | 7.5x | Pins 5 & 6 | Pins 1 & 5 | Closed |
| 500MHz | 100MHz | 5.0x | Open | Pins 3 & 7, 4 & 8 | Closed |
Note: Designated pins should be in the closed position. |
|||||
POWER-ON BY KEYBOARD/MOUSE SELECTION |
|
Function |
JP1 |
| Power-on by keyboard/mouse disabled | Pins 3 & 5, 4 & 6 closed |
| Power-on by keyboard/mouse enabled | Pins 1 & 3, 2 & 4 closed |
| Power-on by mouse enabled | Pins 2 & 4, 3 & 5 closed |
| Power-on by keyboard enabled | Pins 1 & 3, 4 & 6 closed |
