SHUTTLE COMPUTER INTERNATIONAL, INC.

HOT-687Z
Device Type Mainboard
Processor Celeron
Processor Speed 300/333/350/366/400/433/450/466/500MHz
Chip Set Intel 440ZX
Audio Chip Set Forte Media
Maximum Onboard Memory 512MB (SDRAM supported)
Maximum Audio Memory Unidentified
Cache 0/128 (located on the Celeron CPU)
BIOS Award
Dimensions 244mm x 190mm
I/O Options 16-bit ISA slot, 32-bit PCI slots (3), ATX power connector, audio in - CD ROM, floppy drive interface, game/MIDI port, IDE interfaces (2), IR connector, line in, line out, microphone in, parallel port, PS/2 keyboard port, PS/2 mouse port, serial ports (2), SB-Link connector, TAD connector, USB ports (2), Wake-on-LAN connector

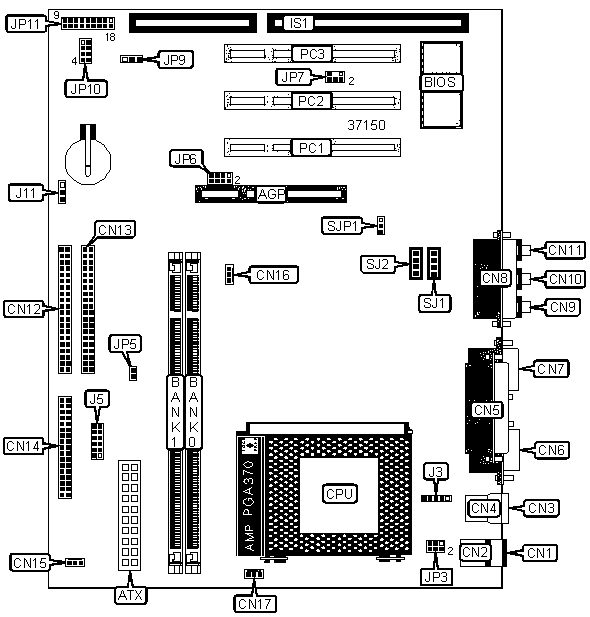

CONNECTIONS

Purpose

Location

Purpose

Location
ATX power connector ATX AGP fan power CN16
PS/2 keyboard port CN1 CPU fan power CN17
PS/2 mouse port CN2 16-bit ISA slot IS1
USB port 1 CN3 IR connector J3
USB port 2 CN4 Wake-on-LAN connector J11
Parallel port CN5 IDE interface LED JP11/Pins 2 & 3
Serial port 2 CN6 Green PC connector JP11/Pins 4 & 5
Serial port 1 CN7 Green PC LED connector JP11/Pins 6 & 7
Game/MIDI port CN8 Power switch JP11/Pins 8 & 9
Line out CN9 Speaker JP11/Pins 10 - 13
Line in CN10 Power LED JP11/Pins 14 - 16
Microphone in CN11 Reset switch JP11/Pins 17 & 18
IDE interface 1 CN12 SB-Link connector JP7
IDE interface 2 CN13 32-bit PCI slots PC1 - PC3
Floppy drive interface CN14 TAD connector SJ1
System fan power CN15 Audio in - CD ROM SJ2


USER CONFIGURABLE SETTINGS

Function

Label

Position
» 66MHz based processor normal bus speed JP5 Closed
  66MHz based processor overclocked to 100MHz JP5 Open

»

 CMOS memory normal operation JP9 Pins 1 & 2 closed
  CMOS memory clear JP9 Pins 2 & 3 closed
  Onboard sound enabled SJP1 Pins 1 & 2 closed
  Onboard sound disabled SJP1 Pins 2 & 3 closed


DIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(1) 1M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

16MB

(1) 2M x 64

None

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

32MB

(1) 4M x 64

None

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

64MB

(1) 8M x 64

None

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

128MB

(1) 16M x 64

None

136MB

(1) 16M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

256MB

(1) 32M x 64

None

264MB

(1) 32M x 64

(1) 1M x 64

272MB

(1) 32M x 64

(1) 2M x 64

288MB

(1) 32M x 64

(1) 4M x 64

320MB

(1) 32M x 64

(1) 8M x 64

384MB

(1) 32M x 64

(1) 16M x 64

512MB

(1) 32M x 64

(1) 32M x 64
Note: Board supports SDRAM memory.


CACHE CONFIGURATION

Note: 128KB cache is located on Celeron 300A and greater CPUs.


CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

JP6

JP10

300MHz

66MHz

4.5x

 Pins 5 & 6, 7 & 8 Pins 2 & 6, 3 & 7
300MHz 100MHz 3.0x Pins 7 & 8 Pins 1 & 5, 3 & 7, 4 & 8

333MHz

66MHz

5.0x

 Pins 5 & 6, 7 & 8 Pins 3 & 7, 4 & 8

350MHz

100MHz

3.5x

 Pins 7 & 8 Pins 1 & 5, 3 & 7
366MHz

66MHz

5.5x

 Pins 5 & 6, 7 & 8 Pins 3 & 7
400MHz 66MHz 6.0x Pins 5 & 6, 7 & 8 Pins 1 & 5, 2 & 6, 4 & 8
400MHz 100MHz 4.0x Pins 7 & 8 Pins 2 & 6, 3 & 7, 4 & 8
433MHz 66MHz 6.5x Pins 5 & 6, 7 & 8 Pins 1 & 5, 2 & 6
450MHz 100MHz 4.5x Pins 7 & 8 Pins 2 & 6, 3 & 7
466MHz 66MHz 7.0x Pins 5 & 6, 7 & 8 Pins 1 & 5, 4 & 8
500MHz 66MHz 7.5x Pins 5 & 6, 7 & 8 Pins 1 & 5
500MHz 100MHz 5.0x Pins 7 & 8 Pins 3 & 7, 4 & 8

Note: Designated pins should be in the closed position.


POWER-ON BY KEYBOARD/MOUSE SELECTION

Function

JP3
Power-on by keyboard/mouse disabled Pins 3 & 5, 4 & 6 closed
Power-on by keyboard/mouse enabled Pins 1 & 3, 4 & 6 closed
Power-on by mouse enabled Pins 2 & 4, 3 & 5 closed
