DELTA PRODUCTS CORPORATION
MP2-EX-MX
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 233/266/300/333MHz |
| Chip Set | Intel 440EX |
| Maximum Onboard Memory | 256MB (SDRAM supported) |
| Cache | 0/128KB (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | 244mm x 200mm |
| I/O Options | 16-bit ISA slots (2),32-bit PCI slots (2), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial ports (2), USB ports (2), ATX power connector, AGP slot, Wake-on-LAN connector, SB-Link connector |

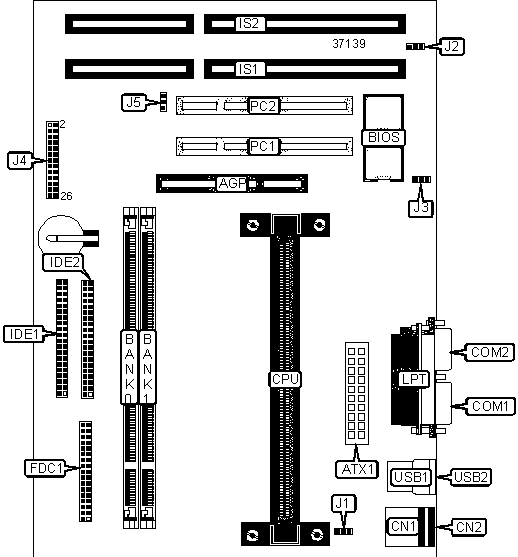

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Wake-on-LAN connector | J3 |
| ATX power connector | ATX1 |
Power switch | J4/Pins 1 & 2 |
| PS/2 mouse port | CN1 | Reset switch | J4/Pins 5 & 6 |
| PS/2 keyboard port | CN2 | IDE interface LED | J4/Pins 7 & 8 |
| Serial port 1 | COM1 | Green PC connector | J4/Pins 13 & 14 |
| Serial port 2 | COM2 | Power LED & keylock | J4/Pins 18,20,22,24 & 26 |
| Floppy drive interface | FDC1 | Speaker | J4/Pins 19, 21, 23 & 25 |
| IDE interface 1 | IDE1 | SB-Link connector | J5 |
| IDE interface 2 | IDE2 | Parallel port | LPT |
| 16-bit ISA slots | IS1 - IS2 | 32-bit PCI slots | PC1 - PC2 |
| CPU fan power | J1 | USB port 1 | USB1 |
| Chassis fan power | J2 | USB port 2 | USB2 |
| DIMM CONFIGURATION | ||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A and greater version A CPUs. |
