DELTA PRODUCTS CORPORATION
MP2-VBX-X
| Device Type | Mainboard |
| Processor | Pentium II/Celeron/Pentium III |
| Processor Speed | 233/266/300/333/350/366/400/433/450/466/500MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 384MB (SDRAM supported) |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 305mm x 178mm |
| I/O Options | 16-bit ISA slots (2),32-bit PCI slots (5), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial ports (2), USB ports (2), ATX power connector, AGP slot, Wake-on-LAN connector, SB-Link connector |

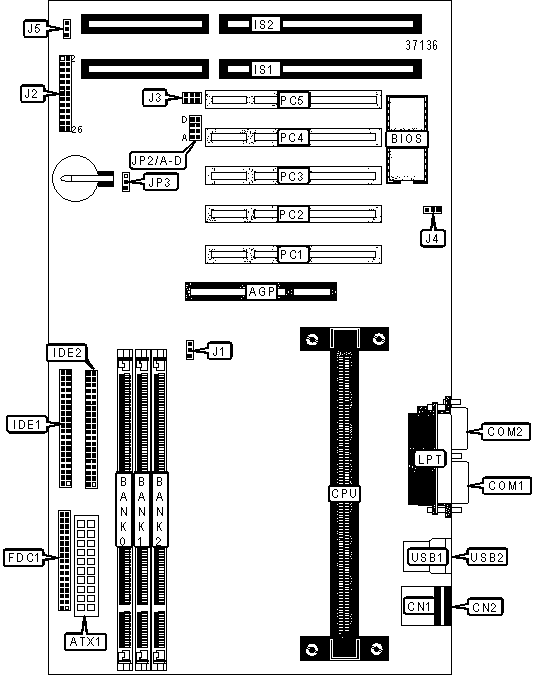

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Reset switch | J2/Pins 5 & 6 |
| ATX power connector | ATX1 |
IDE interface LED | J2/Pins 7 & 8 |
| PS/2 mouse port | CN1 | Green PC connector | J2/Pins 13 & 14 |
| PS/2 keyboard port | CN2 | Power LED & keylock | J2/Pins 18,20,22,24 & 26 |
| Serial port 1 | COM1 | Speaker | J2/Pins 19, 21, 23 & 25 |
| Serial port 2 | COM2 | SB-Link connector | J3 |
| Floppy drive interface | FDC1 | Wake-on-LAN connector | J4 |
| IDE interface 1 | IDE1 | Chassis fan power | J5 |
| IDE interface 2 | IDE2 | Parallel port | LPT |
| 16-bit ISA slots | IS1 - IS2 | 32-bit PCI slots | PC1 - PC5 |
| CPU fan power | J1 | USB port 1 | USB1 |
| Power switch | J2/Pins 1 & 2 | USB port 2 | USB2 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP3 |
Pins 1 & 2 closed |
| CMOS memory clear | JP3 |
Pins 2 & 3 closed |
|
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 512KB cache is located on the Pentium III CPUs. 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
CPU SPEED SELECTION (PENTIUM CELERON) |
|||||
CPU speed |
Multiplier |
JP2/A |
JP2/B | JP2/C |
JP2/D |
| 266MHz | 4x |
Open | Closed | Closed | Closed |
| 300MHz | 4.5x | Open | Closed | Open | Closed |
CPU SPEED SELECTION (PENTIUM II) |
|||||
CPU speed |
Multiplier |
JP2/A |
JP2/B | JP2/C |
JP2/D |
| 233MHz | 3.5x | Closed | Open | Open | Closed |
| 266MHz | 4x |
Open | Closed | Closed | Closed |
| 300MHz | 4.5x | Open | Closed | Open | Closed |
| 333MHz | 5x | Open | Open | Closed | Closed |
| 350MHz | 3.5x | Closed | Open | Open | Closed |
| 400MHz | 4x | Open | Closed | Closed | Closed |
| 450MHz | 4.5x | Open | Closed | Open | Closed |
CPU SPEED SELECTION (PENTIUM III) |
|||||
CPU speed |
Multiplier |
JP2/A |
JP2/B | JP2/C |
JP2/D |
| 450MHz | 4.5x | Open | Closed | Open | Closed |
