DELTA PRODUCTS CORPORATION

MP2-BX-X
Device Type Mainboard
Processor Pentium II/Celeron/Pentium III
Processor Speed 233/266/300/333/350/366/400/433/450/466/500/550/600MHz
Chip Set Intel 440BX
Maximum Onboard Memory 384MB (SDRAM supported)
Cache 0/128/256/512KB (located on the CPU)
BIOS Award
Dimensions 305mm x 178mm
I/O Options 16-bit ISA slots (2),32-bit PCI slots (5), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial ports (2), USB ports (2), ATX power connector, AGP slot, Wake-on-LAN connector, SB-Link connector

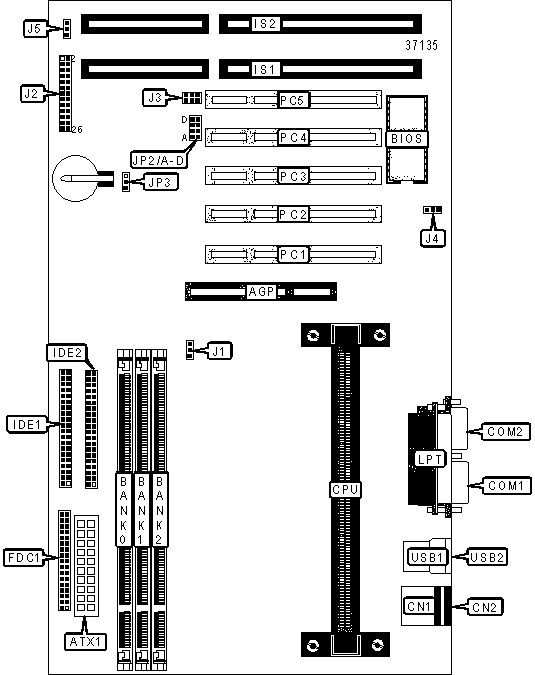

CONNECTIONS

Purpose

Location

Purpose

Location

AGP slot

AGP

Reset switch J2/Pins 5 & 6
ATX power connector

ATX1

 IDE interface LED J2/Pins 7 & 8
PS/2 mouse port CN1 Green PC connector J2/Pins 13 & 14
PS/2 keyboard port CN2 Power LED & keylock J2/Pins 18,20,22,24 & 26
Serial port 1 COM1 Speaker J2/Pins 19, 21, 23 & 25
Serial port 2 COM2 SB-Link connector J3
Floppy drive interface FDC1 Wake-on-LAN connector J4
IDE interface 1 IDE1 Chassis fan power J5
IDE interface 2 IDE2 Parallel port LPT
16-bit ISA slots IS1 - IS2 32-bit PCI slots

PC1 - PC5
CPU fan power J1 USB port 1 USB1
Power switch J2/Pins 1 & 2 USB port 2 USB2


USER CONFIGURABLE SETTINGS

Function

Label

Position

»

 CMOS memory normal operation

JP3

Pins 1 & 2 closed
  CMOS memory clear

JP3

Pins 2 & 3 closed


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

8MB

(1) 1M x 64

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

16MB

(1) 2M x 64

None

None

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

None

32MB

(1) 4M x 64

None

None

32MB

(1) 2M x 64

(1) 1M x 64

(1) 1M x 64

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

48MB

(1) 4M x 64

(1) 1M x 64

(1) 1M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

80MB

(1) 8M x 64

(1) 1M x 64

(1) 1M x 64

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

96MB

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

144MB

(1) 16M x 64

(1) 1M x 64

(1) 1M x 64

160MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

192MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

256MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64
Note:  Board supports SDRAM memory.


CACHE CONFIGURATION

Note:  512KB cache is located on the Pentium III CPUs.  256KB/512KB cache is located on the Pentium II CPUs.  128KB cache is located on the Celeron 300A and greater CPUs.


CPU SPEED SELECTION (PENTIUM CELERON)

CPU speed

Multiplier

JP2/A

 JP2/B

JP2/C

JP2/D
266MHz

4x

 Open Closed Closed Closed
300MHz 4.5x Open Closed Open Closed
333MHz 5x Open Open Closed Closed
366MHz 5.5x Open Open Open Closed
400MHz 6x Closed Closed Closed Open
433MHz 6.5x Closed Closed Open Open
466MHz 7x Closed Open Closed Open
500MHz 5x Open Open Closed Closed


CPU SPEED SELECTION (PENTIUM II)

CPU speed

Multiplier

JP2/A

 JP2/B

JP2/C

JP2/D
233MHz 3.5x Closed Open Open Closed
266MHz

4x

 Open Closed Closed Closed
300MHz 4.5x Open Closed Open Closed
333MHz 5x Open Open Closed Closed
350MHz 3.5x Closed Open Open Closed
400MHz 4x Open Closed Closed Closed
450MHz 4.5x Open Closed Open Closed


CPU SPEED SELECTION (PENTIUM III)

CPU speed

Multiplier

JP2/A

 JP2/B

JP2/C

JP2/D
450MHz 4.5x Open Closed Open Closed
500MHz 5x Open Open Closed Closed
550MHz 5.5x Open Open Open Closed
600MHz 6x Closed Closed Closed Open
