ADVANTECH CO., LTD.
PPC-102T
| Device Type | Mainboard |
| Processor | AM K5/AM K6/Pentium/Pentium MMX |
| Processor Speed | 75/90/100/120/133/150/166/200/233MHz |
| Chip Set | SIS |
| Video Chip Set | Chips & Technology |
| Audio Chip Set | ESS |
| Maximum Onboard Memory | 128MB (EDO supported) |
| Maximum Video Memory | 2MB |
| Maximum Audio Memory | Unidentified |
| Maximum Resolution | 800 x 600 |
| Cache | 256KB |
| BIOS | Award |
| Dimensions | 342mm x 265mm |
| I/O Options | 8-bit ISA slot, IDE interface, Floppy Drive/IDE interface, serial interfaces (4), Watchdog timer connector |

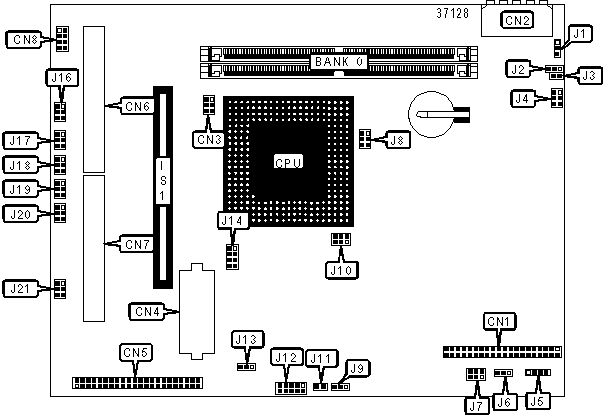

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| IDE interface 1 | CN1 | Auxiliary power | CN8 |
| Main power connector | CN2 |
8-bit ISA slot | IS1 |
| Fan power | CN3 | LCD back light connector | J1 |
| Floppy drive/IDE interface 2 connector | CN4 | VEE control | J5 |
| LCD connector | CN5 | Touchscreen power | J11 |
| I/O connector (A) | CN6 | Touchscreen serial interface | J12 |
| I/O connector (B) | CN7 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | J2 |
Pins 1 & 2 closed |
| CMOS memory clear | J2 |
Pins 2 & 3 closed |
|
» |
Cache linear mode disabled | J3 |
Open |
| Cache linear mode enabled | J3 |
Closed |
|
| » | Watchdog timer activates system reset upon CPU halt | J6 |
Pins 1 & 2 closed |
| Watchdog timer generates interrupt on IRQ15 upon CPU halt | J6 |
Pins 2 & 3 closed |
|
» |
Pentium MMX selected | J10 | Pins 1 & 3, 2 & 4 closed |
| Pentium selected | J10 | Pins 3 & 5, 4 & 6 closed | |
» |
LCD power at 5V | J13 | Pins 1 & 2 closed |
| LCD power at 3.3V | J13 | Pins 2 & 3 closed | |
SIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(2) 1M x 36 |
None |
16MB |
(2) 2M x 36 |
None |
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
32MB |
(2) 4M x 36 |
None |
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
64MB |
(2) 8M x 36 |
None |
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
CPU SPEED SELECTION (AM K5) |
||||
CPU speed |
Clock speed |
Multiplier |
J8 | J15 |
75MHz |
50MHz |
1.5x |
Open | 1 & 2, 5 & 6 |
90MHz |
60MHz |
1.5x |
Open | 1 & 2, 3 & 4 |
| 100MHz | 66MHz | 1.5x | Open | 3 & 4 |
| 120MHz | 66MHz | 2x | 5 & 6 | 3 & 4 |
| 133MHz | 66MHz | 2x | 5 & 6 | 3 & 4 |
| 150MHz | 60MHz | 2.5x | 3 & 4, 5 & 6 | 1 & 2, 3 & 4 |
| 166MHz | 66MHz | 2.5x | 3 & 4, 5 & 6 | 3 & 4 |
| Note: Pins designated should be in the closed position. | ||||
CPU SPEED SELECTION (AM K6) |
||||
CPU speed |
Clock speed |
Multiplier |
J8 | J15 |
| 166MHz | 66MHz | 2.5x | 3 & 4, 5 & 6 | 3 & 4 |
| 200MHz | 66MHz | 3x | 3 & 4 | 3 & 4 |
| 233MHz | 66MHz | 3.5x | Open | 3 & 4 |
| Note: Pins designated should be in the closed position. | ||||
CPU SPEED SELECTION (PENTIUM) |
||||
CPU speed |
Clock speed |
Multiplier |
J8 | J15 |
75MHz |
50MHz |
1.5x |
Open | 1 & 2, 5 & 6 |
90MHz |
60MHz |
1.5x |
Open | 1 & 2, 3 & 4 |
| 100MHz | 66MHz | 1.5x | Open | 3 & 4 |
| 120MHz | 66MHz | 2x | 5 & 6 | 3 & 4 |
| 133MHz | 66MHz | 2x | 5 & 6 | 3 & 4 |
| 150MHz | 60MHz | 2.5x | 3 & 4, 5 & 6 | 1 & 2, 3 & 4 |
| 166MHz | 66MHz | 2.5x | 3 & 4, 5 & 6 | 3 & 4 |
| 180MHz | 66MHz | 3x | 3 & 4 | 3 & 4 |
| 200MHz | 66MHz | 3x | 3 & 4 | 3 & 4 |
| Note: Pins designated should be in the closed position. | ||||
CPU SPEED SELECTION (PENTIUM MMX) |
||||
CPU speed |
Clock speed |
Multiplier |
J8 | J15 |
| 166MHz | 66MHz | 2.5x | 3 & 4, 5 & 6 | 3 & 4 |
| 200MHz | 66MHz | 3x | 3 & 4 | 3 & 4 |
233MHz |
66MHz |
3.5x |
Open | 3 & 4 |
| Note: Pins designated should be in the closed position. | ||||
PCI SPEED SELECTION |
||
PCI speed |
J4 |
|
30MHz |
Pins 1 & 2 closed | |
32MHz |
Pins 3 & 4, 5 & 6 closed | |
33.3MHz |
Pins 1 & 2, 3 & 4 closed | |
| » | 33.3MHz |
Open |
| Note: Default PCI speed is used with system at 66MHz bus, instead of 50MHz. | ||
DOC 2000 MEMORY ADDRESS SELECTION |
||||
Address |
J7/Pins 1 & 2 | J7/Pins 3 & 4 | J7/Pins 5 & 6 | |
| Disable | Open | Open | Open | |
| C8000 | Closed | Closed | Closed | |
| CC00 | Open | Closed | Closed | |
| » | D000 | Closed | Open | Closed |
| D400 | Open | Open | Closed | |
| D800 | Closed | Closed | Open | |
| DC00 | Open | Closed | Open | |
| E000 | Closed | Open | Open | |
CPU VOLTAGE SELECTION (DUAL) |
|||||
Voltage |
J14/Pins 1 & 2 | J14/Pins 3 & 4 | J14/Pins 5 & 6 | J14/Pins 7 & 8 | |
| 2.1V | Open | Open | Open | Open | |
| 2.2V | Closed | Open | Open | Open | |
| 2.3V | Open | Closed | Open | Open | |
| 2.4V | Closed | Closed | Open | Open | |
| 2.5V | Open | Open | Closed | Open | |
| 2.6V | Closed | Open | Closed | Open | |
| 2.7V | Open | Closed | Closed | Open | |
| » | 2.8V | Closed | Closed | Closed | Open |
| 2.9V | Open | Open | Open | Closed | |
| 3V | Closed | Open | Open | Closed | |
| 3.1V | Open | Closed | Open | Closed | |
| 3.2V | Closed | Closed | Open | Closed | |
| 3.4V | Closed | Open | Closed | Closed | |
| 3.6V | Closed | Closed | Closed | Closed | |
CPU VOLTAGE SELECTION (SINGLE) |
|||||
Voltage |
J14/Pins 1 & 2 | J14/Pins 3 & 4 | J14/Pins 5 & 6 | J14/Pins 7 & 8 | |
| 3.3V | Open | Open | Closed | Closed | |
| 3.5V | Open | Closed | Closed | Closed | |
COM3/COM4 IRQ SELECTION |
||
Setting |
J21 | |
| » | COM3 enabled, COM4 enabled |
Pins 2 & 4, 3 & 5 closed |
COM3 disabled, COM4 disabled |
Open | |
COM3 enabled, COM4 disabled |
Pins 2 & 4 closed | |
COM3 disabled, COM4 enabled |
Pins 3 & 5 closed | |
COM 3 VOLTAGE SELECTION |
||
Setting |
J17 | |
| » | RI |
Pins 5 & 6 closed |
+5V |
Pins 1 & 2 closed | |
+12V |
Pins 3 & 4 closed | |
COM 4 VOLTAGE SELECTION |
||
Setting |
J16 | |
| » | RI |
Pins 5 & 6 closed |
+5V |
Pins 1 & 2 closed | |
+12V |
Pins 3 & 4 closed | |
COM 2 PORT SELECTION |
||||
Setting |
J18 | J19 | J20 | |
| » | RS-232 |
1 & 2 | 1 & 3, 2 & 4 | 1 & 3, 2 & 4 |
RS-422 |
3 & 4 | 1 & 3, 2 & 4 | 1 & 3, 2 & 4 | |
RS-485 |
5 & 6 | 1 & 3, 2 & 4 | 1 & 3, 2 & 4 | |
| Note: Pins designated should be in the closed position. | ||||
