ACER, INC.
ACERNOTE 970
| Device Type | Mainboard (Notebook) |
| Processor | Pentium |
| Processor Speed | 133/150MHz |
| Chip Set | Unidentified |
| Video Chip Set | Unidentified |
| Audio Chip Set | Unidentified |
| Maximum Onboard Memory | 64MB |
| Maximum Video Memory | 1.1MB |
| Maximum Audio Memory | Unidentified |
| Cache | 256/512KB |
| BIOS | Unidentified |
| Dimensions | 313mm x 240mm x 53mm |
| I/O Options | Floppy drive/CD-ROM interface, IDE interface, parallel port, PS/2 mouse/keyboard port, serial port, VGA port, IR connector, line in, line out, Multimedia connector, microphone in, DC-DC converter, Debug port |

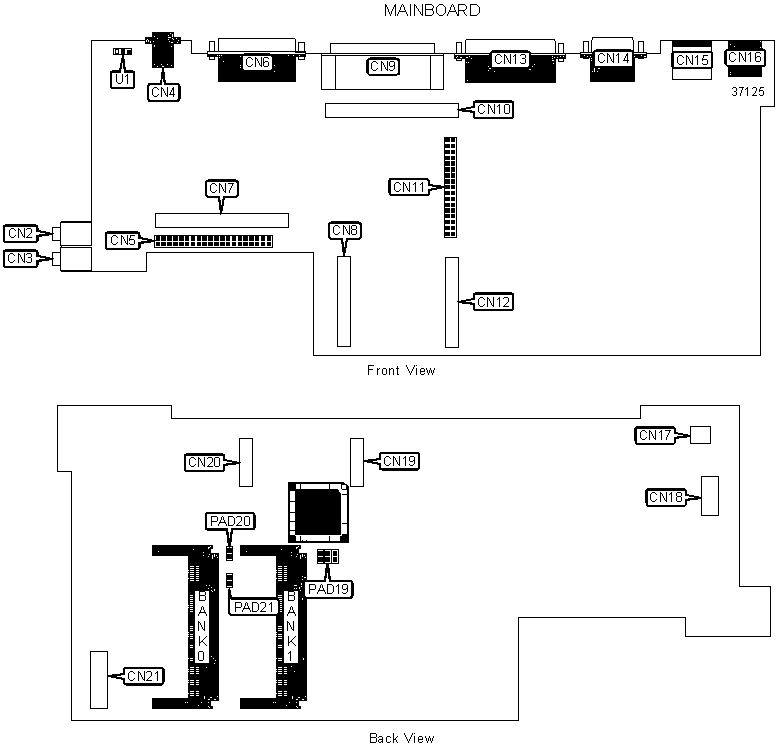

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Microphone/Line in | CN2 | Serial port | CN14 |
| Speaker/Line out | CN3 | PS/2 mouse/keyboard port | CN15 |
| IDE interface | CN5 | Left speaker | CN17 |
| VGA port | CN6 | Debug port | CN18 |
| Multimedia board connector 1 | CN7 | DC-DC converter connector 1 | CN19 |
| CPU board connector 1 | CN8 | DC-DC converter connector 2 | CN20 |
| Multimedia board connector 2 | CN10 | Battery connector | CN21 |
| Floppy drive/CD-ROM interface | CN11 | Right speaker | CN23 |
| CPU board connector 2 | CN12 | Reset switch | SW1 |
| Parallel port | CN13 | IR connector LED | U1 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| Keyboard type Japan select | PAD19 |
Closed |
|
| Keyboard type Other select | PAD19 |
Open |
|
| Acer BIOS type select | PAD20 |
Open |
|
| OEM BIOS type select | PAD20 |
Closed |
|
| Password enabled | PAD21 | Open |
|
| Password disabled | PAD21 | Closed |
|
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 4M x 64 |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |

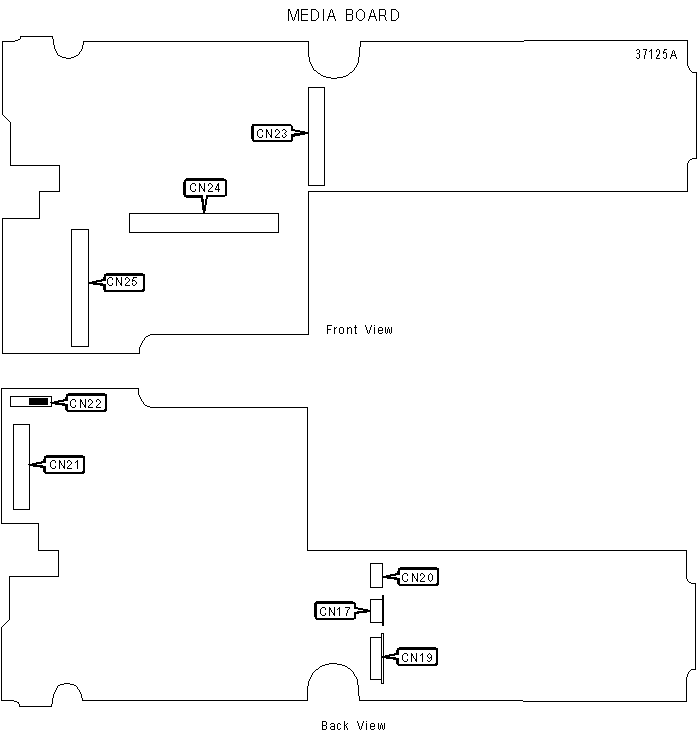

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Keyboard connector 1 | CN17 | Lid switch | CN22 |
| Keyboard connector 2 | CN19 | Mainboard connector 1 | CN23 |
| Touchpad connector | CN20 | PCMCIA socket connector | CN24 |
| LCD connector | CN21 | Mainboard connector 2 | CN25 |
