ACER, INC.

ACERNOTE 350P
Device Type Mainboard (Notebook)
Processor Pentium
Processor Speed 75/100/120MHz
Chip Set Unidentified
Video Chip Set Unidentified
Audio Chip Set Unidentified
Maximum Onboard Memory 40MB (EDO supported)
Maximum Video Memory 1MB
Maximum Audio Memory Unidentified
Maximum Video Resolution 1024 x 768
BIOS Unidentified
Dimensions 297mm x 215mm x 47mm
I/O Options Floppy drive interface, IDE interface, parallel port, PS/2 mouse/keyboard/keypad port, serial port, line in, line out, microphone in, External CRT port, Touchpad connector, PCMCIA connector

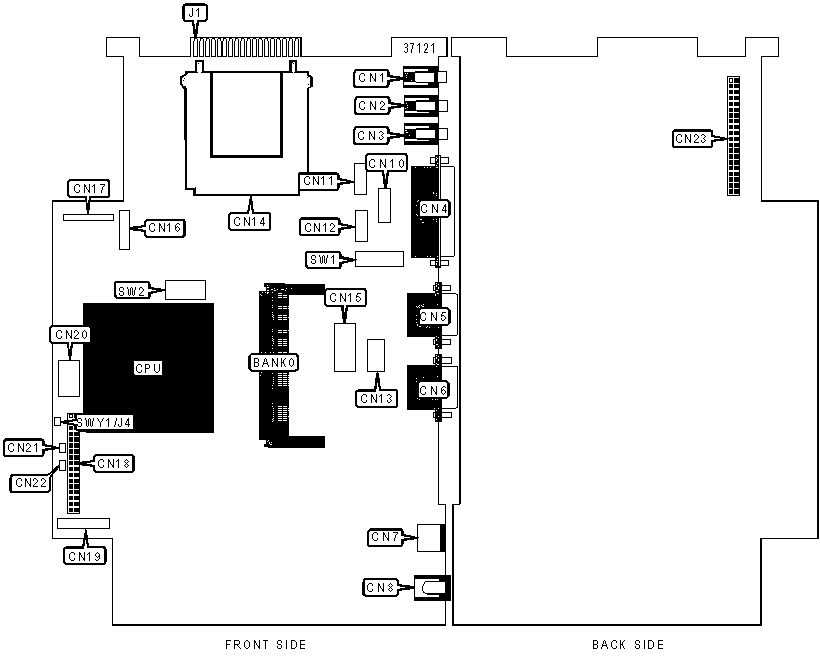

CONNECTIONS

Purpose

Location

Purpose

Location

Line out CN1 PCMCIA socket CN14
Microphone in CN2 LCD signal connector CN15
Line in CN3 Battery board connector CN16
Parallel port CN4 DC-DC converter CN17
Serial port CN5 Floppy drive interface CN18
External CRT port CN6 Charger connector CN19
PS/2 mouse/keyboard/keypad port CN7 Touchpad CN20
Power adapter connector CN8 Speaker CN21
LED board connector CN10 Buzzer CN22
Keyboard interface 1 CN11 IDE interface CN23
Keyboard interface 1 CN12 Golden Finger for Debug Card J1
LCD inverter/contrast board connector CN13


USER CONFIGURABLE SETTINGS

Function

Label

Position

»

 Factory configured - do not alter

SW1

Unidentified

»

 Factory configured - do not alter

SW2

Unidentified


DIMM CONFIGURATION

Size

Onboard

Bank 0

8MB

(1) 1M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

16MB

(1) 2M x 64

None

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

32MB

(1) 4M x 64

None

40MB

(1) 4M x 64

(1) 1M x 64
Note:   Board supports EDO memory.


CPU VOLTAGE SELECTION

Voltage

 SWY1/1 SWY1/2
2.9V Off Off
3.1V Off On
3.1V On Off
3.3V On On


CPU VOLTAGE SELECTION

Voltage

 J4
2.9V Open
3.1V Closed
