TMC RESEARCH CORPORATION
CI7BP (VER. 1.0)
| Device Type | Single Board Computer |
| Processor | Celeron |
| Processor Speed | 300/333/366/400/433/466/500Mhz |
| Chip Set | Intel 440BX |
| Video Chip Set | Chips and Technology |
| Maximum Onboard Memory | 256MB (SDRAM supported) |
| Maximum Video Memory | 2MB (SDRAM supported) |
| Cache | 128KB |
| BIOS | Award |
| Dimensions | 185mm x 129mm |
| I/O Options | Ethernet 10BaseT connector, Flat panel display connectors (2), Floppy drive interface, IDE interfaces (2), IR connector, Parallel port, PS/2 keyboard interface, PS/2 mouse interface, Serial ports (2), USB ports (2), VGA port |

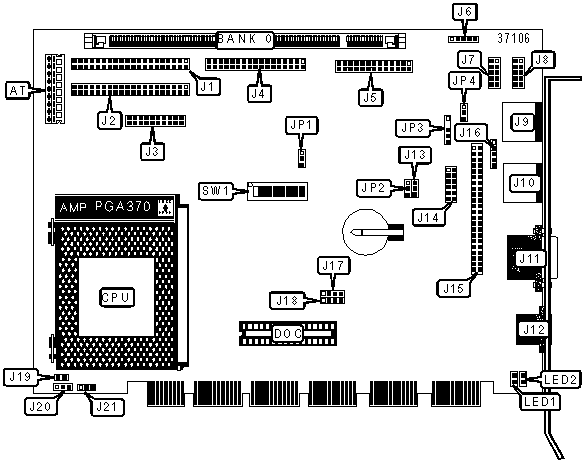

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AT power connector | AT | PS/2 keyboard port | J9 |
| DiskOnChip socket | DOC | PS/2 mouse port | J10 |
| IDE interface 1 | J1 | VGA port | J11 |
| IDE interface 2 | J2 | Ethernet RJ45 connector | J12 |
| Speaker | J3/Pins 1 - 4 | ATX power interface | J13 |
| Green PC switch | J3/Pins 6 & 16 | Flat panel display connector 1 | J14 |
| ATX power switch | J3/Pins 7 & 17 | Flat panel display connector 2 | J15 |
| Turbo LED | J3/Pins 8 & 18 | Unidentified | J16 |
| Reset switch | J3/Pins 9 & 19 | USB interface 1 | J17 |
| IDE interface LED | J3/Pins 10 & 20 | USB interface 2 | J18 |
| Power LED & keylock | J3/Pins 11 - 15 | Unidentified | J19 |
| Floppy drive interface | J4 | CPU fan power | J20 |
| Parallel interface | J5 | Chassis fan power | J21 |
| PS/2 keyboard interface | J6 | IR connector | JP3 |
| Serial port 1 | J7 | LED connector 1 | LED1 |
| Serial port 2 | J8 | LED connector 2 | LED2 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
DiskOnChip BIOS address D8000-DFFFF select | JP1 | Pins 2 & 3 closed |
| DiskOnChip BIOS address D0000-D7FFF select | JP1 | Pins 1 & 2 closed | |
» |
CMOS memory normal operation | JP2 |
Pins 1 & 2 closed |
| CMOS memory clear | JP2 |
Pins 2 & 3 closed |
|
| » | LCD power setting 5v | JP4 |
Pins 1 & 2 closed |
| LCD power setting 3.3v | JP4 |
Pins 2 & 3 closed |
|
DIMM CONFIGURATION |
|
Size |
Bank 0 |
8MB |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
256MB |
(1) 32M x 64 |
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A and greater CPUs. |
CPU SPEED SELECTION |
||||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 | SW1/7 |
SW1/8 |
300MHz |
66MHz |
4.5x |
Off |
Off | On | Off | Off | On | Off |
On |
333MHz |
66MHz |
5x |
Off |
Off | On | Off | Off | Off | On |
On |
366MHz |
66MHz |
5.5x |
Off |
Off | On | Off | Off | Off | Off |
On |
400MHz |
66MHz |
6x |
Off |
Off | On | Off | On | On | On |
Off |
433MHz |
66MHz |
6.5x |
Off |
Off | On | Off | On | On | Off |
Off |
466MHz |
66MHz |
7x |
Off |
Off | On | Off | On | Off | On |
Off |
500MHz |
66MHz |
7.5x |
Off |
Off | On | Off | On | Off | Off |
Off |
