PROMISE TECHNOLOGY, INC.
FT440BX
| Device Type | Mainboard |
| Processor | Pentium II |
| Processor Speed | 233/266/300/333/350/366/400/433/450MHz |
| Chip Set | Intel 440BX |
| Maximum Onboard Memory | 512MB (SDRAM supported) |
| Cache | 256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 305mm x 220mm |
| I/O Options | 16-bit ISA slots (3), 32-bit PCI slots (4), AGP slot, ATX power connector, Floppy drive interface, Green PC switch, IDE ATAPI interfaces (2), IDE RAID interfaces (2), IR connector, Parallel port, PS/2 keyboard port, PS/2 mouse port, Serial ports (2), SB-Link connector, USB ports (2), Wake-on-LAN connector |

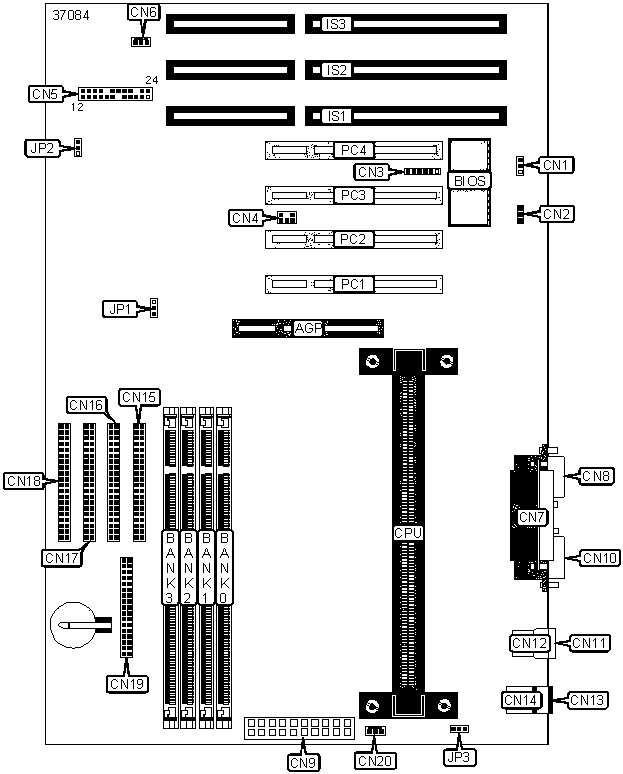

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AGP slot | AGP | Serial port 2 | CN8 |
| Chassis intrusion connector | CN1 | ATX power connector | CN9 |
| Wake-on-LAN connector | CN2 | Serial port 1 | CN10 |
| IR connector | CN3 | USB port 1 | CN11 |
| SB-Link connector | CN4 | USB port 2 | CN12 |
| Power LED & keylock | CN5/Pins 1 - 5 | PS/2 keyboard port | CN13 |
| Speaker | CN5/Pins 7 - 10 | PS/2 mouse port | CN14 |
| Power switch | CN5/Pins 11 & 12 | IDE interface | CN15 |
| IDE interface LED | CN5/Pins 13 & 14 | IDE interface | CN16 |
| Reset switch | CN5/Pins 15 & 16 | IDE RAID interface | CN17 |
| Green PC LED | CN5/Pins 18 & 19 | IDE RAID interface | CN18 |
| Green PC switch | CN5/Pins 20 & 21 | Floppy drive interface | CN19 |
| Turbo LED | CN5/Pins 23 & 24 | CPU fan power | CN20 |
| System fan power | CN6 | 16-bit ISA slots | IS1 - IS3 |
| Parallel port | CN7 | 32-bit PCI slots | PC1 - PC4 |
| Note: IDE RAID interfaces do not support ATAPI devices. The primary and secondary locations of the IDE/IDE RAID interfaces are unidentified. | |||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP2 | Pins 1 & 2 closed |
| CMOS memory clear | JP2 | Pins 2 & 3 closed | |
| » | Power on by keyboard enabled | JP3 | Pins 2 & 3 closed |
| Power on by keyboard disabled | JP3 | Pins 1 & 2 closed | |
DIMM CONFIGURATION |
||||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
16MB |
(1) 2M x 64 |
None |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
None |
32MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
None |
32MB |
(1) 4M x 64 |
None |
None |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
None |
64MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
None |
64MB |
(1) 8M x 64 |
None |
None |
None |
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
None |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
None |
128MB |
(1) 16M x 64 |
None |
None |
None |
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
None |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
None |
256MB |
(1) 32M x 64 |
None |
None |
None |
272MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
None |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports EDO & SDRAM memory. | ||||
CACHE CONFIGURATION |
| Note: 256/512KB cache is located on the Pentium II CPU. |
BUS SPEED SELECTION |
|
Bus Speed |
JP1 |
| Auto detect | Pins 1 & 2 closed |
| 66MHz | Pins 2 & 3 closed |
| 100MHz | Open |
