TYAN COMPUTER CORPORATION

S2056

Device Type Mainboard
Processor Celeron/Pentium II/Pentium III
Processor Speed 300/333/350/366/400/433/450/466/500/533/550/600MHz
Chip Set Intel 810
Video Chip Set Unidentified
Audio Chip Set Unidentified
Maximum Onboard Memory 512MB (SDRAM supported)
Maximum Video Memory 4MB
Maximum Audio Memory Unidentified
Cache 0/128/256/512KB (located on the CPU)
BIOS AMI
Dimensions 244mm x 188mm
I/O Options 32-bit PCI slots (4), ATX power connector, audio in - CD ROM, audio/modem riser slot, Ethernet connector, floppy drive interface, game/MIDI port, IDE interfaces (2), IR connector, LCD monitor interface, line in, line out, microphone in, parallel port, PS/2 keyboard port, PS/2 mouse port, serial interface, serial port, USB interface, USB ports (2), VGA port, Wake-on-LAN connector, Wake-on-modem connector

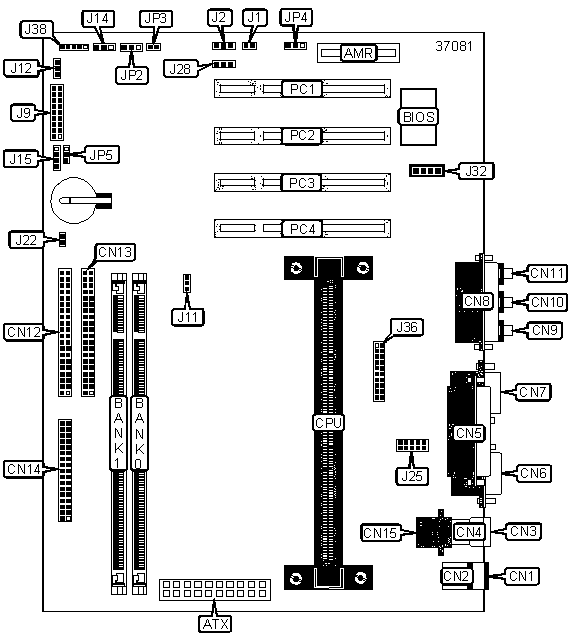

CONNECTIONS

Purpose

Location

Purpose

Location

Audio/modem riser slot AMR Power LED J9/Pins 2 & 4
ATX power connector ATX Reset switch J9/Pins 5 & 7
PS/2 keyboard port CN1 Power switch J9/Pins 6 & 8
PS/2 mouse port CN2 IR connector J9/Pins 9, 11, 13 & 15
USB port 1 CN3 Unidentified J9/Pins 10 & 12
USB port 2 CN4 Unidentified J9/Pins 14 & 16
Parallel port CN5 Reserved J9/Pin 17
Serial port 1 CN6 Reserved J9/Pin 18
VGA port CN7 CPU fan power J11
Game/MIDI port CN8 System fan power J12
Line out CN9 ACPI power LED connector J14
Line in CN10 Speaker J15
Microphone in CN11 SCSI LED connector J22
IDE interface 1 CN12 Serial interface J25
IDE interface 2 CN13 Wake-on-modem J28
Floppy drive interface CN14 Audio in - CD ROM J32
RJ-45 UTP connector CN15 LCD monitor interface J36
Chassis intrusion connector J1 USB interface J38
Wake-on-LAN connector J2 32-bit PCI slots PC1 - PC4
IDE interface LED J9/Pins 1 & 3
Note: USB port 1 and USB interface (J38) share the same channel so therefore can not be used simultaneously.


USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation JP2 Pins 1 & 2 closed
  CMOS memory clear JP2 Pins 2 & 3 closed
» Boot block locked JP3 Open
  Boot block unlocked JP3 Closed
» Onboard sound enabled JP4 Pins 1 & 2 closed
  Onboard sound disabled JP4 Pins 2 & 3 closed
» Factory configured - do not alter JP5 Unidentified


DIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(1) 1M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

16MB

(1) 2M x 64

None

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

32MB

(1) 4M x 64

None

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

64MB

(1) 8M x 64

None

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

128MB

(1) 16M x 64

None

136MB

(1) 16M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

256MB

(1) 32M x 64

None

264MB

(1) 32M x 64

(1) 1M x 64

272MB

(1) 32M x 64

(1) 2M x 64

288MB

(1) 32M x 64

(1) 4M x 64

320MB

(1) 32M x 64

(1) 8M x 64

384MB

(1) 32M x 64

(1) 16M x 64

512MB

(1) 32M x 64

(1) 32M x 64

Note: Board supports SDRAM memory. PC-100 modules are required. Board will not accept registered DIMMs.


CACHE CONFIGURATION

Note: 128KB cache is located on Celeron 300A and greater CPUs. 256/512KB cache is located on the Pentium II and Pentium III CPUs.
