SUPERPOWER COMPUTER CO., LTD.

SP-6XV, SP-6XV-A66, SP-6XV-133
Device Type Mainboard
Processor Celeron/Pentium II/Pentium III
Processor Speed 233/266/300/333/350/366/400/433/450/500/
533/550/600/650/667/700/733MHz
Chip Set VIA
Maximum Onboard Memory 1.2GB (EDO & SDRAM supported)
Cache 0/128/256/512KB (located on the CPU)
BIOS Award
Dimensions 305mm x 190mm
I/O Options 16-bit ISA slots (2), 32-bit PCI slots (5), AGP slot, ATX power connector, floppy drive interface, green PC switch, IDE interfaces (2), IR connector, parallel port, PS/2 keyboard port, PS/2 mouse port, serial ports (2), USB ports (2), Wake-on-LAN connector

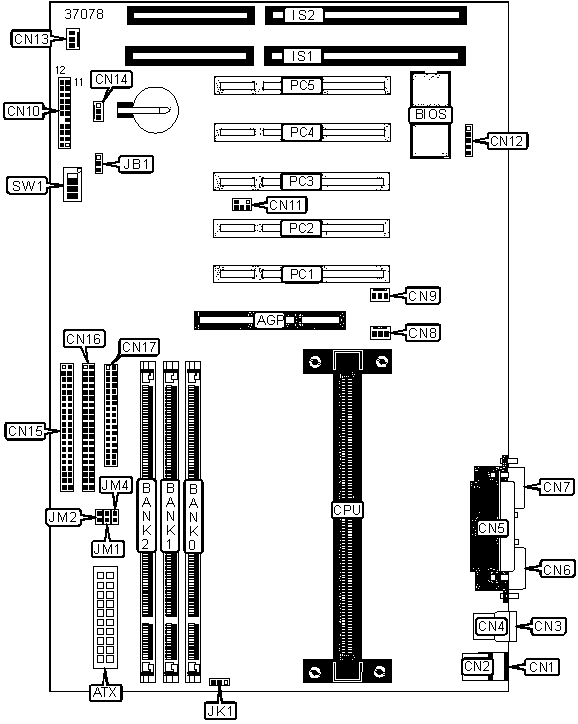

CONNECTIONS

Purpose

Location

Purpose

Location
AGP slot AGP Green PC switch CN10/Pins 7 & 16
ATX power connector ATX Reset switch CN10/Pins 8 & 15
PS/2 keyboard port CN1 Green PC LED CN10/Pins 10 & 13
PS/2 mouse port CN2 PS-ON CN10/Pins 11 & 12
USB port 2 CN3 Speaker CN10/Pins 19 - 22
USB port 1 CN4 SB-Link connector CN11
Parallel port CN5 IR connector CN12
Serial port 1 CN6 System fan power CN13
Serial port 2 CN7 Wake-on-LAN connector CN14
CPU fan power CN8 IDE interface 1 CN15
AGP fan power CN9 IDE interface 2 CN16
Power LED CN10/Pins 1 - 3 Floppy drive interface CN17
Keylock CN10/Pins 4 & 5 16-bit ISA slots IS1 - IS2
IDE interface LED CN10/Pins 6 & 17 32-bit PCI slots PC1 - PC5


USER CONFIGURABLE SETTINGS

Function

Label

Position

»

 CMOS memory normal operation JB1 Pins 1 & 2 closed
  CMOS memory clear JB1 Pins 2 & 3 closed
» Power-on by keyboard disabled JK1 Pins 1 & 2 closed
  Power-on by keyboard enabled JK1 Pins 2 & 3 closed
  Auto-detection of CPU bus speed enabled (66MHz/100MHz only) JM1 Closed
  Auto-detection of CPU bus speed disabled JM1 Open
Note: JM1 setting of auto-detect bus speed (closed) will override bus speed set by JM2 and JM4.


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

16MB

(1) 2M x 64

None

None

32MB

(1) 2M x 64

(1) 2M x 64

None

32MB

(1) 4M x 64

None

None

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

96MB

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

160MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

192MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

256MB

(1) 32M x 64

None

None

256MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

288MB

(1) 32M x 64

(1) 2M x 64

(1) 2M x 64

320MB

(1) 32M x 64

(1) 4M x 64

(1) 4M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

384MB

(1) 32M x 64

(1) 8M x 64

(1) 8M x 64

512MB

(1) 32M x 64

(1) 32M x 64

None

512MB

(1) 32M x 64

(1) 16M x 64

(1) 16M x 64

512MB

(1) 64M x 64

None

None

768MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

1024MB

(1) 64M x 64

(1) 64M x 64

None

1040MB

(1) 64M x 64

(1) 64M x 64

(1) 2M x 64

1056MB

(1) 64M x 64

(1) 64M x 64

(1) 4M x 64

1088MB

(1) 64M x 64

(1) 64M x 64

 (1) 8M x 64

1152MB

(1) 64M x 64

(1) 64M x 64

 (1) 16M x 64

1280MB

(1) 64M x 64

 (1) 64M x 64 (1) 32M x 64

Note: Board supports EDO & SDRAM memory.
Note: PC-133 modules are required in banks 1 and 2 to achieve settings above 768MB.


CACHE CONFIGURATION

Note: 128KB cache is located on Celeron 300A and greater CPUs. 256/512KB cache is located on the Pentium II and Pentium III CPUs.


CPU SPEED SELECTION (CELERON)

CPU Speed

 Clock Speed Multiplier

SW1/1

 SW1/2

SW1/3

SW1/4

 JM2 JM4
266MHz 66MHz 4.0x On On On Off Closed Closed
300MHz 66MHz 4.5x On Off On Off Closed Closed
333MHz 66MHz 5.0x On On Off Off Closed Closed
366MHz 66MHz 5.5x On Off Off Off Closed Closed
400MHz 66MHz 6.0x Off On On On Closed Closed
433MHz 66MHz 6.5x Off Off On On Closed Closed

Note: The bus speed set by jumpers JM2 and JM4 will be overridden by the auto-detect setting, if jumper JM1 is set to the closed position.


CPU SPEED SELECTION (PENTIUM II)

CPU Speed

 Clock Speed Multiplier

SW1/1

 SW1/2

SW1/3

SW1/4

 JM2 JM4
233MHz 66MHz 3.5x On Off Off On Closed Closed
266MHz 66MHz 4.0x On On On Off Closed Closed
300MHz 66MHz 4.5x On Off On Off Closed Closed
333MHz 66MHz 5.0x On On Off Off Closed Closed
350MHz 100MHz 3.5x On Off Off On Open Closed
400MHz 100MHz 4.0x On On On Off Open Closed
450MHz 100MHz 4.5x On Off On Off Open Closed

Note: The bus speed set by jumpers JM2 and JM4 will be overridden by the auto-detect setting, if jumper JM1 is set to the closed position.


CPU SPEED SELECTION (PENTIUM III)

CPU Speed

 Clock Speed Multiplier

SW1/1

 SW1/2

SW1/3

 SW1/4 JM2 JM4
450MHz 100MHz 4.5x On Off On Off Open Closed
500MHz 100MHz 5.0x On On Off Off Open Closed
533MHz 133MHz 4.0x On On On Off Open Open
550MHz 100MHz 5.5x On Off Off Off Open Closed
600MHz 100MHz 6.0x Off On On On Open Closed
600MHz 133MHz 4.5x On Off On Off Open Open
650MHz 100MHz 6.5x Off Off On On Open Closed
667MHz 133MHz 5.0x On On Off Off Open Open
700MHz 100MHz 7.0x Off On Off On Open Closed
733MHz 133MHz 5.5x On Off Off Off Open Open

Note: The bus speed set by jumpers JM2 and JM4 will be overridden by the auto-detect setting, if jumper JM1 is set to the closed position.
Note: Auto-detect setting can not be used to detect 133MHz bus speed.
