SUPERPOWER COMPUTER CO., LTD.
SP-6BV-133
| Device Type | Mainboard |
| Processor | Celeron/Pentium II/Pentium III |
| Processor Speed | 233/266/300/333/350/366/400/433/450/500MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 1GB (EDO & SDRAM supported) |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 220mm x 240mm |
| I/O Options | 16-bit ISA slots (2), 32-bit PCI slots (3), AGP slot, AT power connector, ATX power connector, floppy drive interface, green PC switch, IDE interfaces (2), IR connector, keyboard port, parallel interface, PS/2 mouse interface, serial interfaces (2), USB interface, Wake-on-LAN connector |

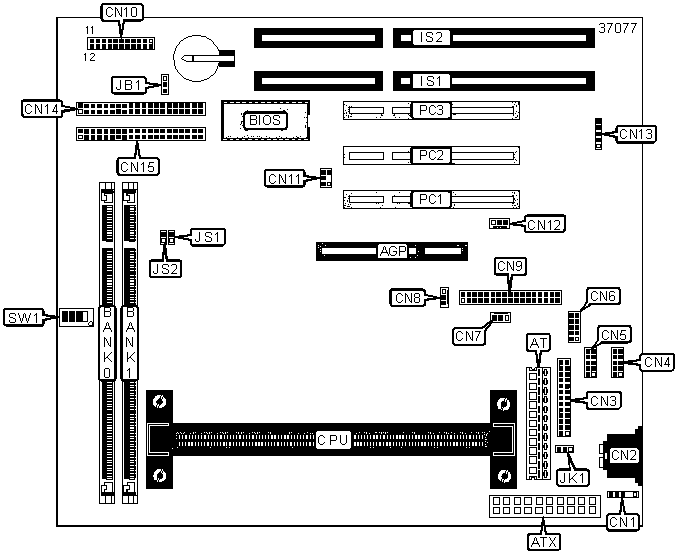

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AGP slot | AGP | IDE interface LED | CN10/Pins 6 & 17 |
| AT power connector | AT | Green PC switch | CN10/Pins 7 & 16 |
| ATX power connector | ATX | Reset switch | CN10/Pins 8 & 15 |
| PS/2 mouse interface | CN1 | Turbo LED | CN10/Pins 9 & 14 |
| Keyboard port | CN2 | Green PC LED | CN10/Pins 10 & 13 |
| Parallel port | CN3 | PS-ON | CN10/Pins 11 & 12 |
| Serial interface 1 | CN4 | Speaker | CN10/Pins 19 - 22 |
| Serial interface 2 | CN5 | SB-Link connector | CN11 |
| USB interface | CN6 | System fan power | CN12 |
| CPU fan power | CN7 | IR connector | CN13 |
| Wake-on-LAN connector | CN8 | IDE interface 2 | CN14 |
| Floppy drive interface | CN9 | IDE interface 1 | CN15 |
| Power LED | CN10/Pins 1 - 3 | 16-bit ISA slots | IS1 - IS2 |
| Keylock | CN10/Pins 4 & 5 | 32-bit PCI slots | PC1 - PC3 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JB1 | Pins 1 & 2 closed |
| CMOS memory clear | JB1 | Pins 2 & 3 closed | |
| » | Power-on by keyboard disabled | JK1 | Pins 1 & 2 closed |
| Power-on by keyboard enabled | JK1 | Pins 2 & 3 closed | |
| CPU host bus frequency detected automatically | JS1 | Closed | |
| CPU host bus frequency not detected automatically | JS1 | Open | |
| 66MHz bus speed | JS2 | Closed | |
| 100MHz bus speed | JS2 | Open | |
| Note: JS1 setting of auto-detect bus speed (closed) will override the bus speed set by JS2. | |||
| DIMM CONFIGURATION | ||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
520MB |
(1) 64M x 64 |
(1) 1M x 64 |
528MB |
(1) 64M x 64 |
(1) 2M x 64 |
544MB |
(1) 64M x 64 |
(1) 4M x 64 |
576MB |
(1) 64M x 64 |
(1) 8M x 64 |
640MB |
(1) 64M x 64 |
(1) 16M x 64 |
768MB |
(1) 64M x 64 |
(1) 32M x 64 |
1024MB |
(1) 64M x 64 |
(1) 64M x 64 |
| Note: Board
supports EDO & SDRAM memory. Note: PC-133 modules are required for settings above 512MB. |
||
CACHE CONFIGURATION |
| Note: 128KB cache is located on Celeron 300A and greater CPUs. 256/512KB cache is located on the Pentium II and Pentium III CPUs. |
CPU SPEED SELECTION (CELERON) |
||||||
CPU Speed |
Clock Speed | Multiplier | SW1/1 |
SW1/2 | SW1/3 |
SW1/4 |
| 233MHz | 66MHz | 3.5x | On | Off | Off | On |
| 266MHz | 66MHz | 4.0x | On | On | On | Off |
| 300MHz | 66MHz | 4.5x | On | Off | On | Off |
| 333MHz | 66MHz | 5.0x | On | On | Off | Off |
| 366MHz | 66MHz | 5.5x | On | Off | Off | Off |
| 400MHz | 66MHz | 6.0x | Off | On | On | On |
| 433MHz | 66MHz | 6.5x | Off | Off | On | On |
CPU SPEED SELECTION (PENTIUM II) |
||||||
CPU Speed |
Clock Speed | Multiplier | SW1/1 |
SW1/2 | SW1/3 |
SW1/4 |
| 233MHz | 66MHz | 3.5x | On | Off | Off | On |
| 266MHz | 66MHz | 4.0x | On | On | On | Off |
| 300MHz | 66MHz | 4.5x | On | Off | On | Off |
| 333MHz | 66MHz | 5.0x | On | On | Off | Off |
| 350MHz | 100MHz | 3.5x | On | Off | Off | On |
| 400MHz | 100MHz | 4.0x | On | On | On | Off |
| 450MHz | 100MHz | 4.5x | On | Off | On | Off |
CPU SPEED SELECTION (PENTIUM III) |
||||||
CPU Speed |
Clock Speed | Multiplier | SW1/1 |
SW1/2 | SW1/3 |
SW1/4 |
| 450MHz | 100MHz | 4.5x | On | Off | On | Off |
| 500MHz | 100MHz | 5.0x | On | On | Off | Off |
