SUPERPOWER COMPUTER CO., LTD.

SP-6BV-A66
Device Type Mainboard
Processor Celeron/Pentium II/Pentium III
Processor Speed 233/266/300/333/350/366/400/433/450/500MHz
Chip Set VIA
Maximum Onboard Memory 512MB (EDO & SDRAM supported)
Cache 0/128/256/512KB (located on the CPU)
BIOS Award
Dimensions 220mm x 240mm
I/O Options 16-bit ISA slots (2), 32-bit PCI slots (3), AGP slot, AT power connector, ATX power connector, floppy drive interface, green PC switch, IDE interfaces (2), IR connector, keyboard port, parallel interface, PS/2 mouse interface, serial interfaces (2), USB interface, Wake-on-LAN connector

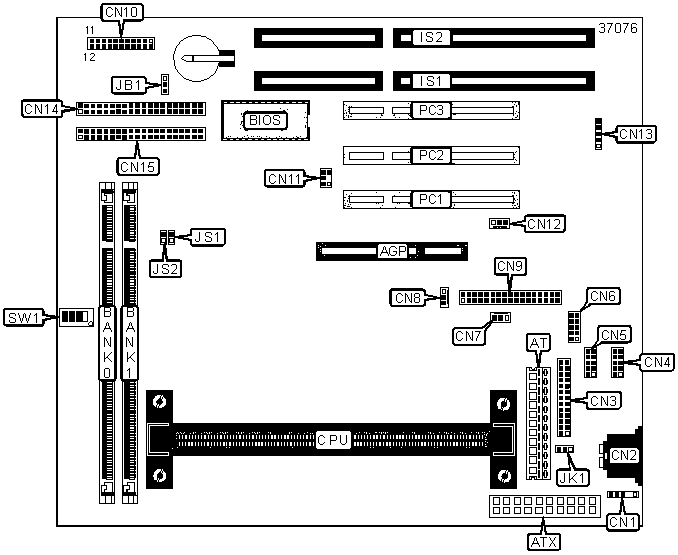

CONNECTIONS

Purpose

Location

Purpose

Location
AGP slot AGP IDE interface LED CN10/Pins 6 & 17
AT power connector AT Green PC switch CN10/Pins 7 & 16
ATX power connector ATX Reset switch CN10/Pins 8 & 15
PS/2 mouse interface CN1 Turbo LED CN10/Pins 9 & 14
Keyboard port CN2 Green PC LED CN10/Pins 10 & 13
Parallel port CN3 PS-ON CN10/Pins 11 & 12
Serial interface 1 CN4 Speaker CN10/Pins 19 - 22
Serial interface 2 CN5 SB-Link connector CN11
USB interface CN6 System fan power CN12
CPU fan power CN7 IR connector CN13
Wake-on-LAN connector CN8 IDE interface 2 CN14
Floppy drive interface CN9 IDE interface 1 CN15
Power LED CN10/Pins 1 - 3 16-bit ISA slots IS1 - IS2
Keylock CN10/Pins 4 & 5 32-bit PCI slots PC1 - PC3


USER CONFIGURABLE SETTINGS

Function

Label

Position

»

 CMOS memory normal operation JB1 Pins 1 & 2 closed
  CMOS memory clear JB1 Pins 2 & 3 closed
» Power-on by keyboard disabled JK1 Pins 1 & 2 closed
  Power-on by keyboard enabled JK1 Pins 2 & 3 closed
  CPU host bus frequency detected automatically JS1 Closed
  CPU host bus frequency not detected automatically JS1 Open
  66MHz bus speed JS2 Closed
  100MHz bus speed JS2 Open
Note: JS1 setting of auto detect bus speed (closed) will override the bus speed set by JS2.


DIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(1) 1M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

16MB

(1) 2M x 64

None

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

32MB

(1) 4M x 64

None

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

64MB

(1) 8M x 64

None

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

128MB

(1) 16M x 64

None

136MB

(1) 16M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

256MB

(1) 32M x 64

None

264MB

(1) 32M x 64

(1) 1M x 64

272MB

(1) 32M x 64

(1) 2M x 64

288MB

(1) 32M x 64

(1) 4M x 64

320MB

(1) 32M x 64

(1) 8M x 64

384MB

(1) 32M x 64

(1) 16M x 64

512MB

(1) 32M x 64

(1) 32M x 64
Note: Board supports EDO & SDRAM memory.


CACHE CONFIGURATION

Note: 128KB cache is located on Celeron 300A and greater CPUs. 256/512KB cache is located on the Pentium II and Pentium III CPUs.


CPU SPEED SELECTION (CELERON)

CPU Speed

 Clock Speed Multiplier

SW1/1

 SW1/2

SW1/3

 SW1/4
233MHz 66MHz 3.5x On Off Off On
266MHz 66MHz 4.0x On On On Off
300MHz 66MHz 4.5x On Off On Off
333MHz 66MHz 5.0x On On Off Off
366MHz 66MHz 5.5x On Off Off Off
400MHz 66MHz 6.0x Off On On On
433MHz 66MHz 6.5x Off Off On On


CPU SPEED SELECTION (PENTIUM II)

CPU Speed

 Clock Speed Multiplier

SW1/1

 SW1/2

SW1/3

 SW1/4
233MHz 66MHz 3.5x On Off Off On
266MHz 66MHz 4.0x On On On Off
300MHz 66MHz 4.5x On Off On Off
333MHz 66MHz 5.0x On On Off Off
350MHz 100MHz 3.5x On Off Off On
400MHz 100MHz 4.0x On On On Off
450MHz 100MHz 4.5x On Off On Off


CPU SPEED SELECTION (PENTIUM III)

CPU Speed

 Clock Speed Multiplier

SW1/1

 SW1/2

SW1/3

 SW1/4
450MHz 100MHz 4.5x On Off On Off
500MHz 100MHz 5.0x On On Off Off
