SUPERPOWER COMPUTER CO., LTD.

SP-6MW, SP-6MW-D, SP-6MW-E, SP-6MW-L
Device Type Mainboard
Processor Celeron/Pentium II/Pentium III
Processor Speed 233/266/300/333/350/366/400/433/450/500/533/
550/600/650/667/700/733MHz
Chip Set Intel 810
Video Chip Set Unidentified
Audio Chip Set Unidentified
Maximum Onboard Memory 512MB (SDRAM supported)
Maximum Video Memory 4MB (6MW-D & 6MW-E), Unidentified (6MW, 6MW-L)
Maximum Audio Memory Unidentified
Cache 0/128/256/512KB (located on the CPU)
BIOS Award
Dimensions 240mm x 190mm
I/O Options 32-bit PCI slots (3), Audio/modem riser slot, ATX power connector, audio in - CD-ROMs (2), floppy drive interface, game/MIDI port, green PC switch, IDE interfaces (2), IR connector, line in, line out, microphone in, parallel port, PS/2 keyboard port, PS/2 mouse port, serial interface, serial port, USB ports (2), VGA port, Wake-on-LAN connector, Wake-on-modem connector

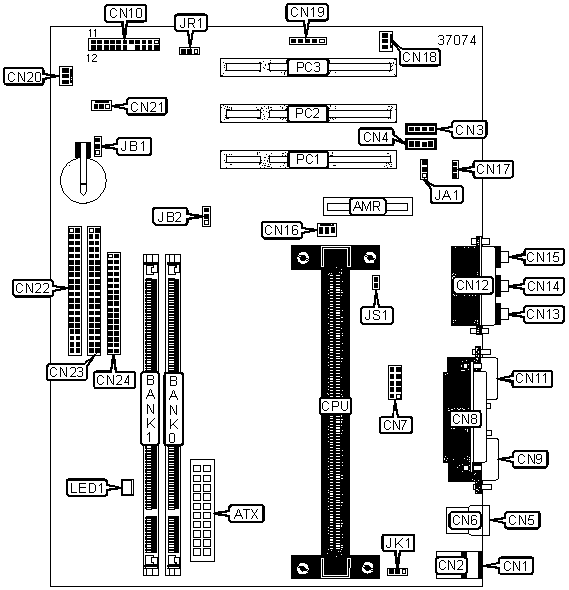

CONNECTIONS

Purpose

Location

Purpose

Location
Audio/modem riser slot AMR PS-ON CN10/Pins 11 & 12
ATX power connector ATX Speaker CN10/Pins 19 - 22
PS/2 keyboard port CN1 VGA port CN11
PS/2 mouse port CN2 Game/MIDI port CN12
Audio in - CD-ROM CN3 Line out CN13
Audio in - CD-ROM CN4 Line in CN14
USB port 1 CN5 Microphone in CN15
USB port 2 CN6 CPU fan power CN16
Serial interface CN7 Wake-on-modem connector CN17
Parallel port CN8 System fan power CN18
Serial port 1 CN9 IR connector CN19
Power LED CN10/Pins 1 - 3 System fan power CN20
Keylock CN10/Pins 4 & 5 Wake-on-LAN connector CN21
IDE interface LED CN10/Pins 6 & 17 IDE interface 1 CN22
Green PC switch CN10/Pins 7 & 16 IDE interface 2 CN23
Reset switch CN10/Pins 8 & 15 Floppy drive interface CN24
Green PC LED CN10/Pins 10 & 13 32-bit PCI slots PC1 - PC3


USER CONFIGURABLE SETTINGS

Function

Label

Position
  Onboard audio enabled JA1 Pins 1 & 2 closed
  Onboard audio disabled JA1 Pins 2 & 3 closed

»

 CMOS memory normal operation JB1 Pins 1 & 2 closed
  CMOS memory clear JB1 Pins 2 & 3 closed
» I/O keyboard password normal operation JB2 Pins 1 & 2 closed
  I/O keyboard password clear JB2 Pins 2 & 3 closed
» Power-on by keyboard disabled JK1 Pins 1 & 2 closed
  Power-on by keyboard enabled JK1 Pins 2 & 3 closed
» Random Number Generator disabled JR1 Pins 1 & 2 closed
  Random Number Generator enabled JR1 Pins 2 & 3 closed
» CPU host bus frequency detected automatically JS1 Closed
  CPU host bus frequency is 100MHz JS1 Open


DIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(1) 1M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

16MB

(1) 2M x 64

None

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

32MB

(1) 4M x 64

None

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

64MB

(1) 8M x 64

None

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

128MB

(1) 16M x 64

None

136MB

(1) 16M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

256MB

(1) 32M x 64

None

264MB

(1) 32M x 64

(1) 1M x 64

272MB

(1) 32M x 64

(1) 2M x 64

288MB

(1) 32M x 64

(1) 4M x 64

320MB

(1) 32M x 64

(1) 8M x 64

384MB

(1) 32M x 64

(1) 16M x 64

512MB

(1) 32M x 64

(1) 32M x 64
Note: Board supports SDRAM memory.
Note: PC100 modules must be used.


CACHE CONFIGURATION

Note: 128KB cache is located on Celeron 300A and greater CPUs. 256/512K cache is located on the Pentium II and Pentium III CPUs.


DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Unidentified

On

ATX power is connected

LED1

Unidentified

Off

ATX power is not connected
Note: If LED1 is on, do not insert or remove DIMM module from DIMM slot. Power connector must first be removed.
