PHILIPS CONSUMER ELECTRONICS, CO.
E883
| Device Type | Mainboard |
| Processor | Pentium II |
| Processor Speed | 233/266/300/333MHz |
| Chip Set | Intel 440LX |
| Maximum Onboard Memory | 384MB (EDO & SDRAM supported) |
| Cache | 256/512KB (located on the Pentium II CPU) |
| BIOS | Award |
| Dimensions | Unidentified |
| I/O Options | 16-bit ISA slots (3), 32-bit PCI slots (4), AGP slot, ATX power connector, floppy drive interface, green PC connector, IDE interfaces (2), IR connector, parallel port, PS/2 keyboard port, PS/2 mouse port, serial ports (2), USB ports (2), Wake-on-LAN connector |

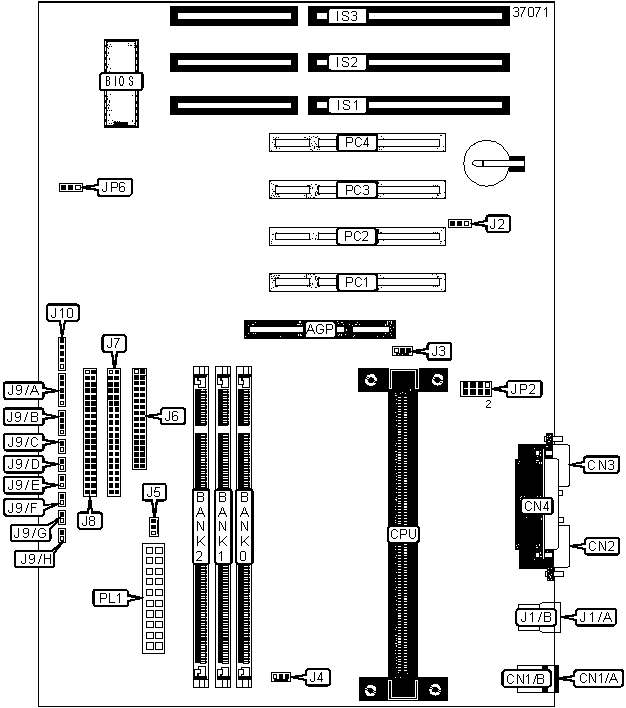

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AGP slot | AGP | IDE interface 2 | J7 |
| PS/2 keyboard port | CN1/A | IDE interface 1 | J8 |
| PS/2 mouse port | CN1/B | Power LED & keylock | J9/A |
| Serial port 2 | CN2 | Speaker | J9/B |
| Serial port 1 | CN3 | Reset switch | J9/C |
| Parallel port | CN4 | Green PC switch | J9/D |
| 16-bit ISA slots | IS1 - IS3 | Power switch | J9/E |
| USB port 2 | J1A | Green PC LED | J9/F |
| USB port 1 | J1B | IDE interface LED | J9/G |
| Wake-on-LAN connector | J2 | Power LED | J9/H |
| AGP fan power | J3 | IR connector | J10 |
| CPU fan power | J4 | 32-bit PCI slots | PC1 - PC4 |
| System fan power | J5 | ATX power connector | PL1 |
| Floppy drive interface | J6 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP6 | Pins 1 & 2 closed |
| CMOS memory clear | JP6 | Pins 2 & 3 closed | |
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports EDO & SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 256/512KB cache is located on the Pentium II CPU. |
CPU SPEED SELECTION |
||||||
CPU speed |
Clock speed |
Multiplier |
JP2/Pins 1 & 2 | JP2/Pins 3 & 4 | JP2/Pins 5 & 6 | JP2/Pins 7 & 8 |
| 233MHz | 66MHz | 3.5x | Off | Off | On | On |
| 266MHz | 66MHz | 4.0x | On | On | Off | On |
| 300MHz | 66MHz | 4.5x | Off | On | Off | On |
| 333MHz | 66MHz | 5.0x | On | Off | Off | On |
