GIGA-BYTE TECHNOLOGY CO., LTD.
GA-6VX7 (REV. 2.0)
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 366/400/433/466/500/533/566MHz |
| Chip Set | VIA Apollo |
| Maximum Onboard Memory | 768MB SDRAM/384MB EDO |
| Cache | 128KB (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | 305mm x 190mm |
| I/O Options | 16-bit ISA slots (2), 32-bit PCI slots (5), AGP slot, ATX power connector, floppy drive interface, green PC connector, IDE interfaces (2), IR connector, parallel port, PS/2 keyboard port, PS/2 mouse port, serial ports (2), SB-Link connector, USB ports (2), Wake-on-LAN connector, Wake-on-modem connector |

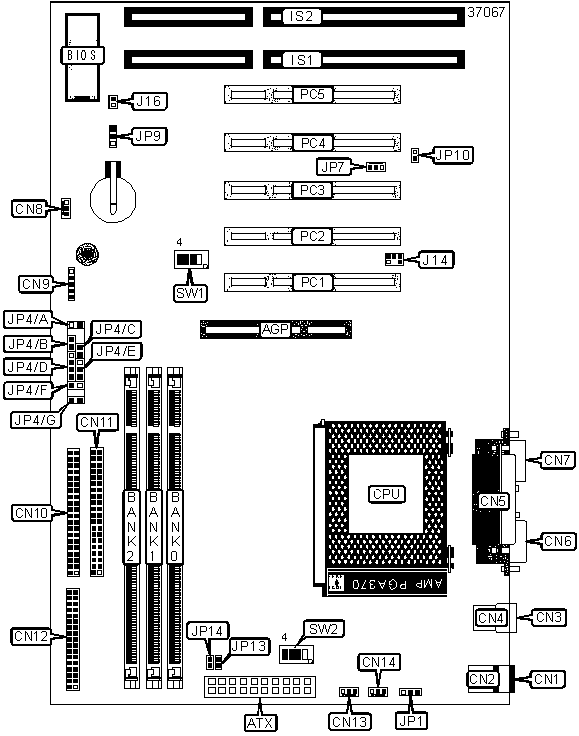

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AGP slot | AGP | CPU fan power | CN14 |
| ATX power connector | ATX | 16-bit ISA slots | IS1 - IS2 |
| PS/2 keyboard port | CN1 | SB-Link connector | J14 |
| PS/2 mouse port | CN2 | Wake-on-modem connector | J16 |
| USB port 1 | CN3 | Green LED | JP4/A |
| USB port 2 | CN4 | Reset switch | JP4/B |
| Parallel port | CN5 | Power switch | JP4/C |
| Serial port 2 | CN6 | Speaker | JP4/D |
| Serial port 1 | CN7 | Power LED | JP4/E |
| System fan power | CN8 | IDE interface LED | JP4/F |
| IR connector | CN9 | Green PC switch | JP4/G |
| IDE interface 1 | CN10 | Wake-on-LAN connector | JP7 |
| IDE interface 2 | CN11 | Chassis intrusion connector | JP10 |
| Floppy drive interface | CN12 | 32-bit PCI slots | PC1 - PC5 |
| Power supply fan power | CN13 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Power-on by keyboard disabled | JP1 | Pins 2 & 3 closed |
| Power-on by keyboard enabled | JP1 | Pins 1 & 2 closed | |
» |
CMOS memory normal operation | JP9 | Pins 2 & 3 closed |
| CMOS memory clear | JP9 | Pins 1 & 2 closed | |
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB* |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB* |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB* |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB* |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB* |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB* |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB* |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB* |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports EDO memory
up to 384MB & SDRAM memory up to 768MB. Note: (*) represents settings that can be obtained only with SDRAM. |
|||
CACHE CONFIGURATION |
| Note: 128KB cache is located on Celeron 300A and greater CPUs. |
VGA CARD SELECTION |
|||
Setting |
JP13 |
JP14 |
|
| » | VGA card normal |
Open |
Open |
VGA card is Voodoo III |
Closed |
Closed | |
CPU SPEED SELECTION (CELERON) |
||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 |
| 366MHz | 66MHz | 5.5x | Off | Off | Off | On |
| 400MHz | 66MHz | 6.0x | On | On | On | Off |
| 433MHz | 66MHz | 6.5x | Off | On | On | Off |
| 466MHz | 66MHz | 7.0x | On | Off | On | Off |
| 500MHz | 66MHz | 7.5x | Off | Off | On | Off |
| 533MHz | 66MHz | 8.0x | On | On | Off | Off |
| 566MHz | 66MHz | 8.5x | Off | On | Off | Off |
CPU SPEED SELECTION (CELERON, CON'T) |
||||||
CPU speed |
Clock speed |
Multiplier |
SW2/1 | SW2/2 | SW2/3 | SW2/4 |
| 366MHz | 66MHz | 5.5x | On | Off | Off | On |
| 400MHz | 66MHz | 6.0x | On | Off | Off | On |
| 433MHz | 66MHz | 6.5x | On | Off | Off | On |
| 466MHz | 66MHz | 7.0x | On | Off | Off | On |
| 500MHz | 66MHz | 7.5x | On | Off | Off | On |
| 533MHz | 66MHz | 8.0x | On | Off | Off | On |
| 566MHz | 66MHz | 8.5x | On | Off | Off | On |
