GIGA-BYTE TECHNOLOGY CO., LTD.
GA-6W0Z7 (REV. 1.3)
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 200/233/266/300/333/366/400/433/466/500/533MHz |
| Chip Set | Intel 810 |
| Video Chip Set | Unidentified |
| Audio Chip Set | Yamaha |
| Maximum Onboard Memory | 512MB (SDRAM supported) |
| Maximum Video Memory | Unidentified |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128KB (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | 257mm x 205mm (mini-NXL) |
| I/O Options | Audio in - CD-ROM, auxiliary in, DFP port, diagnostic LED connectors (4), game interface, RJ-45 LAN connector, line in, line out, microphone in, parallel port, PS/2 keyboard port, PS/2 mouse port, serial interface, serial port, SPDIF connector, STR LED connector, USB ports (2), VGA port, proprietary connector, voice modem connector |

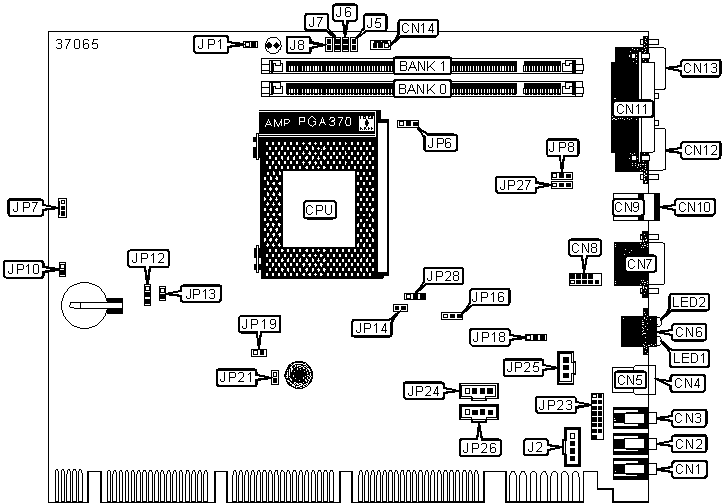

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| Line out | CN1 | CPU fan power | CN14 |
| Line in | CN2 | Audio in - CD-ROM | J2 |
| Microphone in | CN3 | Diagnostic LED connector | J5 |
| USB port 1 | CN4 | Diagnostic LED connector | J6 |
| USB port 2 | CN5 | Diagnostic LED connector | J7 |
| RJ-45 LAN connector | CN6 | Diagnostic LED connector | J8 |
| DFP port | CN7 | STR LED connector | JP1 |
| Serial interface 2 | CN8 | System fan power | JP7 |
| PS/2 mouse port | CN9 | Chassis intrusion connector | JP10 |
| PS/2 keyboard port | CN10 | Game interface | JP23 |
| Parallel port | CN11 | Voice modem connector | JP24 |
| VGA port | CN12 | SPDIF connector | JP25 |
| Serial port 1 | CN13 | Auxiliary in | JP26 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Power-on by keyboard disabled | JP8 | Pins 2 & 3 closed |
| Power-on by keyboard enabled | JP8 | Pins 1 & 2 closed | |
» |
CMOS memory normal operation | JP12 | Pins 2 & 3 closed |
| CMOS memory clear | JP12 | Pins 1 & 2 closed | |
| » | STR/Wake-on-LAN disabled | JP13 | Open |
| STR/Wake-on-LAN enabled | JP13 | Closed | |
| » | Reboot on timeout | JP14 | Open |
| Do not reboot on timeout | JP14 | Closed | |
| » | Onboard LAN enabled | JP16 | Pins 2 & 3 closed |
| Onboard LAN disabled | JP16 | Pins 1 & 2 closed | |
| » | Onboard audio enabled | JP18 | Pins 2 & 3 closed |
| Onboard audio disabled | JP18 | Pins 1 & 2 closed | |
| » | Top block is locked | JP19 | Open |
| Top block is unlocked | JP19 | Closed | |
| » | Buzzer enabled | JP21 | Closed |
| Buzzer disabled | JP21 | Open | |
| » | Wake-on-USB keyboard disabled | JP27 | Pins 2 & 3 closed |
| Wake-on-USB keyboard enabled | JP27 | Pins 1 & 2 closed | |
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
256MB |
(1) 32M x 64 |
None |
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board
supports SDRAM memory. Note: PC100 modules must be used. |
||
CACHE CONFIGURATION |
| Note: 128KB cache is located on Celeron 300A and greater CPUs. |
SYSTEM BUS FORCED SPEED SELECTION |
|
Setting |
JP6 |
Auto |
Pins 1 & 2 closed |
Force 66MHz |
Pins 2 & 3 closed |
Force 100MHz |
Open |
SYSTEM BOOT SELECTION |
|
Setting |
JP28 |
Normal |
Pins 1 & 2 closed |
Safe mode |
Pins 2 & 3 closed |
Recovery |
Open |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Yellow |
On |
LAN is active |
LED1 |
Yellow |
Off |
LAN is not active |
LED2 |
Green |
On |
Network connection is good |
LED2 |
Green |
Off |
Network connection is broken |
