GIGA-BYTE TECHNOLOGY CO., LTD.
GA-6ZX7 (REV. 1.0)
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 366/400/433/466/500/533/566MHz |
| Chip Set | Intel 440ZX |
| Maximum Onboard Memory | 256MB (SDRAM supported) |
| Cache | 128KB |
| BIOS | Award |
| Dimensions | 305mm x 190mm |
| I/O Options | 16-bit ISA slots (2), 32-bit PCI slots (4), AGP slot, ATX power connector, floppy drive interface, green PC connector, IDE interfaces (2), IR connector, parallel port, PS/2 keyboard port, PS/2 mouse port, serial ports (2), SB-Link connector, USB ports (2), Wake-on-LAN connector, Wake-on-modem connector |

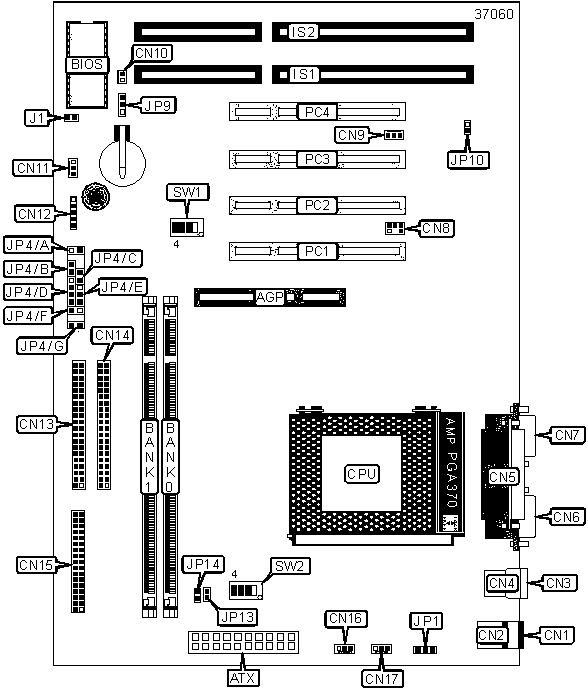

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AGP slot | AGP | IDE interface 2 | CN14 |
| ATX power | ATX | Floppy drive interface | CN15 |
| PS/2 keyboard port | CN1 | Power supply fan power | CN16 |
| PS/2 mouse port | CN2 | CPU fan power | CN17 |
| USB port 1 | CN3 | Unidentified | J1 |
| USB port 2 | CN4 | Green LED | JP4/A |
| Parallel port | CN5 | Reset switch | JP4/B |
| Serial port 2 | CN6 | Power switch | JP4/C |
| Serial port 1 | CN7 | Speaker | JP4/D |
| SB-Link connector | CN8 | Power LED | JP4/E |
| Wake-on-LAN connector | CN9 | IDE interface LED | JP4/F |
| Wake-on-modem connector | CN10 | Green PC switch | JP4/G |
| System fan power | CN11 | Chassis intrusion connector | JP10 |
| IR connector | CN12 | 16-bit ISA slot | IS1 - IS2 |
| IDE interface 1 | CN13 | 32-bit PCI slots | PC1 - PC4 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Keyboard power on disabled | JP1 | Pins 2 & 3 closed |
| Keyboard power on enabled | JP1 | Pins 1 & 2 closed | |
» |
CMOS memory normal operation | JP9 | Pins 2 & 3 closed |
| CMOS memory clear | JP9 | Pins 1 & 2 closed | |
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
256MB |
(1) 32M x 64 | None |
| Note: Board supports SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 128KB cache is located on Celeron 300A and greater CPUs. |
VGA CARD SELECTION |
|||
S etting |
J P13 |
J P14 |
|
| » | VGA card normal | O pen |
O pen |
| VGA card is Voodoo III | C losed |
C losed |
|
CPU MULTIPLIER SELECTION |
||||
Multiplier |
SW1/1 | SW1/2 |
SW1/3 |
SW1/4 |
3x |
On | Off | On | On |
5.5x |
Off | Off | On | On |
4x |
On | On | Off | On |
4.5x |
Off | On | Off | On |
5x |
On | Off | Off | On |
5.5x |
Off | Off | Off | On |
6x |
On | On | On | Off |
6.5x |
Off | On | On | Off |
7x |
On | Off | On | Off |
7.5x |
Off | Off | On | Off |
| 8x | On | On | Off | Off |
| 8.5x | Off | On | Off | Off |
| 9x | On | Off | Off | Off |
| 9.5x | Off | Off | Off | Off |
SYSTEM BUS SPEED SELECTION |
|||||
CPU |
AGP |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
66MHz |
66MHz |
On | Off | Off | On |
75MHz |
75MHz |
On | On | Off | On |
83MHz |
83MHz |
On | Off | On | On |
100MHz |
66MHz |
Off | Off | Off | Off |
112MHz |
75MHz |
Off | On | Off | Off |
133MHz |
89MHz |
Off | Off | On | Off |
