ADVANTECH CO., LTD
PCA-6159H
| Device Type | Single Board Computer |
| Processor | CX 6X86/CX 686MX/AM K5/AM K6/Pentium/Pentium MMX |
| Processor Speed | 75/90/100/120/133/150/166/180/200MHz |
| Chip Set | Intel 430TX |
| Video Chip Set | Chips & Technology |
| Maximum Onboard Memory | 256MB (EDO supported) |
| Maximum Video Memory | 2MB |
| Cache | 512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 338mm x 122mm |
| I/O Options | Floppy drive interface, IDE interfaces (2), SCSI interface, parallel interface, PS/2 mouse/keyboard port, serial interface, serial port, VGA port, IR connector, USB interfaces (2), Ethernet 10BaseT connector, Flat panel connector |
| Data Bus | 16-bit ISA/32-bit PCI |

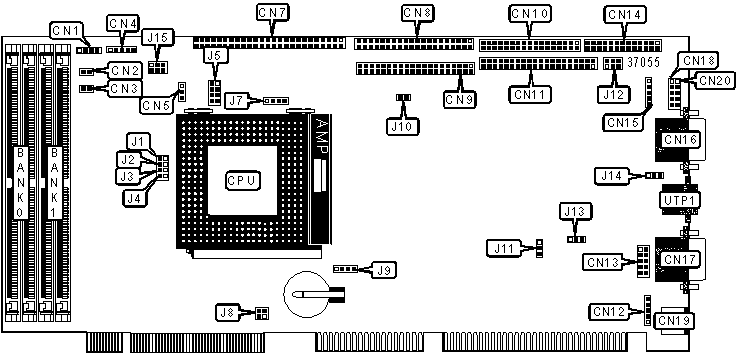

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Speaker | CN1 | Keyboard interface | CN12 |
| IDE interface LED | CN2 | Serial interface | CN13 |
| Reset switch | CN3 | Parallel interface | CN14 |
| Power LED & keylock | CN4 | IR connector | CN15 |
| Fan power | CN5 | VGA port | CN16 |
| SCSI interface | CN7 | Serial port 1 | CN17 |
| IDE interface 1 | CN8 | USB interface 2 | CN18 |
| IDE interface 2 | CN9 | PS/2 mouse/keyboard port | CN19 |
| Floppy drive interface | CN10 | USB interface 1 | CN20 |
| Flat Panel connector | CN11 | Ethernet 10BaseT via RJ-45 connector | UTP1 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Pentium MMX enabled | J7 | Pins 1 & 2 closed |
| Pentium MMX disabled | J7 | Pins 1 & 2 open | |
| » | MTXC clock at 66MHz selected | J7 | Pins 3 & 4 closed |
| MTXC clock at 60MHz selected | J7 | Pins 3 & 4 open | |
» |
Internal battery selected | J9 |
Pins 3 & 4 closed |
| External battery selected | J9 |
Pins 1 & 4 closed | |
| » | Wide SCSI enabled | J10 | Pins 1 & 2 closed |
| Wide SCSI disabled | J10 | Pins 2 & 3 closed | |
| » | Wait 1 clock pulse delay | J11 | Pins 1 & 2 closed |
| Wait 2 clock pulse delay | J11 | Pins 2 & 3 closed | |
| » | LCD 3.3V power selected | J12 | Pins 1 & 3, 2 & 4 closed |
| LCD 5V power selected | J12 | Pins 3 & 5, 4 & 6 closed |
|
| » | LCD selected | J13 |
Pins 2 & 3 closed |
| EL selected | J13 |
Pins 1 & 2 closed | |
| » | Watchdog system reset select | J14 | Pins 1 & 2 closed |
| Watchdog interrupt select | J14 | Pins 2 & 3 closed | |
» |
Dual power selected | J15 |
Pins 3 & 5, 4 & 6 closed |
| Single power selected | J15 |
Pins 1 & 3, 2 & 4 closed |
|
SIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(2) 1M x 36 |
None |
16MB |
(2) 2M x 36 |
None |
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
32MB |
(2) 4M x 36 |
None |
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
64MB |
(2) 8M x 36 |
None |
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
128MB |
(2) 16M x 36 |
None |
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
| Note: Board accepts EDO memory. | ||
CPU CLOCK SPEED SELECTION |
||
Speed |
J8 | |
55MHz |
Pins 1 & 2, 3 & 4 closed | |
| 60MHz | Pins 1 & 2 closed | |
| » | 66MHz | Open |
| 75MHz | Pins 3 & 4 closed | |
CPU MULTIPLIER SELECTION |
||
Multiplier |
J5 | |
1.5x |
Open | |
| 2x | Pins 5 & 6 closed | |
| » | 2.5x | Pins 3 & 4, 5 & 6 closed |
| 3x | Pins 3 & 4 closed | |
| Note: Applicable to all models except AM K6. | ||
CPU MULTIPLIER SELECTION (AM K6) |
||
Multiplier |
J5 | |
2x |
Pins 5 & 6 closed | |
| 2.5x | Pins 3 & 4, 5 & 6 closed | |
| 3x | Pins 3 & 4 closed | |
| 3.5x | Open | |
| 4x | Pins 1 & 2, 5 & 6 closed | |
| 4.5x | Pins 1 & 2, 3 & 4, 5 & 6 closed | |
| 5x | Pins 1 & 2, 3 & 4 closed | |
| 5.5x | Pins 1 & 3, 2 & 4 closed | |
CPU VOLTAGE SELECTION |
|||||
Voltage |
J1 | J2 | J3 | J4 | |
| 2v | Open | Open | Open | Open | |
| 2.1v | Closed | Open | Open | Open | |
| 2.2v | Open | Closed | Open | Open | |
| 2.4v | Closed | Closed | Open | Open | |
| 2.5v | Open | Open | Closed | Open | |
| 2.6v | Closed | Open | Closed | Open | |
| 2.7v | Open | Closed | Closed | Open | |
| » | 2.8v | Closed | Closed | Closed | Open |
| 2.9v | Open | Open | Open | Closed | |
| 3v | Closed | Open | Open | Closed | |
| 3.1v | Open | Closed | Open | Closed | |
| 3.2v | Closed | Closed | Open | Closed | |
| 3.3v | Open | Open | Closed | Closed | |
| 3.4v | Closed | Open | Closed | Closed | |
| 3.5v | Open | Closed | Closed | Closed | |
| 3.6v | Closed | Closed | Closed | Closed | |
