ADVANTECH CO., LTD.
PCA-6175, PCA-6175H
| Device Type | Single Board Computer |
| Processor | Pentium II |
| Processor Speed | 233/266/300/333MHz |
| Chip Set | Intel 440LX |
| Maximum Onboard Memory | 384MB (EDO & SDRAM supported) |
| Cache | 512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 338mm x 122mm |
| I/O Options | Floppy drive interface, green PC connector, IDE interfaces (2), parallel interface, PS/2 mouse/keyboard port, serial ports (2), IR connector, USB interface, ATX feature connector, Disk-on-Chip |
| Data Bus | 16-bit ISA/32-bit PCI |

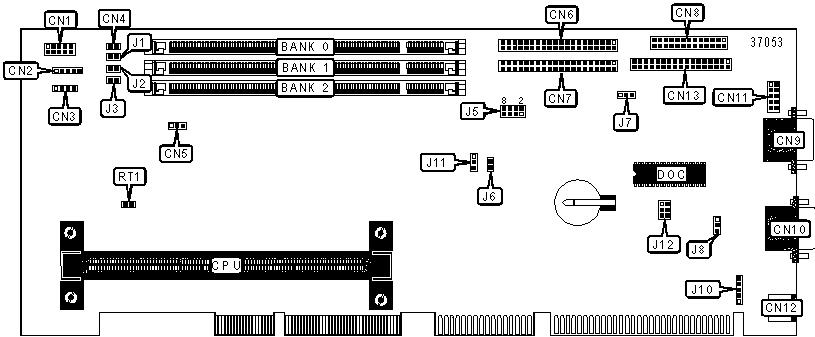

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| IR connector | CN1 | USB interface | CN11 |
| Power LED & keylock | CN2 | PS/2 mouse/keyboard port | CN12 |
| Speaker | CN3 | Floppy drive interface | CN13 |
| IDE interface LED | CN4 | Soft off power supply | J1 |
| CPU fan power | CN5 | Reset switch | J2 |
| IDE interface 1 | CN6 | Green PC connector | J3 |
| IDE interface 2 | CN7 | ATX feature connector | J7 |
| Parallel interface | CN8 | Keyboard interface | J10 |
| Serial port 1 | CN9 | Sensor connector | RT1 |
| Serial port 2 | CN10 | Dish-on-Chip | DOC |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | J6 |
Pins 1 & 2 closed |
| CMOS memory clear | J6 |
Pins 2 & 3 closed |
|
» |
Watchdog timer enabled | J8 | Pins 1 & 2 closed |
| Watchdog timer disabled | J8 | Pins 2 & 3 closed |
|
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports EDO & SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPUs. |
CPU SPEED SELECTION |
||||
Speed |
J5/Pins 1 & 2 | J5/Pins 3 & 4 | J5/Pins 5 & 6 | J5/Pins 7 & 8 |
233MHz |
Open | Closed | Closed | Closed |
| 266MHz | Open | Open | Open | Open |
| 300MHz | Open | Closed | Open | Open |
| 333MHz | Open | Open | Closed | Open |
BUS CLOCK SELECTION |
|
Speed |
J11 |
66.6MHz |
Pins 1 & 2 closed |
| 75MHz | Pins 2 & 3 closed |
DOC ADDRESS SELECTION |
|||
Address |
JP12/Pins 1 & 2 | JP12/Pins 3 & 4 | JP12/Pins 5 & 6 |
| Disabled | Open | Open | Open |
| C800 | Closed | Closed | Closed |
| CC00 | Closed | Closed | Open |
| D000 | Closed | Closed | Closed |
| D400 | Closed | Open | Open |
| D800 | Open | Closed | Closed |
| DC00 | Open | Closed | Open |
| E000 | Open | Open | Closed |
