ADVANTECH CO., LTD.
PCA-6135L
| Device Type | Single Board Computer |
| Processor | 80386SX |
| Processor Speed | 40MHz |
| Chip Set | ALI |
| Maximum Onboard Memory | 32MB |
| BIOS | AMI |
| Dimensions | 185mm x 122mm |
| I/O Options | Floppy drive interface, IDE interface, parallel interface, serial ports (3), PC/104 connectors (16-bit) |
| Data Bus | 16-bit ISA |

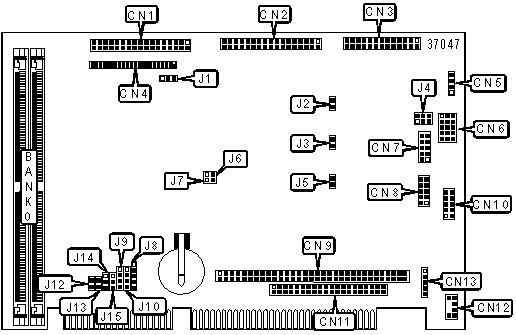

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| IDE interface | CN1 | Serial interface 1 | CN10 |
| Floppy drive interface | CN2 | PC/104 connector (16-bit) | CN11 |
| Parallel interface | CN3 | Keyboard connector | CN12 |
| LCD connector | CN4 | PS/2 keyboard interface | CN13 |
| Power connector | CN5 | Keyboard lock connector | J8 |
| Reserved | CN6 | Speaker | J10 |
| Serial interface 2 (RS-422/485) | CN7 | IDE interface LED | J12 |
| Serial interface 3 (RS-232) | CN8 | Reset switch | J13 |
| PC/104 connector (8-bit) | CN9 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| LCD selected | J1 | Pins 1 & 2 closed | |
| EL selected | J1 | Pins 2 & 3 closed | |
| Internal battery selected | J9 | Pins 2 & 3 closed | |
| External battery selected | J9 |
Pins 1 & 4 closed | |
» |
CMOS memory normal operation | J14 |
Pins 1 & 2 closed |
| CMOS memory clear | J14 |
Pins 2 & 3 closed |
|
| » | Watchdog timer generates system reset | J15 |
Pins 1 & 2 closed |
| Watchdog timer generates through IRQ15 | J15 |
Pins 2 & 3 closed |
|
SIMM CONFIGURATION |
|
Size |
Bank 0 |
8MB |
(2) 1M x 36 |
16MB |
(2) 2M x 36 |
32MB |
(2) 4M x 36 |
SSD BATTERY BACKUP SELECTION |
||||
Function |
J2 | J3 | J5 | |
| SRAM | Closed | Closed | Closed | |
| Flash/EPROM | Open | Open | Open | |
SSD I/O ADDRESS SELECTION |
|||
Size |
J6 | J7 | |
» |
Disable | Closed | Closed |
| 210H | Open | Closed | |
| 220H | Closed | Open | |
| 230H | Open | Open | |
SERIAL SETTINGS |
||
Size |
J4 | |
» |
RS-232 | Pins 1 & 2 closed |
| RS-422 | Pins 3 & 4 closed | |
| RS-485 | Pins 5 & 6 closed | |
