ADVANTECH CO., LTD.

PCA-6135
Device Type Single Board Computer
Processor 80386SX
Processor Speed 40MHz
Chip Set ALI
Video Chip Set Chips and Technology
Maximum Onboard Memory 32MB
Maximum Video Memory 1MB
BIOS AMI
Dimensions 185mm x 122mm
I/O Options Floppy drive interface, IDE interface, parallel interface, serial ports (3), VGA interface, PC/104 connector (16-bit)
Data Bus 16-bit ISA

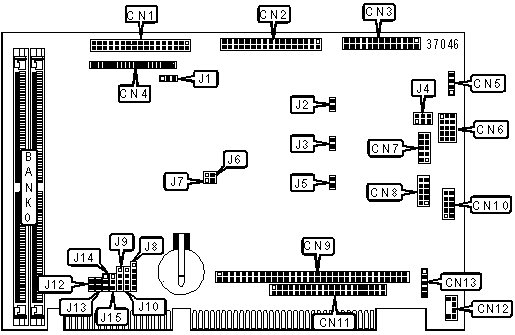

CONNECTIONS

Purpose

Location

Purpose

Location

IDE interface CN1 Serial interface 1 CN10
Floppy drive interface CN2 PC/104 connector (16-bit) CN11
Parallel interface CN3 Keyboard connector CN12
LCD connector CN4 PS/2 keyboard interface CN13
Power connector CN5 Keyboard lock connector J8
VGA interface CN6 Speaker J10
Serial interface 2 (RS-422/485) CN7 IDE interface LED J12
Serial interface 3 (RS-232) CN8 Reset switch J13
PC/104 connector (8-bit) CN9


USER CONFIGURABLE SETTINGS

Function

Label

Position

  LCD selected J1 Pins 1 & 2 closed
  EL selected J1 Pins 2 & 3 closed
  Internal battery selected J9 Pins 2 & 3 closed
  External battery selected

J9

 Pins 1 & 4 closed

»

 CMOS memory normal operation

J14

Pins 1 & 2 closed

  CMOS memory clear

J14

Pins 2 & 3 closed

» Watchdog timer generates system reset

J15

Pins 1 & 2 closed

  Watchdog timer generates through IRQ15

J15

Pins 2 & 3 closed


SIMM CONFIGURATION

Size

Bank 0

8MB

(2) 1M x 36

16MB

(2) 2M x 36

32MB

(2) 4M x 36


SSD BATTERY BACKUP SELECTION

Function

 J2 J3 J5
SRAM Closed Closed Closed
Flash/EPROM Open Open Open


SSD I/O ADDRESS SELECTION

Size

J6 J7

»

 Disable Closed Closed
  210H Open Closed
  220H Closed Open
  230H Open Open


SERIAL SETTINGS

Size

J4

»

 RS-232 Pins 1 & 2 closed
  RS-422 Pins 3 & 4 closed
  RS-485 Pins 5 & 6 closed
