CP31-AG

FIRST INTERNATIONAL COMPUTER, INC.

CP31-AG

Device Type	Mainboard
Processor	Celeron
Processor Speed	233/266/300/333/350/366/400/433/450/466/500/550/600/650/700/750MHz
Chip Set	VIA
Video Chip Set	ATI
Audio Chip Set	Yamaha
Maximum Onboard Memory	512MB (SDRAM supported)
Maximum Video Memory	8MB
Maximum Audio Memory	Unidentified
Cache	0/128KB (located on the celeron CPU)
BIOS	AMI
Dimensions	244mm x 244mm
I/O Options	16-bit ISA slot (1), 32-bit PCI slots (4), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial interface, serial port, VGA feature connector, VGA port, IR connector, USB interface, USB ports (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROMs (2), Wake-on-LAN connector, Digital Flat Panel connector

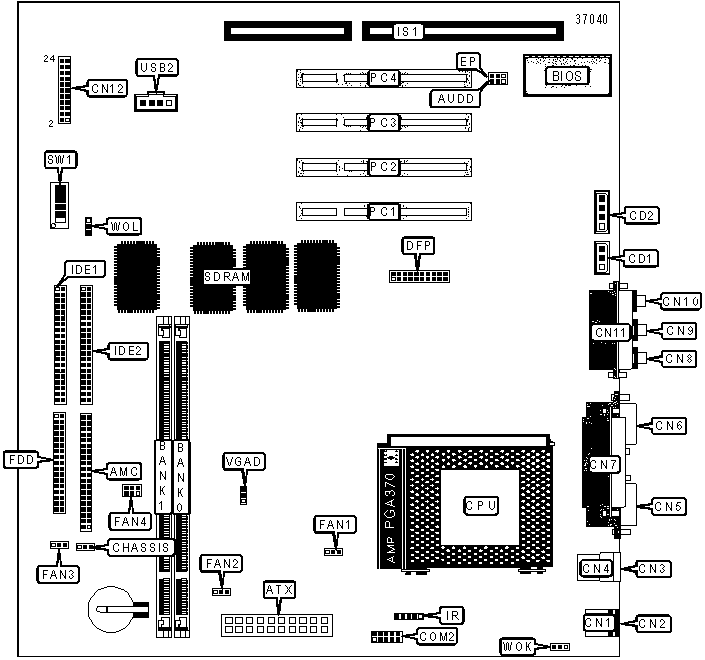

CONNECTIONS
Purpose	Location	Purpose	Location
VGA Feature connector	AMC	Reset switch	CN12/Pins 15 & 17
ATX power connector	ATX	Green PC switch	CN12/Pins 21 & 23
Audio in - CD-ROM 1	CD1	Message LED	CN12/Pins 22 & 24
Audio in - CD-ROM 2	CD2	Chassis intrusion connector	CHASSIS
PS/2 mouse port	CN1	Serial interface	COM2
PS/2 keyboard port	CN2	Digital Flat Panel connector	DFP
USB port 1	CN3	CPU fan power	FAN1
USB port 2	CN4	Chassis fan power 1	FAN2
Serial port	CN5	Chassis fan power 2	FAN3
VGA port	CN6	Power fan	FAN4
Parallel port	CN7	Floppy drive interface	FDD
Line out	CN8	IDE interface 1	IDE1
Line in	CN9	IDE interface 2	IDE2
Microphone in	CN10	IR connector	IR
Game/MIDI port	CN11	16-bit ISA slot	IS1
IDE interface LED	CN12/Pins 1 & 2	32-bit PCI slots	PC1 - PC4
Speaker	CN12/Pins 7, 9, 11 & 13	USB interface	USB2
Power LED	CN12/Pins 8, 10 & 12	Wake-on-keyboard connector	WOK
Soft off power supply	CN12/Pins 14 & 16	Wake-on-LAN connector	WOL

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	On board audio enabled	AUDD	Pins 1 & 2 closed
	On board audio disabled	AUDD	Pins 2 & 3 closed
»	Flash ROM type select (MXIC 28F2000)	EP	Pins 1 & 2 closed
	Flash ROM type select (SST 29EE020, ATMEL 29C020, AMD 28F020, Winbond W29C020)	EP	Pins 2 & 3 closed
»	CMOS memory normal operation	SW1/5	Off
	CMOS memory clear	SW1/5	On
»	Password normal operation	SW1/6	Off
	Password clear	SW1/6	On
»	On board video enabled	VGAD	Pins 1 & 2 closed
	On board video disabled	VGAD	Pins 2 & 3 closed
»	Wake-on-Keyboard disabled	WOK	Pins 2 & 3 closed
	Wake-on-Keyboard enabled	WOK	Pins 1 & 2 closed

DIMM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(1) 1M x 64	None
16MB	(1) 1M x 64	(1) 1M x 64
16MB	(1) 2M x 64	None
24MB	(1) 2M x 64	(1) 1M x 64
32MB	(1) 2M x 64	(1) 2M x 64
32MB	(1) 4M x 64	None
40MB	(1) 4M x 64	(1) 1M x 64
48MB	(1) 4M x 64	(1) 2M x 64
64MB	(1) 4M x 64	(1) 4M x 64
64MB	(1) 8M x 64	None
72MB	(1) 8M x 64	(1) 1M x 64
80MB	(1) 8M x 64	(1) 2M x 64
96MB	(1) 8M x 64	(1) 4M x 64
128MB	(1) 8M x 64	(1) 8M x 64
128MB	(1) 16M x 64	None
136MB	(1) 16M x 64	(1) 1M x 64
144MB	(1) 16M x 64	(1) 2M x 64
160MB	(1) 16M x 64	(1) 4M x 64
192MB	(1) 16M x 64	(1) 8M x 64
256MB	(1) 16M x 64	(1) 16M x 64
256MB	(1) 32M x 64	None
264MB	(1) 32M x 64	(1) 1M x 64
272MB	(1) 32M x 64	(1) 2M x 64
288MB	(1) 32M x 64	(1) 4M x 64
320MB	(1) 32M x 64	(1) 8M x 64
384MB	(1) 32M x 64	(1) 16M x 64
512MB	(1) 32M x 64	(1) 32M x 64
Note: Board supports SDRAM memory.

CACHE CONFIGURATION

Note: 128KB cache is located on the Celeron 300A and greater CPUs.
