FIRST INTERNATIONAL COMPUTER, INC.
CW33+
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 333/366/400/433/466/500MHz |
| Chip Set | Intel 810 |
| Video Chip Set | Intel |
| Audio Chip Set | ESS |
| Maximum Onboard Memory | 512MB (SDRAM supported) |
| Maximum Video Memory | 4MB |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128KB (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | 244mm x 211mm |
| I/O Options | 32-bit PCI slots (3), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial port, serial interface, VGA port, IR connector, USB interface, USB ports (2), ATX power connector, Audio/Modem Riser slot, line in, line out, microphone in, audio in - CD-ROMs (2), Modem audio connector, Wake-on-LAN connector, Wake-on-Ring connector, TV-out connector, Flat Panel display connector |

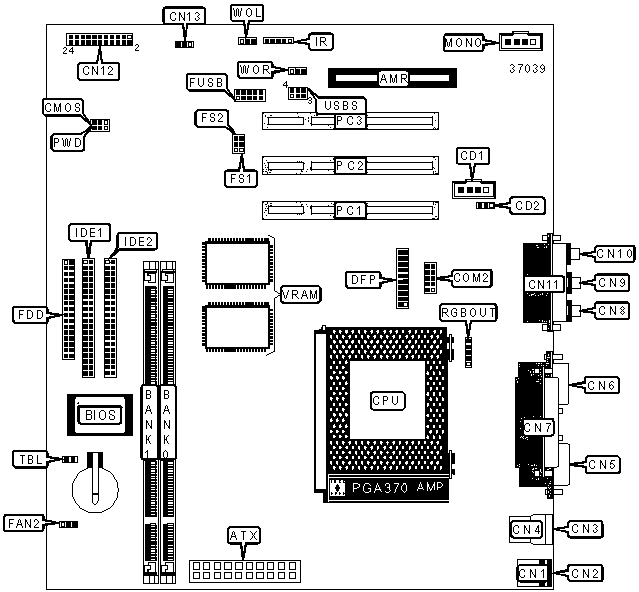

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Audio/Modem Riser slot | AMR |
Reset switch | CN12/Pins 15 & 17 |
| ATX power connector | ATX |
Green PC switch | CN12/Pins 21 & 23 |
| Audio in - CD-ROM 1 | CD1 | Message LED | CN12/Pins 22 & 24 |
| Audio in - CD-ROM 2 | CD2 | Chassis intrusion connector | CN13 |
| PS/2 mouse port | CN1 | Serial interface | COM2 |
| PS/2 keyboard port | CN2 | Digital Flat Panel connector | DFP |
| USB port 1 | CN3 | CPU fan power | FAN1 |
| USB port 2 | CN4 | Chassis fan power | FAN2 |
| Serial port | CN5 | Floppy drive interface | FDD |
| VGA port | CN6 | USB interface | FUSB |
| Parallel port | CN7 | IDE interface 1 | IDE1 |
| Line out | CN8 | IDE interface 2 | IDE2 |
| Line in | CN9 | IR connector | IR |
| Microphone in | CN10 | Audio in - Modem | MONO |
| Game/MIDI port | CN11 | 32-bit PCI slots | PC1 - PC3 |
| IDE interface LED | CN12/Pins 1 & 2 | TV-out connector | RGBOUT |
| Speaker | CN12/Pins 7, 9,11 & 13 | Wake-on-LAN connector | WOL |
| Power LED | CN12/Pins 8, 10 & 12 | Wake-on-Ring connector | WOR |
| Soft off power supply | CN12/Pins 14 & 16 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | CMOS |
Pins 1 & 2 closed |
| CMOS memory clear | CMOS |
Pins 2 & 3 closed |
|
| » | Back USB connector selected | USBS |
Pins 2 & 3, 5 & 6 closed |
| Front USB connector selected | USBS |
Pins 1 & 2, 4 & 5 closed |
|
| » | BIOS top block locked | TBL |
Open |
| BIOS top block unlocked | TBL |
Closed |
|
| » | Password normal operation | PWD | Pins 1 & 2 closed |
| Password clear | PWD | Pins 2 & 3 closed |
|
SIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(2) 1M x 36 |
None |
16MB |
(2) 2M x 36 |
None |
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
32MB |
(2) 4M x 36 |
None |
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
64MB |
(2) 8M x 36 |
None |
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
128MB |
(2) 16M x 36 |
None |
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
256MB |
(2) 32M x 36 |
None |
264MB |
(2) 32M x 36 |
(2) 1M x 36 |
272MB |
(2) 32M x 36 |
(2) 2M x 36 |
288MB |
(2) 32M x 36 |
(2) 4M x 36 |
320MB |
(2) 32M x 36 |
(2) 8M x 36 |
384MB |
(2) 32M x 36 |
(2) 16M x 36 |
512MB |
(2) 32M x 36 |
(2) 32M x 36 |
| Note: Board accepts EDO memory. | ||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A and greater CPUs. |
BUS SIZE SELECTION |
||
Setting |
FS1 | FS2 |
Autodetect |
Pins 2 & 3 closed | Pins 2 & 3 closed |
100MHz |
Pins 2 & 3 closed | Pins 1 & 2 closed |
133MHz |
Pins 1 & 2 closed | Pins 1 & 2 closed |
