FIRST INTERNATIONAL COMPUTER, INC.

CW33

Device Type Mainboard
Processor Celeron
Processor Speed 333/366/400/433/466/500MHz
Chip Set Intel 810
Video Chip Set Intel
Audio Chip Set ESS
Maximum Onboard Memory 512MB (SDRAM supported)
Maximum Audio Memory Unidentified
Cache 0/128KB (located on the Celeron CPU)
BIOS Award
Dimensions 244mm x 211mm
I/O Options 32-bit PCI slots (3), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial port, serial interface, VGA port, IR connector, USB interface, USB ports (2), ATX power connector, Audio/Modem Riser slot, line in, line out, microphone in, audio in - CD-ROMs (2), Modem audio connector, Wake-on-LAN connector, Wake-on-Ring connector, TV-out connector, Flat Panel display connector

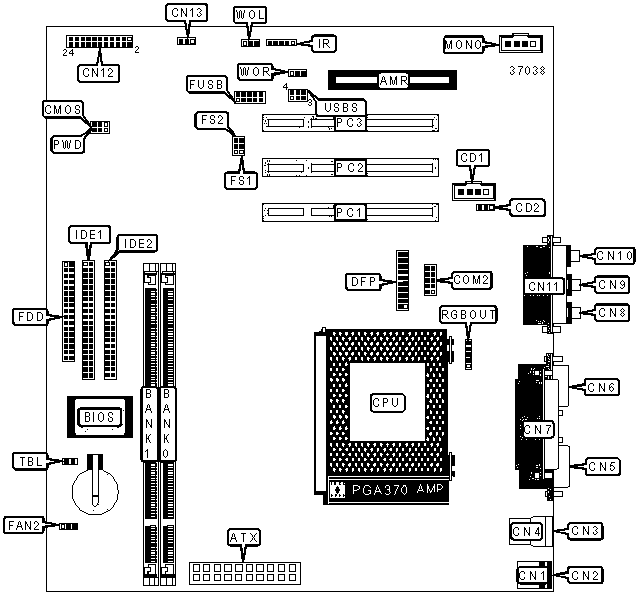

CONNECTIONS

Purpose

Location

Purpose

Location

Audio/Modem Riser slot

AMR

Reset switch CN12/Pins 15 & 17
ATX power connector

ATX

Green PC switch CN12/Pins 21 & 23
Audio in - CD-ROM 1 CD1 Message LED CN12/Pins 22 & 24
Audio in - CD-ROM 2 CD2 Chassis intrusion connector  CN13
PS/2 mouse port CN1 Serial interface COM2
PS/2 keyboard port CN2 Digital Flat Panel connector DFP
USB port 1 CN3 CPU fan power FAN1
USB port 2 CN4 Chassis fan power FAN2
Serial port CN5 Floppy drive interface FDD
VGA port CN6 USB interface FUSB
Parallel port CN7 IDE interface 1 IDE1
Line out CN8 IDE interface 2 IDE2
Line in CN9 IR connector IR
Microphone in CN10 Audio in - Modem MONO
Game/MIDI port CN11 32-bit PCI slots

PC1 - PC3

IDE interface LED CN12/Pins 1 & 2 TV-out connector RGBOUT
Speaker CN12/Pins 7, 9, 11 & 13 Wake-on-LAN connector WOL
Power LED CN12/Pins 8, 10 & 12 Wake-on-Ring connector WOR
Soft off power supply CN12/Pins 14 & 16


USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation

CMOS

Pins 1 & 2 closed

  CMOS memory clear

CMOS

Pins 2 & 3 closed

» Back USB connector selected

USBS

Pins 2 & 3, 5 & 6 closed

  Front USB connector selected

USBS

Pins 1 & 2, 4 & 5 closed

» BIOS top block locked

TBL

Open

  BIOS top block unlocked

TBL

Closed

» Password normal operation PWD

Pins 1 & 2 closed

  Password clear PWD

Pins 2 & 3 closed


SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

160MB

(2) 16M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 16M x 36

256MB

(2) 32M x 36

None

264MB

(2) 32M x 36

(2) 1M x 36

272MB

(2) 32M x 36

(2) 2M x 36

288MB

(2) 32M x 36

(2) 4M x 36

320MB

(2) 32M x 36

(2) 8M x 36

384MB

(2) 32M x 36

(2) 16M x 36

512MB

(2) 32M x 36

(2) 32M x 36

Note: Board accepts EDO memory.


CACHE CONFIGURATION

Note: 128KB cache is located on the Celeron 300A and greater CPUs.


BUS SIZE SELECTION

Setting

FS1 FS2

Autodetect

Pins 2 & 3 closed Pins 2 & 3 closed

100MHz

Pins 2 & 3 closed Pins 1 & 2 closed

133MHz

Pins 1 & 2 closed Pins 1 & 2 closed
