FIRST INTERNATIONAL COMPUTER, INC.
SD11
| Device Type | Mainboard |
| Processor | AM Athlon |
| Processor Speed | 500/550/600/650MHz |
| Chip Set | AMD/VIA |
| Maximum Onboard Memory | 768MB (SDRAM supported) |
| Cache | 128KB |
| BIOS | AMI |
| Dimensions | 305mm x 244mm |
| I/O Options | 16-bit ISA slot (1), 32-bit PCI slots (5), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial port, USB ports (2), ATX power connector, AGP slot, USB interface |

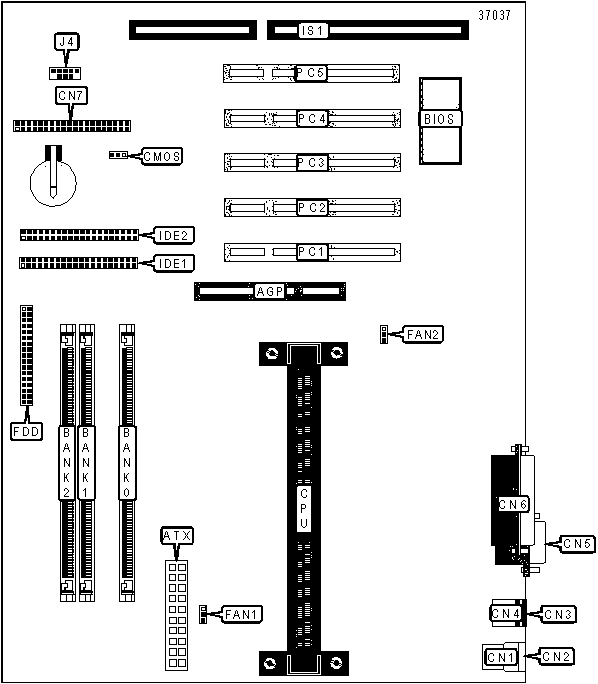

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Power LED (2 pin) | CN7/Pins 11 & 13 |
| ATX power connector | ATX |
Speaker | CN7/Pins 8, 10, 12 & 14 |
| USB port 2 | CN1 | Power switch | CN7/Pins 15 & 16 |
| USB port 1 | CN2 | Reset switch | CN7/Pins 19 & 20 |
| PS/2 mouse port | CN3 | CPU fan power | FAN1 |
| PS/2 keyboard port | CN4 | System fan power | FAN2 |
| Serial port | CN5 | Floppy drive interface | FDD |
| Parallel port | CN6 | IDE interface 1 | IDE1 |
| Green PC connector | CN7/Pins 1 & 2 | IDE interface 2 | IDE2 |
| Green PC LED | CN7/Pins 3 & 4 | USB interface | J4 |
| IDE interface LED | CN7/Pins 5 & 6 | 16-bit ISA slot | IS1 |
| Power LED (3 pin) | CN7/Pins 7, 9 & 11 | 32-bit PCI slots | PC1 - PC5 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | CMOS |
Pins 1 & 2 closed |
| CMOS memory clear | CMOS |
Pins 2 & 3 closed |
|
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM memory. | |||
