FIRST INTERNATIONAL COMPUTER, INC.
KA-6110
| Device Type | Mainboard |
| Processor | Pentium II/Celeron/Pentium III |
| Processor Speed | 233/266/300/333/350/366/400/433/450/466/500/533/550/600/650/666/700/ 733/750/800/866/933/1000MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 1024MB (SDRAM supported) |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 305mm x 202mm |
| I/O Options | 16-bit ISA slots (2), 32-bit PCI slots (5), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, Wake-on-LAN connector, SB-Link connector |

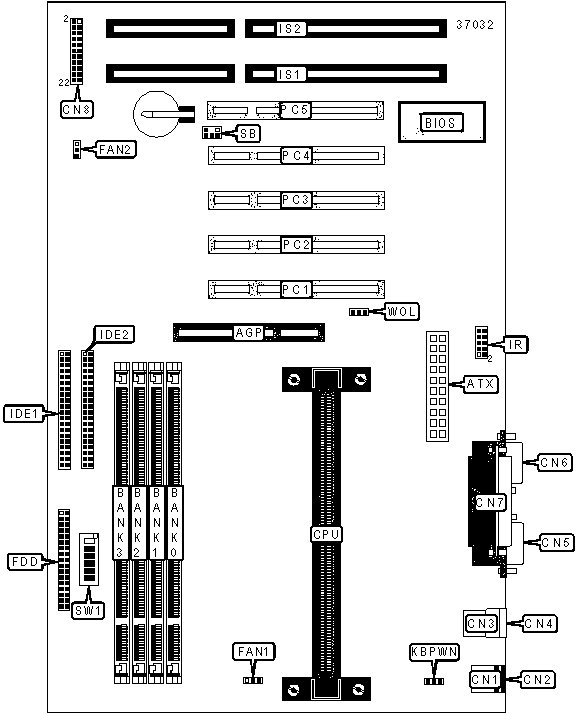

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Reset switch | CN8/Pins 14 & 16 |
| ATX power connector | ATX |
Message LED | CN8/Pins 19 & 21 |
| PS/2 mouse port | CN1 | Green PC connector | CN8/Pins 20 & 22 |
| PS/2 keyboard port | CN2 | CPU fan power | FAN1 |
| USB port 1 | CN3 | Chassis fan power | FAN2 |
| USB port 2 | CN4 | Floppy drive interface | FDD |
| Serial port 1 | CN5 | IDE interface 1 | IDE1 |
| Serial port 2 | CN6 | IDE interface 2 | IDE2 |
| Parallel port | CN7 | IR connector | IR |
| IDE interface LED | CN8/Pins 1 & 2 | 16-bit ISA slots | IS1 - IS2 |
| Power LED | CN8/Pins 5, 7 & 9 | 32-bit PCI slots | PC1 - PC5 |
| Speaker | CN8/Pins 6 & 8 | SB-Link connector | SB |
| Soft off power supply | CN8/Pins 11 & 13 | Wake-on-LAN connector | WOL |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
PS/2 keyboard & mouse power on disabled | KBPWN | Pins 2 & 3 closed |
| PS/2 keyboard & mouse power on enabled | KBPWN | Pins 1 & 2 closed |
|
» |
CMOS memory normal operation | SW1/5 |
Off |
| CMOS memory clear | SW1/5 |
On | |
| » | Password disabled | SW1/6 | Off |
| Password enabled | SW1/6 | On | |
DIMM CONFIGURATION |
||||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
8MB |
(1) 1M x 64 |
None |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
None |
16MB |
(1) 2M x 64 |
None |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
None |
32MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
None |
32MB |
(1) 4M x 64 |
None |
None |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
None |
64MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
None |
64MB |
(1) 8M x 64 |
None |
None |
None |
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
None |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
None |
128MB |
(1) 16M x 64 |
None |
None |
None |
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
None |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
None |
256MB |
(1) 32M x 64 |
None |
None |
None |
272MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
None |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
None |
528MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
544MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
576MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
640MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
None |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
1024MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM memory. | ||||
CACHE CONFIGURATION |
| Note: 512KB cache is located on the Pentium III CPUs. 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
CPU SPEED SELECTION (PENTIUM) |
||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 | SW1/4 |
233MHz |
66MHz |
3.5x |
On | Off | On | Off |
266MHz |
66MHz |
4x |
On | On | Off | On |
300MHz |
66MHz |
4.5x |
On | On | Off | Off |
333MHz |
66MHz |
5x |
On | Off | Off | On |
350MHz |
100MHz |
3.5x |
On | Off | On | Off |
366MHz |
66MHz |
5.5x |
On | Off | Off | Off |
400MHz |
66MHz |
6x |
Off | On | On | On |
400MHz |
100MHz |
4x |
On | On | Off | On |
433MHz |
66MHz |
6.5x |
Off | On | On | Off |
450MHz |
100MHz |
4.5x |
On | On | Off | Off |
466MHz |
66MHz |
7x |
Off | Off | On | On |
466MHz |
133MHz |
3.5x |
On | Off | On | Off |
500MHz |
66MHz |
7.5x |
Off | Off | On | Off |
500MHz |
100MHz |
5x |
On | Off | Off | On |
533MHz |
133MHz |
4x |
On | On | Off | On |
550MHz |
100MHz |
5.5x |
On | Off | Off | Off |
600MHz |
100MHz |
6x |
Off | On | On | On |
600MHz |
133MHz |
4.5x |
On | On | Off | Off |
650MHz |
100MHz |
6.5x |
Off | On | On | Off |
666MHz |
133MHz |
5x |
On | Off | Off | On |
700MHz |
100MHz |
7x |
Off | Off | On | On |
733MHz |
133MHz |
5.5x |
On | Off | Off | Off |
750MHz |
100MHz |
7.5x |
Off | Off | On | Off |
800MHz |
133MHz |
6x |
Off | On | On | On |
866MHz |
133MHz |
6.5x |
Off | On | On | Off |
933MHz |
133MHz |
7x |
Off | Off | On | On |
1000MHz |
133MHz |
7.5x |
Off | Off | On | Off |
