FIRST INTERNATIONAL COMPUTER, INC.
KBI-6130
| Device Type | Mainboard |
| Processor | Celeron/Pentium II/Pentium III |
| Processor Speed | 233/266/300/333/350/366/400/433/450MHz |
| Chip Set | Intel 440BX |
| Video Chip Set | ATI |
| Audio Chip Set | Yamaha |
| Maximum Onboard Memory | 768MB (SDRAM supported) |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Unidentified |
| Dimensions | 244mm x 221mm |
| I/O Options | 16-bit ISA slot, 32-bit PCI slots (3), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial port, serial interface, VGA port, IR connector, USB interface, USB ports (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROMs (2), Wake-on-LAN connector, Flat Panel connector, AMC connector, SB-Link connector |

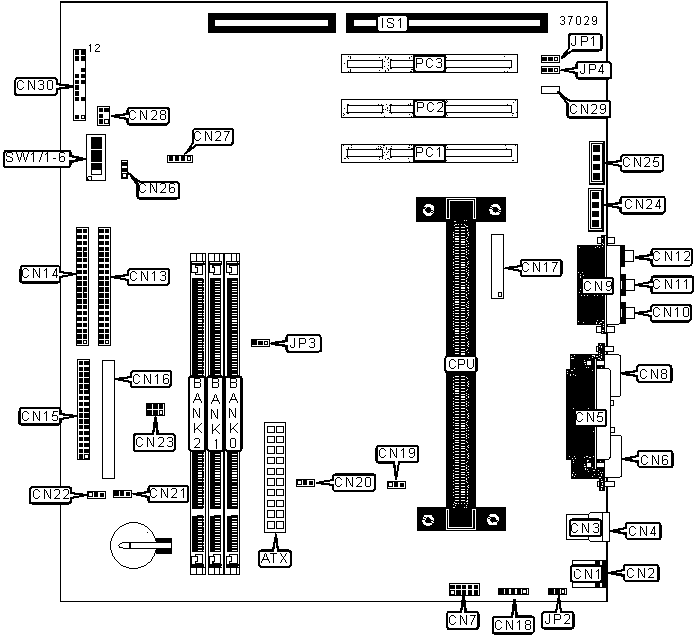

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX |
CPU fan power | CN20 |
| PS/2 mouse port | CN1 | Chassis intrusion connector | CN21 |
| PS/2 keyboard port | CN2 | Chassis fan power 2 | CN22 |
| USB port 1 | CN3 | Fan power | CN23 |
| USB port 2 | CN4 | Audio in - CD-ROM 1 | CN24 |
| Parallel port | CN5 | Audio in - CD-ROM 2 | CN25 |
| Serial port | CN6 | Wake-on-LAN connector | CN26 |
| Serial interface | CN7 | USB interface | CN27 |
| VGA port | CN8 | SB-Link connector | CN28 |
| Game/MIDI port | CN9 | SPDIF connector | CN29 |
| Line out | CN10 | IDE interface LED | CN30/Pins 1 & 13 |
| Line in | CN11 | Speaker | CN30/Pins 4 - 7 |
| Microphone in | CN12 | Reset switch | CN30/Pins 8 & 9 |
| IDE interface 1 | CN13 | Green PC connector | CN30/Pins 11 & 12 |
| IDE interface 2 | CN14 | Power LED | CN30/Pins 16 - 18 |
| Floppy drive interface | CN15 | Power switch | CN30/Pins 19 & 20 |
| AMC connector | CN16 | Message LED connector | CN30/Pins 23 & 24 |
| Flat Panel connector | CN17 | 16-bit ISA slot | IS1 |
| IR connector | CN18 | 32-bit PCI slots | PC1 - PC3 |
| Chassis fan power 1 | CN19 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Keyboard power on disabled | JP1 | Pins 2 & 3 closed |
| Keyboard power on enabled | JP1 | Pins 1 & 2 closed | |
| » | Onboard video enabled | JP3 | Pins 1 & 2 closed |
| Onboard video disabled | JP3 | Pins 2 & 3 closed | |
| » | Onboard audio enabled | JP4 | Pins 1 & 2 closed |
| Onboard audio disabled | JP4 | Pins 2 & 3 closed | |
» |
CMOS memory normal operation | SW1/5 | Off |
| CMOS memory clear | SW1/5 | On | |
| » | Password normal operation | SW1/6 | Off |
|
Password clear | SW1/6 | On |
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 512KB cache is located on the Pentium III CPUs. 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
CPU SPEED SELECTION (CELERON) |
||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 | SW1/4 |
300MHz |
66MHz |
4.5x |
On | Off | On | Off |
333MHz |
66MHz |
5x |
On | Off | Off | On |
366MHz |
66MHz |
5.5x |
On | Off | Off | Off |
| 400MHz | 66MHz | 6x | Off | On | On | On |
| 433MHz | 66MHz | 6.5x | Off | On | On | Off |
CPU SPEED SELECTION (PENTIUM II) |
||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 | SW1/4 |
| 233MHz | 66MHz | 3.5x | On | On | Off | Off |
| 266MHz | 66MHz | 4x | On | Off | On | On |
300MHz |
66MHz |
4.5x |
On | Off | On | Off |
333MHz |
66MHz |
5x |
On | Off | Off | On |
350MHz |
100MHz |
3.5x |
On | On | Off | Off |
| 400MHz | 100MHz | 4x | On | Off | On | On |
| 450MHz | 100MHz | 4.5x | On | Off | On | Off |
CPU SPEED SELECTION (PENTIUM III) |
||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 | SW1/4 |
| 450MHz | 100MHz | 4.5x | On | Off | On | Off |
FLASH BIOS SELECTION |
|
Type |
JP1 |
| AMD 28F020 | Pins 2 & 3 closed |
| ATMEL 29C020 | Pins 2 & 3 closed |
| MXIC 28F2000 | Pins 1 & 2 closed |
| SST 29EE020 | Pins 2 & 3 closed |
