DIAMOND FLOWER, INC.

PW35-L (REV. A+), PW35-S (REV. A+)

Device Type Mainboard
Processor Celeron/Pentium II/Pentium III
Processor Speed 233/266/300/333/350/366/400/433/450/466/500/550/600MHz
Chip Set Intel 810-L/810
Video Chip Set Unidentified
Audio Chip Set Unidentified
Maximum Onboard Memory 512MB (SDRAM supported)
Maximum Video Memory 1MB (SDRAM) Unified Memory Architecture (UMA)
Maximum Audio Memory Unidentified
Cache 0/128/256/512KB (located on the CPU)
BIOS Award
Dimensions 244mm x 210mm
I/O Options 32-bit PCI slots (3), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial port, serial interface, VGA port, AMR, USB ports (2), IR connector, ATX power connector, line in, line out, microphone in, audio in - CD-ROMs (3), audio in - AUX, TAD connector

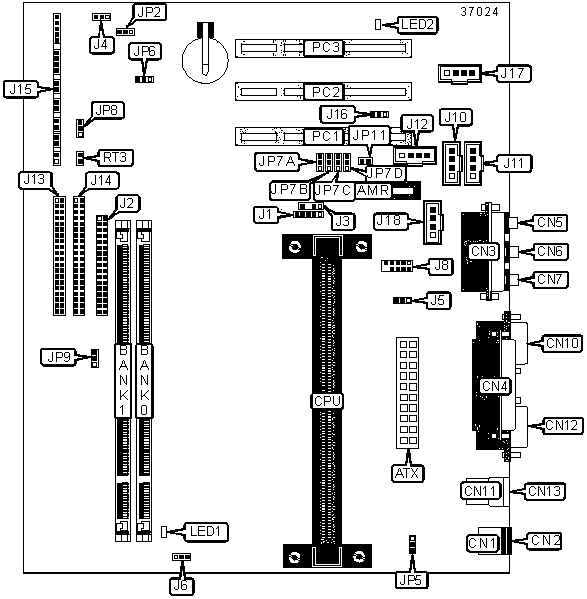

CONNECTIONS

Purpose

Location

Purpose

Location

Audio/modem riser slot AMR Serial interface J8
ATX power connector ATX Audio in - CD-ROM (Sony) J10
PS/2 mouse port CN1 Audio in - CD-ROM (Mitsumi) J11
PS/2 keyboard port CN2 Audio in - CD-ROM (Sony) J12
Game/MIDI port CN3 IDE interface 1 J13
Parallel port CN4 IDE interface 2 J14
Microphone in CN5 IDE interface LED J15/Pins 1 & 2
Line in CN6 Green PC LED J15/Pins 4 & 5
Line out CN7 Power switch J15/Pins 7 & 8
VGA port CN10 Green PC switch J15/Pins 10 & 11
USB port 1 CN11 Reset switch J15/Pins 13 & 14
Serial port CN12 PC speaker J15/Pins 16-19
USB port 2 CN13 Power LED & keylock connector J15/Pins 21 - 25
IR connector J1 Wake-on-LAN connector J16
Floppy drive interface J2 TAD connector J17
Chassis intrusion connector J3 Audio in - AUX J18
Chassis fan power 1 J4 32-bit PCI slots PC1 - PC3
CPU fan power J5 Thermal connector RT3
Chassis fan power 2 J6


USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation JP2 Pins 1 & 2 closed
  CMOS memory clear JP2 Pins 2 & 3 closed
» Wake-on-keyboard/mouse disabled JP5 Pins 1 & 2 closed



Wake-on-keyboard/mouse enabled

JP5

Pins 2 & 3 closed

» Factory configured - do not alter

JP6

Pins 1 & 2 closed

» PC speaker enabled

JP8

Pins 2 & 3 closed

  External speaker enabled

JP8

Pins 1 & 2 closed

» 3.3VSB standby for PCI slots enabled JP11 Closed
  3.3VSB standby for PCI slots disabled JP11 Open


DIMM CONFIGURATION

Size

Bank 0

Bank 1

16MB

(1) 2M x 64

None

32MB

(1) 4M x 64

None

32MB

(1) 2M x 64

(1) 2M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

64MB

(1) 4M x 64

(1) 4M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 16M x 64

None

128MB

(1) 8M x 64

(1) 8M x 64

144MB

(1) 16M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

256MB (1) 32M x 64 None
272MB (1) 32M x 64 (1) 2M x 64
288MB (1) 32M x 64 (1) 4M x 64
320MB (1) 32M x 64 (1) 8M x 64
384MB (1) 32M x 64 (1) 16M x 64
512MB (1) 32M x 64 (1) 32M x 64
Note:   Board supports SDRAM memory.


CACHE CONFIGURATION

Note: 512KB cache is located on the Pentium III CPUs.  256/512KB cache is located on the Pentium II CPUs.  128KB cache is located on the Celeron 300A and greater CPUs..


CPU SPEED SELECTION

Clock speed

JP9

»

Automatic speed selection

Pins 2 & 3 closed


66MHZ

Pins 1 & 2 closed


100MHz

Open


AUDIO CODEC SELECTION

Setting JP7A JP7B JP7C JP7D
» On-board audio CODEC enabled 1 & 2 1 & 2 1 & 2 1 & 2
  On-board audio CODEC disabled 2 & 3 2 & 3 2 & 3 2 & 3
Note:   Pins designated should be in the closed position.


DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Unidentified

On

DIMM standby power on

LED1

Unidentified

Off

DIMM standby power off

LED2

Unidentified

On

PCI standby power on

LED2

Unidentified

Off

PCI standby power off
