DIAMOND FLOWER, INC.
PW65-D (REV. B+)
| Device Type | Mainboard |
| Processor | Celeron/Pentium II/Pentium III |
| Processor Speed | 233/266/300/333/350/366/400/433/450/500/550/600MHz |
| Chip Set | Intel 810 DC100 |
| Video Chip Set | Unidentified |
| Audio Chip Set | Unidentified |
| Maximum Onboard Memory | 512MB (SDRAM supported) |
| Maximum Video Memory | 4MB |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 304mm x 170mm |
| I/O Options | 32-bit PCI slots (5), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial port, serial interface, VGA port, AMR, IR connector, USB ports (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROMs (3), Wake on LAN connector |
CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Audio Modem riser slot | AMR | Chassis fan power 2 | J6 |
| ATX power connector | ATX |
Serial interface | J8 |
| PS/2 mouse port | CN1 | Audio in - CD-ROM (Sony) | J10 |
| PS/2 keyboard connector | CN2 | Audio in - CD-ROM (Mitsumi) | J11 |
| Game/MIDI port | CN3 | Audio in - CD-ROM (Sony) | J12 |
| Parallel port | CN4 | IDE interface 1 | J13 |
| Line in | CN5 | IDE interface 2 | J14 |
| Microphone in | CN6 | IDE interface LED | J15/Pins 1 & 2 |
| Line out | CN7 | Green PC LED | J15/Pins 4 & 5 |
| USB port 2 | CN9 | Power switch | J15/Pins 7 & 8 |
| VGA port | CN10 | Green PC connector | J15/Pins 10 & 11 |
| USB port 1 | CN11 | Reset switch | J15/Pins 13 & 14 |
| Serial port | CN12 | Speaker | J15/Pins 16-19 |
| IR connector | J1 | Power LED & keylock | J15/Pins 21-25 |
| Floppy drive interface | J2 | Wake-on-LAN connector | J16 |
| Chassis intrusion connector | J3 | 32-bit PCI slots | PC1 - PC5 |
| Chassis fan power 1 | J4 | Thermal connector | RT3 |
| CPU fan power | J5 | ||

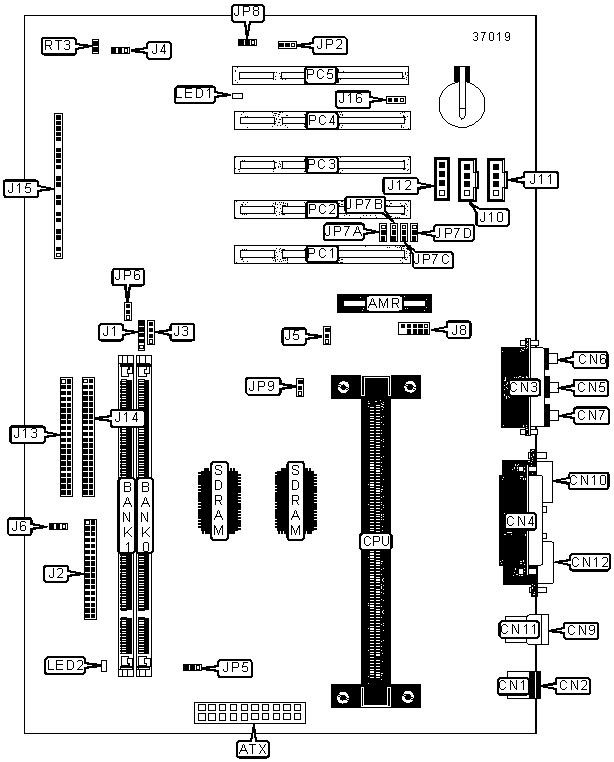

USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP2 | Pins 1 & 2 closed |
| CMOS memory clear | JP2 | Pins 2 & 3 closed | |
| » | Keyboard/mouse power on disabled | JP5 | Pins 1 & 2 closed |
|
Keyboard/mouse power on enabled | JP5 | Pins 2 & 3 closed |
| » | Factory configured - do not alter | JP6 | Pins 1 & 2 closed |
| » | PC speaker enabled for beep message | JP8 | Pins 2 & 3 closed |
| External speaker enabled for beep message | JP8 | PIns 1 & 2 closed | |
| DIMM CONFIGURATION | ||
Size |
Bank 0 |
Bank 1 |
16MB |
(1) 2M x 64 |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
256MB |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 512KB cache is located on the Pentium III CPUs. 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
BUS SPEED SELECTION |
||
| Setting | JP9 | |
| » | Auto-detect | Pins 2 & 3 closed |
| 66MHz | Pins 1 & 2 closed | |
| 100MHz | Open | |
AUDIO CODEC SELECTION |
|||||
| Setting | JP7A | JP7B | JP7C | JP7D | |
| » | On-board audio CODEC enabled | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 |
| On-board audio CODEC disabled | 2 & 3 | 2 & 3 | 2 & 3 | 2 & 3 | |
| Note: Pins designated should be in the closed position. | |||||
DIAGNOSTIC LED(S) |
|||
| LED | Color | Status | Condition |
| LED1 | Unidentified | On | PCI standby power on |
| LED1 | Unidentified | Off | PCI standby power off |
| LED2 | Unidentifed | On | DIMM standby power on |
| LED2 | Unidentified | Off | DIMM standby power off |
