DIAMOND FLOWER. INC.
PA61 (REV. D1+)
| Device Type | Mainboard |
| Processor | Celeron/Pentium II/Pentium III |
| Processor Speed | 233/266/300/333/350/366/400/433/450/500/533/550/600MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 768MB (SDRAM supported) |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 304mm x 170mm |
| I/O Options | 16-bit ISA slots (3), 32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, Wake-on-LAN connector, SB-Link connector |

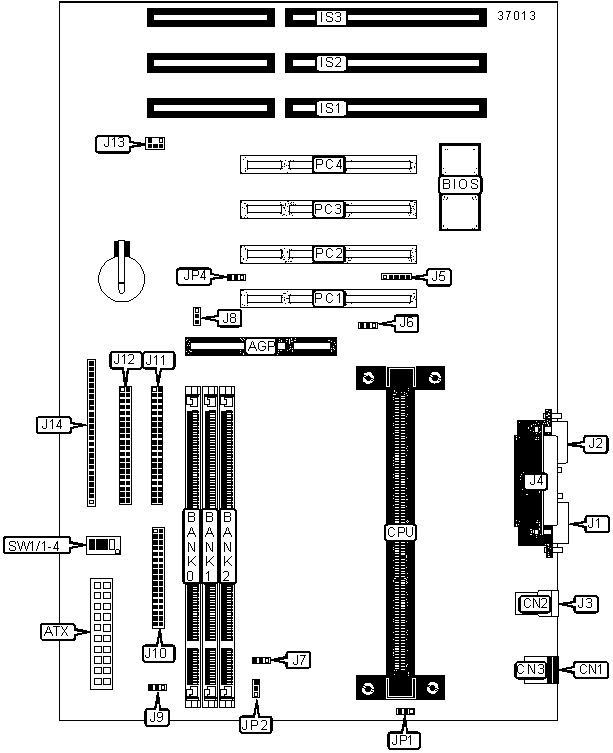

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Chassis fan power | J9 |
| ATX power connector | ATX |
Floppy drive interface | J10 |
| PS/2 mouse port | CN1 | IDE interface 2 | J11 |
| USB port 1 | CN2 | IDE interface 1 | J12 |
| PS/2 keyboard port | CN3 | SB-Link connector | J13 |
| 16-bit ISA slots | IS1-IS3 | IDE interface LED | J14/Pins 1 & 2 |
| Serial port 1 | J1 | Green PC LED | J14/Pins 4 & 5 |
| Serial port 2 | J2 | Power switch | J14/Pins 7 & 8 |
| USB port 2 | J3 | Green PC connector | J14/Pins 10 & 11 |
| Parallel port | J4 | Reset switch | J14/Pins 13 & 14 |
| IR connector | J5 | Speaker | J14/Pins 16-19 |
| AGP fan power | J6 | Power LED & keylock | J14/Pins 21-25 |
| CPU fan power | J7 | 32-bit PCI slots | PC1 - PC4 |
| Wake-on-LAN connector | J8 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Keyboard/mouse power on disabled | JP1 | Pins 1 & 2 closed |
| Keyboard/mouse power on enabled | JP1 | Pins 2 & 3 closed | |
| » | Factory configured - do not alter | JP2 | Pins 1 & 2 closed |
» |
CMOS memory normal operation | JP4 | Pins 1 & 2 closed |
| CMOS memory clear | JP4 | Pins 2 & 3 closed | |
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
16MB |
(1) 2M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM memory. | |||
CACHE CONFIGURATION |
Note: 512KB cache is located on the Pentium III CPUs. 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
CPU SPEED SELECTION (CELERON) |
||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 |
SW1/3 | SW1/4 |
266MHz |
66MHz |
4x |
On | On | Off | On |
300MHz |
66MHz |
4.5x |
Off | On | Off | On |
333MHz |
66MHz |
5x |
On | Off | Off | On |
366MHz |
66MHz |
5.5x |
Off | Off | Off | On |
| 400MHz | 66MHz | 6x | On | On | On | Off |
| 433MHz | 66MHz | 6.5x | Off | On | On | Off |
CPU SPEED SELECTION (PENTIUM II) |
||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 |
SW1/3 | SW1/4 |
233MHz |
66MHz |
3.5x |
Off | Off | On | On |
266MHz |
66MHz |
4x |
On | On | Off | On |
300MHz |
66MHz |
4.5x |
Off | On | Off | On |
333MHz |
66MHz |
5x |
On | Off | Off | On |
350MHz |
100MHz |
3.5x |
Off | Off | On | On |
| 400MHz | 100MHz | 4x | On | On | Off | On |
| 450MHz | 100MHz | 4.5x | Off | On | Off | On |
CPU SPEED SELECTION (PENTIUM III) |
||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 |
SW1/3 | SW1/4 |
| 450MHz | 100MHz | 4.5x | Off | On | Off | On |
| 500MHz | 100MHz | 5x | On | Off | Off | On |
| 533MHz | 133MHz | 4x | On | On | Off | On |
| 550MHz | 100MHz | 5.5x | Off | Off | Off | On |
| 600MHz | 100MHz | 6x | On | On | On | Off |
| 600MHz | 133MHz | 4.5x | Off | On | Off | On |
