DIAMOND FLOWER, INC.
CB60-V3 (REV. AG+)
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 300/333/366/400/433/466/500MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 384MB (SDRAM supported) |
| Cache | 128KB (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | 305mm x 170mm |
| I/O Options | 16-bit ISA slots (3), 32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, Wake-on-LAN connector, SB-link connector |

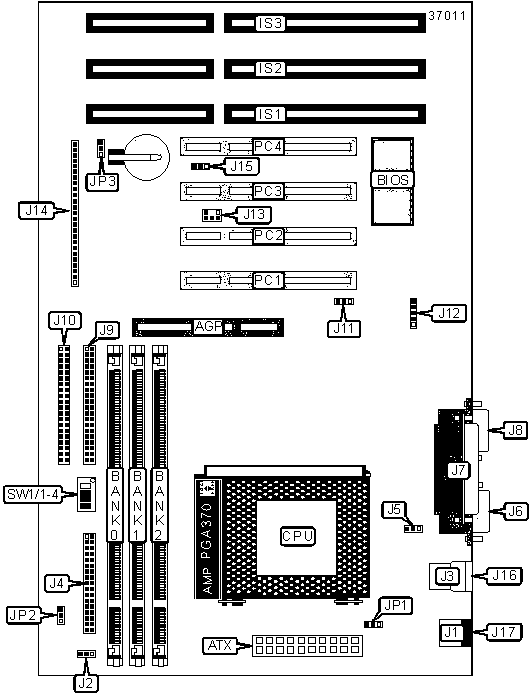

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP port | AGP | IR connector | J12 |
| ATX power connector | ATX | SB-link connector | J13 |
| 16-bit ISA slots | IS1-IS3 | IDE interface LED | J14/Pins 1 & 2 |
| PS/2 mouse port | J1 | Green PC LED | J14/Pins 4 & 5 |
| Chassis fan power | J2 | Power switch | J14/Pins 7 & 8 |
| USB port 1 | J3 | Green PC switch | J14/Pins 10 & 11 |
| Floppy drive interface | J4 | Reset switch | J14/Pins 13 & 14 |
| CPU fan power | J5 | PC speaker | J14/Pins 16 - 19 |
| Serial port 1 | J6 | Power LED & Keylock | J14/Pins 21 - 25 |
| Parallel port | J7 | Wake-on-LAN connector | J15 |
| Serial port 2 | J8 | USB port 2 | J16 |
| IDE interface 2 | J9 | PS/2 keyboard port | J17 |
| IDE interface 1 | J10 | 32-bit PCI slots | PC1 - PC4 |
| AGP fan power | J11 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Keyboard/Mouse power on disabled | JP1 | Pins 1 & 2 closed |
| Keyboard/Mouse power on enabled | JP1 | Pins 2 & 3 closed | |
» |
CMOS memory normal operation | JP3 | Pins 1 & 2 closed |
| CMOS memory clear | JP3 |
Pins 2 & 3 closed |
|
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
16MB |
(1) 2M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A and greater CPUs. |
CPU SPEED SELECTION |
||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 |
300MHz |
66MHz |
4.5x |
Off | On | Off | On |
333MHz |
66MHz |
5x |
On | Off | Off | On |
366MHz |
66MHz |
5.5x |
Off | Off | Off | On |
400MHz |
66MHz |
6x |
On | On | On | Off |
433MHz |
66MHz |
6.5x |
Off | On | On | Off |
| 466MHz | 66MHz | 7x | On | Off | On | Off |
| 500MHz | 66MHz | 7.5x | Off | Off | On | Off |
EXTERNAL CLOCK SPEED SELECTION |
||
| Setting | JP2 | |
| » | Auto-detect |
Pins 1 & 2 closed |
66MHz |
Pins 2 & 3 closed | |
100MHz |
Open | |
