DIAMOND FLOWER, INC.
CW65-L (REV. A+), CW65-S (REV. A+)
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 300/333/366/400/433/466/500MHz |
| Chip Set | Intel 810-L/810 |
| Video Chip Set | Unidentified |
| Audio Chip Set | Unidentified |
| Maximum Onboard Memory | 512MB (SDRAM supported) |
| Maximum Video Memory | 1MB (shared from system memory) |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128KB (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | 305mm x 180mm |
| I/O Options | 32-bit PCI slots (5), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial port, serial interface, VGA port, Audio Modem Riser slot, IR connector, USB ports (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROMs (3), Wake-on-Lan connector, |

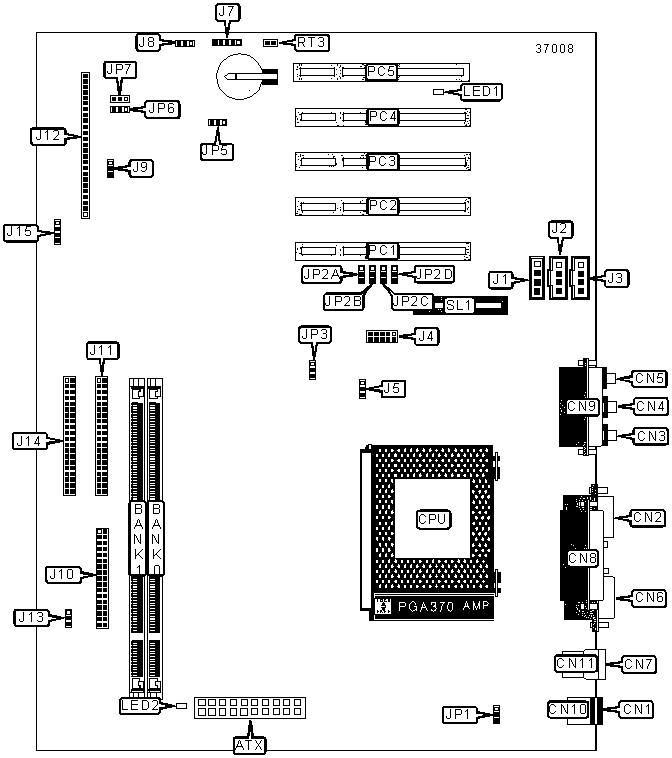

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX |
Chassis fan power 1 | J8 |
| PS/2 keyboard port | CN1 | Wake-on-LAN connector | J9 |
| VGA port | CN2 | Floppy drive interface | J10 |
| Line out | CN3 | IDE interface 2 | J11 |
| Line in | CN4 | IDE interface LED | J12/Pins 1 & 2 |
| Microphone in | CN5 | Green PC LED | J12/Pins 4 & 5 |
| Serial port | CN6 | Power switch | J12/Pins 7 & 8 |
| USB port 1 | CN7 | Green PC connector | J12/Pins 10 & 11 |
| Parallel port | CN8 | Reset switch | J12/Pins 13 & 14 |
| Game/MIDI port | CN9 | Speaker | J12/Pins 16-19 |
| PS/2 mouse port | CN10 | Power LED & keylock | J12/Pins 21-25 |
| USB port 2 | CN11 | Chassis fan power 2 | J13 |
| Audio in - CD-ROM (Sony) | J1 | IDE interface 1 | J14 |
| Audio in - CD-ROM (Sony) | J2 | Chasis intrusion connector | J15 |
| Audio in - CD-ROM (Mitsumi) | J3 | 32-bit PCI slots | PC1 - PC5 |
| Serial interface | J4 | Thermal connector | RT3 |
| CPU fan power | J5 | Audio Modem Riser slot | SL1 |
| IR connector | J7 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Keyboard/mouse power on disabled | JP1 | Pins 1 & 2 closed |
|
Keyboard/mouse power on enabled | JP1 | Pins 2 & 3 closed |
» |
CMOS memory normal operation | JP5 | Pins 1 & 2 closed |
| CMOS memory clear | JP5 | Pins 2 & 3 closed | |
| » | Factory configured - do not alter | JP6 | Pins 1 & 2 closed |
| » | Beep message sent to PC speaker | JP7 | Pins 2 & 3 closed |
| Beep message sent to external speaker | JP7 | Pins 1 & 2 closed | |
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
16MB |
(1) 2M x 64 |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
256MB |
(1) 32M x 64 |
None |
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A and greater CPUs. |
EXTERNAL CLOCK SPEED SELECTION |
||
Speed |
JP3 | |
| » | Auto-detect | Pins 1 & 2 closed |
| 66MHz | Pins 2 & 3 closed | |
| 100MHz | Open | |
AUDIO MODEM RISER SETTINGS |
|||||
Setting |
JP2A |
JP2B |
JP2C |
JP2D |
|
| » | Modem Riser only/CODEC enabled |
1 & 2 |
1 & 2 |
1 & 2 | 1 & 2 |
Audio Modem Riser/CODEC disabled |
2 & 3 |
2 & 3 |
2 & 3 | 2 & 3 | |
| Note: Pins designated should be in the closed position. | |||||
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
| LED1 | Unidentified |
On |
PCI standby power is on |
| LED1 | Unidentified |
Off |
PCI standby power is off |
LED2 |
Unidentified |
On |
DIMM standby power is on |
| LED2 | Unidentified | Off |
DIMM standby power is off |
