CHAINTECH COMPUTER COMPANY, LTD.
CT-6ESA2
| Device Type | Mainboard |
| Processor | Celeron/Pentium II |
| Processor Speed | 233/266/300/333MHz |
| Chip Set | Intel 440EX |
| Audio Chip Set | ESS |
| Maximum Onboard Memory | 256MB (EDO & SDRAM supported) |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 244mm x 220mm |
| I/O Options | 16-bit ISA slots (2), 32-bit PCI slots (2), floppy drive interface, game port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, line in, line out, microphone in, audio in - CD-ROM, SB-Link connector, Wake-on-LAN connector |

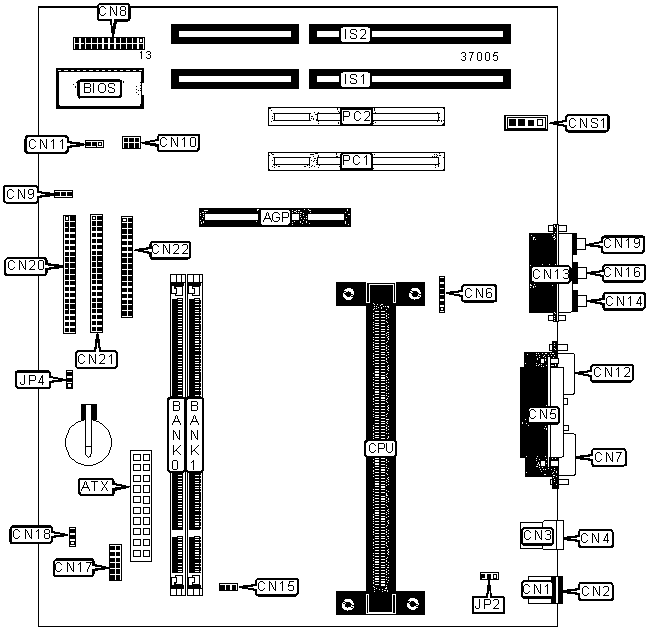

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Chassis fan power | CN9 |
| ATX power connector | ATX |
SB-Link connector | CN10 |
| PS/2 mouse port | CN1 | Wake-on-LAN connector | CN11 |
| PS/2 keyboard port | CN2 | Serial port 2 | CN12 |
| USB port 1 | CN3 | Game port | CN13 |
| USB port 2 | CN4 | Line out | CN14 |
| Parallel port | CN5 | CPU fan power | CN15 |
| IR connector | CN6 | Line in | CN16 |
| Serial port 1 | CN7 | FAN-II connector | CN17 |
| Turbo LED | CN8/Pins 1 & 2 | Chasis intrusion connector | CN18 |
| Green PC connector | CN8/Pins 4 & 5 | Microphone in | CN19 |
| Green PC LED | CN8/Pins 6 & 7 | IDE interface 1 | CN20 |
| Reset switch | CN8/Pins 9 & 10 | IDE interface 2 | CN21 |
| IDE interface LED | CN8/Pins 11 & 12 | Floppy drive interface | CN22 |
| Power LED & keylock | CN8/Pins 13-17 | Audio in - CD-ROM | CNS1 |
| Speaker | CN8/Pins 19-22 | 32-bit ISA slots | IS1-IS2 |
| Power switch | CN8/Pins 23 & 24 | 32-bit PCI slots | PC1 - PC2 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Keyboard power on disabled | JP2 | Pins 1 & 2 closed |
| Keyboard power on enabled | JP2 | Pins 2 & 3 closed | |
| » | CMOS memory normal operation | JP4 | Pins 1 & 2 closed |
|
CMOS memory clear | JP4 | Pins 2 & 3 closed |
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
16MB |
(1) 2M x 64 |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports EDO & SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
