CHAINTECH COMPUTER COMPANY, LTD.
CT-6ATA2
| Device Type | Mainboard |
| Processor | Celeron/Pentium II/Pentium III |
| Processor Speed | 266/300/333/350/366/400/450/500/550MHz |
| Chip Set | VIA |
| Audio Chip Set | Unidentified |
| Maximum Onboard Memory | 384MB (SDRAM supported) |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 305mm x 190mm |
| I/O Options | 16-bit ISA slots (2), 32-bit PCI slots (4), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial ports (2), Audio Modem Riser slot, IR connector, USB interface, USB ports (2), ATX power connector, AGP slot, line in, line out, microphone in, audio in - CD-ROM, audio in - AUX, Wake-on-LAN connector |

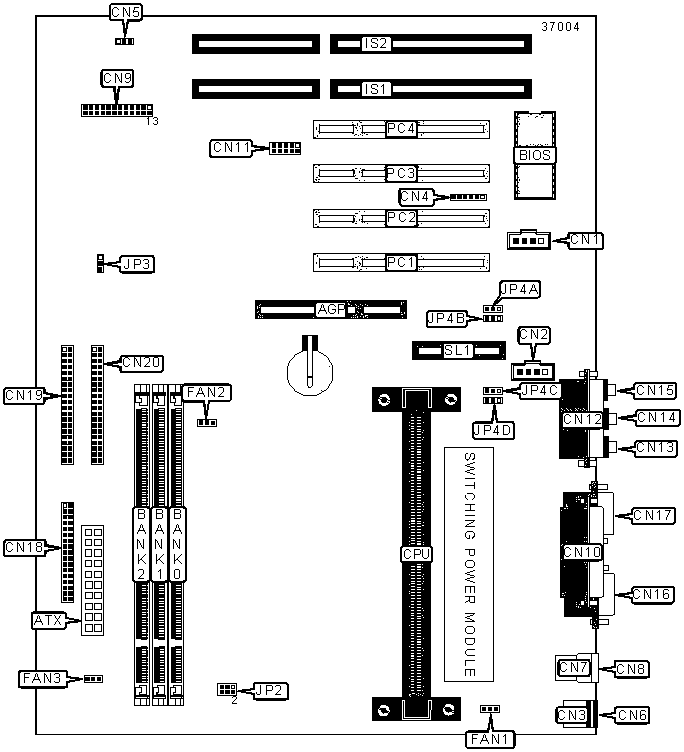

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Parallel port | CN10 |
| ATX power connector | ATX |
USB interface | CN11 |
| Audio in - CD-ROM | CN1 | Game/MIDI port | CN12 |
| Audio in - AUX | CN2 | Line out | CN13 |
| PS/2 mouse port | CN3 | Line in | CN14 |
| IR connector | CN4 | Microphone in | CN15 |
| Wake-on-LAN connector | CN5 | Serial port 1 | CN16 |
| PS/2 keyboard port | CN6 | Serial port 2 | CN17 |
| USB port 1 | CN7 | Floppy drive interface | CN18 |
| USB port 2 | CN8 | IDE interface 2 | CN19 |
| Turbo LED | CN9/Pins 1 & 2 | IDE interface 1 | CN20 |
| Green PC connector | CN9/Pins 4 & 5 | CPU fan power | FAN1 |
| Green PC LED | CN9/Pins 6 & 7 | System fan power | FAN2 |
| Reset switch | CN9/Pins 9 & 10 | Case fan power | FAN3 |
| IDE interface LED | CN9/Pins 11 & 12 | 16-bit ISA slots | IS1-IS2 |
| Power LED | CN9/Pins 13-15 | 32-bit PCI slots | PC1 - PC4 |
| Speaker | CN9/Pins 19-22 | Audio Modem Riser slot | SL1 |
| Power switch | CN9/Pins 23 & 24 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP3 | Pins 1 & 2 closed |
| CMOS memory clear | JP3 | Pins 2 & 3 closed | |
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
16MB |
(1) 2M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 512KB cache is located on the Pentium III CPUs. 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
EXTERNAL CLOCK SPEED SELECTION |
|||
Setting |
JP2/Pins 1 & 2 | JP2/Pins 3 & 4 | JP2/Pins 5 & 6 |
66MHz |
Open | Open | Open |
100MHz |
Closed | Closed | Open |
133MHz |
Open | Closed | Closed |
AUDIO MODEM RISER SLOT SETTINGS |
|||||
Setting |
JP4A |
JP4B |
JP4C |
JP4D |
|
| » | Modem Riser only/CODEC enabled |
1 & 2 |
1 & 2 |
1 & 2 | 1 & 2 |
Audio Modem Riser/CODEC disabled |
2 & 3 |
2 & 3 |
2 & 3 | 2 & 3 | |
| Note: Pins designated should be in the closed position. | |||||
