BOARDRUNNER

5MVP3 (VER. 4.0)
Device Type Mainboard
Processor CX 6X86/CX 6X86L/CX 686MX/CX M II/AM K5/AM K6/ AM K6-2/Pentium/Pentium MMX
Processor Speed 100/120/133/150/166/180/200/233/250/266/300/333/350/380/400MHz
Chip Set VIA
Maximum Onboard Memory 768MB (EDO & SDRAM supported)
Cache 512/1024KB
BIOS Award
Dimensions 250mm x 220mm
I/O Options 16-bit ISA slots (3), 32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel interface, PS/2 mouse interface, AT keyboard port, serial interfaces (2), IR connector, USB interfaces (2), ATX power connector, AT power connector, AGP slot, Wake-on-LAN connector

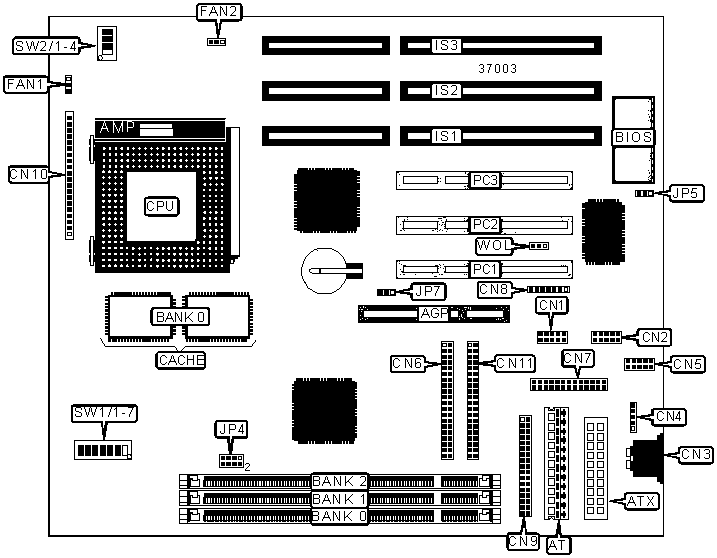

CONNECTIONS

Purpose

Location

Purpose

Location

AGP slot

AGP

Power LED & keylock

CN10/pins 1 – 5

AT power connector

AT

 Speaker

CN10/pins 7 – 10

ATX power connector

ATX

Reset switch

CN10/pins 12 & 13

Serial interface 1

CN1

Turbo LED

CN10/pins 15 & 16

Serial interface 2

CN2

Green PC connector

CN10/pins 18 & 19

AT keyboard port

CN3

 IDE interface LED

CN10/pins 21 & 22

PS/2 mouse interface

CN4

IDE interface 2

CN11
USB interface

CN5

 Fan power 1

Fan1
IDE interface 1

CN6

 Fan power 2

Fan2
Parallel interface

CN7

16-bit ISA slots

IS1-IS3
IR connector

CN8

32-bit PCI slots

PC1 – PC3

Floppy drive interface

CN9

 Wake on LAN connector

WOL


USER CONFIGURABLE SETTINGS

Function

Label

Position

  Flash BIOS voltage select 5v

JP5

Pins 1 & 2 closed

  Flash BIOS voltage select 12v

JP5

Pins 2 & 3 closed

»

CMOS memory normal operation

JP7

Pins 1 & 2 closed

  CMOS memory clear

JP7

Pins 2 & 3 closed


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

8MB

(1) 1M x 64

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

16MB

(1) 2M x 64

None

None

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

None

32MB

(1) 4M x 64

None

None

32MB

(1) 2M x 64

(1) 1M x 64

(1) 1M x 64

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

48MB

(1) 4M x 64

(1) 1M x 64

(1) 1M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

80MB

(1) 8M x 64

(1) 1M x 64

(1) 1M x 64

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

96MB

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

144MB

(1) 16M x 64

(1) 1M x 64

(1) 1M x 64

160MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

192MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

256MB

(1) 32M x 64

None

None

256MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

272MB

(1) 32M x 64

(1) 1M x 64

(1) 1M x 64

288MB

(1) 32M x 64

(1) 2M x 64

(1) 2M x 64

320MB

(1) 32M x 64

(1) 4M x 64

(1) 4M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

384MB

(1) 32M x 64

(1) 8M x 64

(1) 8M x 64

512MB

(1) 32M x 64

(1) 32M x 64

None

512MB

(1) 32M x 64

(1) 16M x 64

(1) 16M x 64

768MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64
Note:  Board supports EDO & SDRAM memory.  Maximum EDO is 768MB.  Maximum SDRAM is 384MB.


DIMM FREQUENCY CONFIGURATION

Frequency

SW1/7

Same as CPU clock

Off

66MHz

On


DIMM VOLTAGE CONFIGURATION

Voltage

JP4

3.3v

Pins 5 & 6, 7 & 8 closed

5v

Pins 1 & 2, 3 & 4 closed


CACHE CONFIGURATION

Size

Bank 0

512KB

(2) 36K x 32

1MB

(2) 128 x 32


CPU SPEED SELECTION (CX 6X86)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

 SW1/4 SW1/5

SW1/6

150MHz

60MHz

2x

 On Off Off On On On

166MHz

66MHz

2x

 On Off Off Off On On


CPU SPEED SELECTION (CX 6X86L)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

 SW1/4 SW1/5

SW1/6

150MHz

60MHz

2x

On Off Off On On On

166MHz

66MHz

2x

On Off Off Off On On

200MHz

75MHz

2x

On Off Off On On Off


CPU SPEED SELECTION (CX 6X86MX)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

 SW1/4 SW1/5

SW1/6

166MHz

66MHz

2x

On Off Off Off On On

166MHz

60MHz

2.5x

On On Off On On On

200MHz

75MHz

2x

On Off Off On On Off

233MHz

75MHz

2.5x

On On Off On On Off

266MHz

83MHz

2.5x

On On Off Off On Off


CPU SPEED SELECTION (CX M II)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

 SW1/4 SW1/5

SW1/6

300MHz

66MHz

3.5x

Off Off Off Off On On
333MHz 83MHz 3x Off On Off Off On Off


CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

 SW1/4 SW1/5

SW1/6

100MHz

66MHz

1.5x

Off Off Off Off On On

133MHz

66MHz

1.5x

Off Off Off Off On On

166MHz

66MHz

2.5x

On On Off Off On On


CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

 SW1/4 SW1/5

SW1/6

166MHz

66MHz

2.5x

On On Off Off On On

200MHz

66MHz

3x

Off On Off Off On On

233MHz

66MHz

3.5x

Off Off Off Off On On

266MHz

66MHz

4x

On Off On Off On On

300MHz

66MHz

4.5x

On On On Off On On


CPU SPEED SELECTION (AM K6-2)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

 SW1/4 SW1/5

SW1/6

250MHz

100MHz

2.5x

On On Off Off Off Off

266MHz

66MHz

4x

On Off On Off On On

300MHz

100MHz

3x

Off On Off Off Off Off

333MHz

95MHz

3.5x

Off Off Off On Off Off
350MHz 100MHz 3x Off Off Off Off Off Off
380MHz 95MHz 4x On Off On On Off Off
400MHz 100MHz 4x On Off On Off Off Off


CPU SPEED SELECTION (PENTIUM)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

 SW1/4 SW1/5

SW1/6

100MHz

66MHz

1.5x

Off Off Off Off On On

120MHz

60MHz

2x

On Off Off On On On

133MHz

66MHz

2x

On Off Off Off On On

150MHz

60MHz

2.5x

On On Off On On On

166MHz

66MHz

2.5x

On On Off Off On On

180MHz

60MHz

3x

Off On Off On On On

200MHz

66MHz

3x

Off On Off Off On On


CPU SPEED SELECTION (PENTIUM MMX)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

 SW1/4 SW1/5

SW1/6

200MHz

66MHz

3x

Off On Off Off On On

233MHz

66MHz

3.5x

Off Off Off Off On On


CPU VOLTAGE SELECTION (DUAL)

V core

SW2/1 SW2/2

SW2/3

 SW2/4

2.1v

On Off Off Off

2.2v

Off On Off Off

2.7v

On On On Off

2.8v

Off Off Off On

2.9v

On Off Off On

3.2v

Off Off On On


CPU VOLTAGE SELECTION (SINGLE)

V core

SW2/1 SW2/2

SW2/3

 SW2/4

3.3v

On Off On On

3.5v

On On On On
