BOARDRUNNER

5MVP3 (VER. 1.4)
Device Type Mainboard
Processor CX 6X86/CX 6X86L/CX 686MX/CX M II/AM K5/AM K6/ AM K6-2/Pentium/Pentium MMX
Processor Speed 90/100/120/133/150/166/180/200/233/250/266/300MHz
Chip Set VIA
Maximum Onboard Memory 256MB (EDO & SDRAM supported)
Cache 512/1024KB
BIOS Award
Dimensions 240mm x 220mm
I/O Options 16-bit ISA slots (3), 32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel interface, PS/2 mouse interface, AT keyboard port, serial interfaces (2), IR connector, USB interfaces (2), ATX power connector, AT power connector, AGP slot, Wake-on-LAN connector

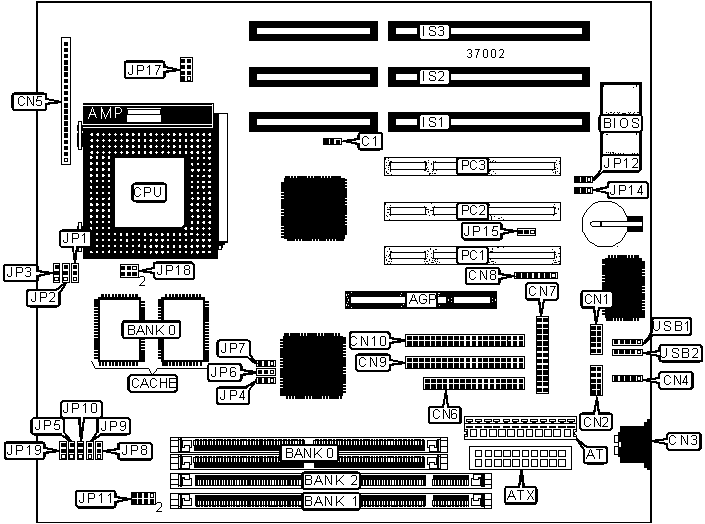

CONNECTIONS

Purpose

Location

Purpose

Location

AGP slot

AGP

Green PC connector

CN5/pins 18 & 19

AT power connector

AT

 IDE interface LED

CN5/pins 21 & 22

ATX power connector

ATX

Floppy drive interface

CN6

CPU fan power

C1

Parallel interface

CN7

Serial interface 2

CN1

IR connector

CN8

Serial interface 1

CN2

IDE interface 2

CN9

AT keyboard port

CN3

 IDE interface 1

CN10

PS/2 mouse interface

CN4

16-bit ISA slots

IS1-IS3
Power LED & keylock

CN5/pins 1 – 5

Wake-on-LAN connector

JP15

Speaker

CN5/pins 7 – 10

32-bit PCI slots

PC1 – PC3

Reset switch

CN5/pins 12 & 13

USB interface 1

USB1

Turbo LED

CN5/pins 15 & 16

USB interface 2

USB2


USER CONFIGURABLE SETTINGS

Function

Label

Position

  Flash BIOS voltage select 5v

JP12

Pins 1 & 2 closed

  Flash BIOS voltage select 12v

JP12

Pins 2 & 3 closed

»

CMOS memory normal operation

JP14

Pins 1 & 2 closed

  CMOS memory clear

JP14

Pins 2 & 3 closed


SIMM CONFIGURATION

Size

Bank 0

8MB

(2) 1M x 36

16MB

(2) 2M x 36

32MB

(2) 4M x 36

64MB

(2) 8M x 36

128MB

(2) 16M x 36

256MB (2) 32M x 36
Note:  Board accepts EDO memory.
Note:  Do not mix SIMM and DIMM memory.


DIMM CONFIGURATION

Size

Bank 1

Bank 2

8MB

(1) 1M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

16MB

(1) 2M x 64

None

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

32MB

(1) 4M x 64

None

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

64MB

(1) 8M x 64

None

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

128MB

(1) 16M x 64

None

136MB

(1) 16M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64
Note:  Board supports EDO & SDRAM memory.
Note:  Do not mix SIMM and DIMM memory.


DIMM FREQUENCY CONFIGURATION

Frequency

JP4

JP5

Same as CPU clock

Pins 2 & 3 closed

Pins 1 & 2 closed

66MHz

Pins 1 & 2 closed

Pins 2 & 3 closed


DIMM VOLTAGE CONFIGURATION

Voltage

JP11

3.3v

Pins 5 & 6, 7 & 8 closed

5v

Pins 1 & 2, 3 & 4 closed


CACHE CONFIGURATION

Size

Bank 0

512KB

(2) 36K x 32

1MB

(2) 128 x 32


CPU SPEED SELECTION (CX 6X86)

CPU speed

Clock speed

Multiplier

JP1

JP2

JP3

JP6

150MHz

60MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

166MHz

66MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CX 6X86, CON’T)

CPU speed

Clock speed

Multiplier

JP7

JP8

JP9

JP10

150MHz

60MHz

2x

2 & 3

2 & 3

1 & 2

1 & 2

166MHz

66MHz

2x

2 & 3

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CX 6X86L)

CPU speed

Clock speed

Multiplier

JP1

JP2

JP3

JP6

150MHz

60MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

166MHz

66MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

200MHz

75MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CX 6X86L, CON’T)

CPU speed

Clock speed

Multiplier

JP7

JP8

JP9

JP10

150MHz

60MHz

2x

2 & 3

2 & 3

1 & 2

1 & 2

166MHz

66MHz

2x

2 & 3

1 & 2

1 & 2

1 & 2

200MHz

75MHz

2x

2 & 3

1 & 2

2 & 3

1 & 2

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CX 6X86MX)

CPU speed

Clock speed

Multiplier

JP1

JP2

JP3

JP6

166MHz

66MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

166MHz

60MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3

200MHz

75MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

233MHz

75MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3

266MHz

83MHz

2.5x

2 & 3

2 & 3

1 & 2

1 & 2

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CX 6X86MX, CON’T)

CPU speed

Clock speed

Multiplier

JP7

JP8

JP9

JP10

166MHz

66MHz

2x

2 & 3

1 & 2

1 & 2

1 & 2

166MHz

60MHz

2.5x

2 & 3

2 & 3

1 & 2

1 & 2

200MHz

75MHz

2x

2 & 3

1 & 2

2 & 3

1 & 2

233MHz

75MHz

2.5x

2 & 3

1 & 2

2 & 3

1 & 2

266MHz

83MHz

2.5x

2 & 3

2 & 3

2 & 3

1 & 2

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CX M II)

CPU speed

Clock speed

Multiplier

JP1

JP2

JP3

JP6

300MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

2 & 3

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CX M II, CON’T)

CPU speed

Clock speed

Multiplier

JP7

JP8

JP9

JP10

300MHz

66MHz

3.5x

2 & 3

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

JP1

JP2

JP3

JP6

90MHz

60MHz

1.5x

1 & 2

1 & 2

1 & 2

2 & 3

100MHz

66MHz

1.5x

1 & 2

1 & 2

1 & 2

2 & 3

120MHz

60MHz

1.5x

1 & 2

1 & 2

1 & 2

2 & 3

133MHz

66MHz

1.5x

1 & 2

1 & 2

1 & 2

2 & 3

166MHz

66MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K5, CON’T)

CPU speed

Clock speed

Multiplier

JP7

JP8

JP9

JP10

90MHz

60MHz

1.5x

2 & 3

2 & 3

1 & 2

1 & 2

100MHz

66MHz

1.5x

2 & 3

1 & 2

1 & 2

1 & 2

120MHz

60MHz

1.5x

2 & 3

2 & 3

1 & 2

1 & 2

133MHz

66MHz

1.5x

2 & 3

1 & 2

1 & 2

1 & 2

166MHz

66MHz

2.5x

2 & 3

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

JP1

JP2

JP3

JP6

166MHz

66MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3

200MHz

66MHz

3x

1 & 2

2 & 3

1 & 2

2 & 3

233MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

2 & 3

266MHz

66MHz

4x

2 & 3

1 & 2

2 & 3

2 & 3

300MHz

66MHz

4.5x

2 & 3

2 & 3

2 & 3

2 & 3

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K6, CON’T)

CPU speed

Clock speed

Multiplier

JP7

JP8

JP9

JP10

166MHz

66MHz

2.5x

2 & 3

1 & 2

1 & 2

1 & 2

200MHz

66MHz

3x

2 & 3

1 & 2

1 & 2

1 & 2

233MHz

66MHz

3.5x

2 & 3

1 & 2

1 & 2

1 & 2

266MHz

66MHz

4x

2 & 3

1 & 2

1 & 2

1 & 2

300MHz

66MHz

4.5x

2 & 3

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K6-2)

CPU speed

Clock speed

Multiplier

JP1

JP2

JP3

JP6

250MHz

100MHz

2.5x

2 & 3

2 & 3

1 & 2

1 & 2

266MHz

66MHz

4x

2 & 3

1 & 2

2 & 3

2 & 3

300MHz

100MHz

3x

1 & 2

2 & 3

1 & 2

1 & 2

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K6-2, CON’T)

CPU speed

Clock speed

Multiplier

JP7

JP8

JP9

JP10

250MHz

100MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3

266MHz

66MHz

4x

2 & 3

1 & 2

1 & 2

1 & 2

300MHz

100MHz

3x

2 & 3

2 & 3

1 & 2

2 & 3

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (PENTIUM)

CPU speed

Clock speed

Multiplier

JP1

JP2

JP3

JP6

90MHz

60MHz

1.5x

1 & 2

1 & 2

1 & 2

2 & 3

100MHz

66MHz

1.5x

1 & 2

1 & 2

1 & 2

2 & 3

120MHz

60MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

133MHz

66MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

150MHz

60MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3

166MHz

66MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3

180MHz

60MHz

3x

1 & 2

2 & 3

1 & 2

2 & 3

200MHz

66MHz

3x

1 & 2

2 & 3

1 & 2

2 & 3

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (PENTIUM, CON’T)

CPU speed

Clock speed

Multiplier

JP7

JP8

JP9

JP10

90MHz

60MHz

1.5x

2 & 3

2 & 3

1 & 2

1 & 2

100MHz

66MHz

1.5x

2 & 3

1 & 2

1 & 2

1 & 2

120MHz

60MHz

2x

2 & 3

2 & 3

1 & 2

1 & 2

133MHz

66MHz

2x

2 & 3

1 & 2

1 & 2

1 & 2

150MHz

60MHz

2.5x

2 & 3

2 & 3

1 & 2

1 & 2

166MHz

66MHz

2.5x

2 & 3

1 & 2

1 & 2

1 & 2

180MHz

60MHz

3x

2 & 3

2 & 3

1 & 2

1 & 2

200MHz

66MHz

3x

2 & 3

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (PENTIUM MMX)

CPU speed

Clock speed

Multiplier

JP1

JP2

JP3

JP6

166MHz 66MHz 2.5x 2 & 3 2 & 3 1 & 2 2 & 3

200MHz

66MHz

3x

1 & 2

2 & 3

1 & 2

2 & 3

233MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

2 & 3

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (PENTIUM MMX, CON’T)

CPU speed

Clock speed

Multiplier

JP7

JP8

JP9

JP10

166MHz 66MHz 2.5x

2 & 3

1 & 2

1 & 2

1 & 2

200MHz

66MHz

3x

2 & 3

1 & 2

1 & 2

1 & 2

233MHz

66MHz

3.5x

2 & 3

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.


CPU TYPE SELECTION

Type

JP19

AM K6-300MHz

Pins 2 & 3 closed

All other CPU types

Pins 1 & 2 closed


CPU VOLTAGE CONNECTOR SELECTION

Voltage

JP18

Single

Open

Dual

Pins 1 & 2, 3 & 4, 5 & 6 closed


CPU VOLTAGE SELECTION (DUAL)

V core

JP17

2.1v

Pins 1 & 2 closed

2.2v

Pins 3 & 4 closed

2.7v

Pins 1 & 2, 3 & 4, 5 & 6 closed

2.8v

Pins 7 & 8 closed

2.9v

Pins 1 & 2, 7 & 8 closed

3.2v

Pins 5 & 6, 7 & 8 closed


CPU VOLTAGE SELECTION (SINGLE)

V core

JP17

3.3v

Pins 1 & 2, 5 & 6, 7 & 8 closed

3.5v

Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed
