NMC INTERNATIONAL
NMC 6BAX
Device Type | Mainboard |
Processor | Pentium II |
Processor Speed | 200/233/266/300/333/350/366/400/450MHz |
Chip Set | Intel 440BX |
Maximum Onboard Memory | 768MB (EDO & SDRAM supported) |
Cache | 256/512KB (located on the Pentium II CPU) |
BIOS | Award |
Dimensions | Unidentified |
I/O Options | 16-bit ISA slots (3), 32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, IR connector, PS/2 mouse port, PS/2 keyboard port, serial ports (2), USB ports (2), ATX power connector, AGP slot, SB-Link connector, Wake-on-LAN connector |

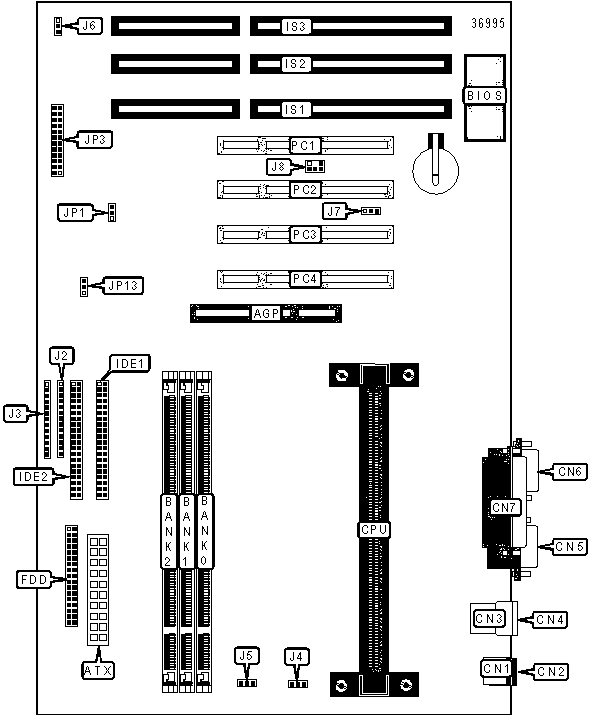

CONNECTIONS |
|||
Purpose | Location |
Purpose | Location |
AGP slot | AGP |
Reset switch | J2/Pins 1 & 2 |
ATX power connector | ATX |
Speaker | J2/Pins 4 - 7 |
PS/2 mouse port | CN1 | Power LED & keylock | J2/Pins 9 - 13 |
PS/2 keyboard port | CN2 | IR connector | J3/Pins 1 - 5 |
USB port 1 | CN3 | IDE interface LED | J3/Pins 7 & 8 |
USB port 2 | CN4 | Turbo LED | J3/Pins 9 & 10 |
Serial port 1 | CN5 | Soft off power connector | J3/Pins 12 & 13 |
Serial port 2 | CN6 | CPU fan power | J4 |
Parallel port | CN7 | Chassis fan power | J5 |
Floppy drive interface | FDD | Power fan | J6 |
IDE interface 1 | IDE1 | Wake-on-LAN connector | J7 |
IDE interface 2 | IDE2 | SB-Link connector | J8 |
16-bit ISA slots | IS1 - IS3 | 32-bit PCI slots | PC1 - PC4 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP1 |
Pins 1 & 2 closed |
CMOS memory clear | JP1 |
Pins 2 & 3 closed |
|
» | Factory configued - do not alter | JP3 | Pins 13 & 14 Reserved |
» | Factory configued - do not alter | JP3 | Pins 15 & 16 Reserved |
» | Factory configued - do not alter | JP3 | Pins 17 & 18 Reserved |
» | Factory configued - do not alter | JP3 | Pins 19 & 20 Reserved |
» | Factory configued - do not alter | JP3 | Pins 21 & 22 Reserved |
» | Factory configued - do not alter | JP3 | Pins 22 & 24 Reserved |
» | Power-on Keyboard disabled | JP13 | Pins 2 & 3 closed |
Power-on Keyboard enabled | JP13 | Pins 1 & 2 closed | |
Auto bus clock selected | JP100 | Pins 1 & 2 closed |
|
100MHz bus clock selected | JP100 | Pins 2 & 3 closed |
DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
*272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
*288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
*320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
*384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
*512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
*512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
*768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
Note: Board
supports EDO & SDRAM memory. Maximum SDRAM is 384MB. Maximum EDO is 768MB. *: Memory configurations require EDO memory. |
CACHE CONFIGURATION |
Note: 256KB/512KB cache is located on the Pentium II CPUs. |
CPU SPEED SELECTION |
|||
CPU Speed |
Clock Speed | JP3 | |
|
200MHz | 66MHz | Pins 1 & 2 closed |
233MHz | 66MHz | Pins 3 & 4 closed | |
» | 266MHz | 66MHz | Pins 5 & 6 closed |
300MHz | 66MHz | Pins 7 & 8 closed | |
300MHz | 100MHz | Pins 1 & 2 closed | |
333MHz | 66MHz | Pins 9 & 10 closed | |
350MHz | 100MHz | Pins 3 & 4 closed | |
366MHz | 66MHz | Pins 11 & 12 closed | |
400MHz | 100MHz | Pins 5 & 6 closed | |
450MHz | 100MHz | Pins 7 & 8 closed | |
500MHz | 100MHz | Pins 9 & 10 closed | |
550MHz | 100MHz | Pins 11 & 12 closed |
