NMC INTERNATIONAL
NMC 6LDX
| Device Type | Mainboard |
| Processor | Pentium II |
| Processor Speed | 233/266/300/333MHz |
| Chip Set | Intel 440LX |
| Maximum Onboard Memory | 768MB (SDRAM supported) |
| Cache | 256/512KB (located on the Pentium II CPU) |
| BIOS | Award |
| Dimensions | 300mm x 190mm |
| I/O Options | 16-bit ISA slots (3), 32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial ports (2), IR connector, ATX power connector, AGP slot, Wake-on-LAN connector, SB-Link connector, USB ports (2) |

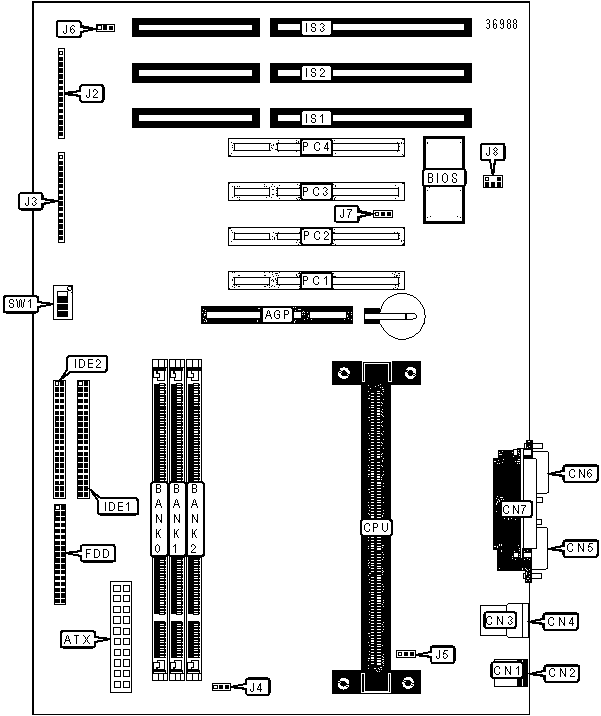

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Power LED & Keylock | J2/Pins 1 - 5 |
| ATX power connector | ATX |
Speaker | J2/Pins 7 - 10 |
| PS/2 mouse port | CN1 | Reset switch | J2/Pins 12 & 13 |
| PS/2 keyboard port | CN2 | IR connector | J3/Pins 1 - 5 |
| USB port 2 | CN3 | IDE connector LED | J3/Pins 7 & 8 |
| USB port 1 | CN4 | Turbo LED | J3/Pins 9 & 10 |
| Serial port 1 | CN5 | Power switch | J3/Pins 12 & 13 |
| Serial port 2 | CN6 | CPU fan power | J4 |
| Parallel port | CN7 | Power fan | J5 |
| Floppy drive interface | FDD | Chassis fan power | J6 |
| IDE interface 1 | IDE1 | Wake-on-LAN connector | J7 |
| IDE interface 2 | IDE2 | SB-Link connector | J8 |
| 16-bit ISA slots | IS1 - IS3 | 32-bit PCI slots | PC1 - PC4 |
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
*272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
*288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
*320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
*384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
*512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
*512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
*768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board
supports EDO & SDRAM memory. Maximum SDRAM memory is 384MB. Maximum EDO memory is
768MB. *: Memory configurations require EDO memory. |
|||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPUs. |
CPU SPEED SELECTION |
||||
CPU speed |
SW1/1 | SW1/2 | SW1/3 | SW1/4 |
233MHz |
On | Off | Off | On |
266MHz |
Off | On | On | On |
300MHz |
Off | On | Off | On |
333MHz |
Off | Off | On | On |
