NMC INTERNATIONAL
NMC 6LCX
| Device Type | Mainboard |
| Processor | Pentium II |
| Processor Speed | 233/266/300/333MHz |
| Chip Set | Intel 440LX |
| Maximum Onboard Memory | 768MB (EDO & SDRAM supported) |
| Cache | 256/512KB (located on the Pentium II CPU) |
| BIOS | Award |
| Dimensions | 190mm x 300mm |
| I/O Options | 16-bit ISA slots (3), 32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, USB ports (2), serial ports (2), IR connector, ATX power connector, AGP slot |

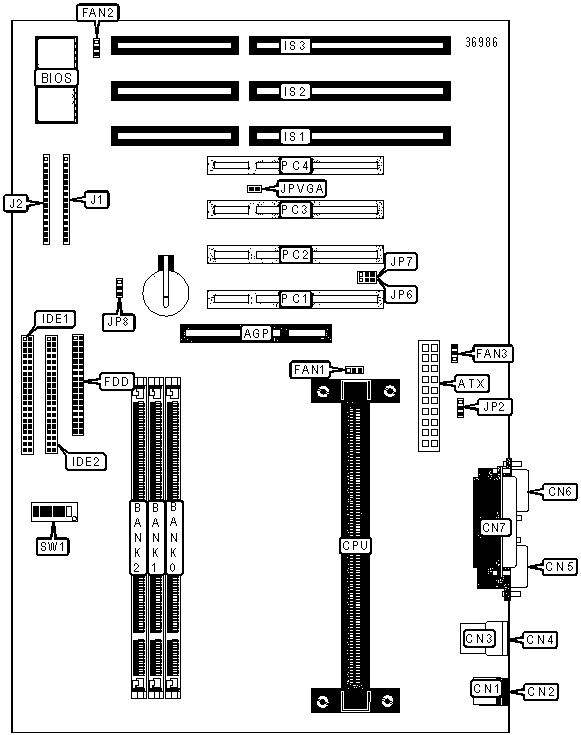

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
IDE interface 1 | IDE1 |
| ATX power connector | ATX |
IDE interface 2 | IDE2 |
| PS/2 mouse port | CN1 | 16-bit ISA slots | IS1 - IS3 |
| PS/2 keyboard port | CN2 | IDE interface LED | J1/Pins 1 - 4 |
| USB port 1 | CN3 | IR connector | J1/Pins 6 - 10 |
| USB port 2 | CN4 | Power switch | J1/Pins 12 & 13 |
| Serial port 1 | CN5 | Green PC connector | J1/Pins 14 & 15 |
| Serial port 2 | CN6 | Speaker | J2/Pins 1 - 4 |
| Parallel port | CN7 | Reset switch | J2/Pins 5 & 6 |
| CPU fan power | FAN1 | Power LED & keylock | J2/Pins 8 - 12 |
| Chassis fan power | FAN2 | Turbo LED | J2/Pins 14 & 15 |
| Power fan | FAN3 | 32-bit PCI slots | PC1 - PC4 |
| Floppy drive interface | FDD | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Power on keyboard disabled | JP2 | Pins 1 & 2 closed |
| Power on keyboard enabled | JP2 | Pins 2 & 3 closed | |
» |
CMOS memory normal operation | JP8 |
Pins 1 & 2 closed |
| CMOS memory clear | JP8 |
Pins 2 & 3 closed |
|
| » | Normal VGA card selected | JPVGA | Closed |
| Special VGA card selected | JPVGA | Open | |
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
*384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
*512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
*512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
*768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board
supports EDO & SDRAM memory. Maximum SDRAM is 384MB. Maximum EDO is 768MB. *: EDO supported only. |
|||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPUs. |
USB PORT REDIRECTION |
|||
Function |
JP6 | JP7 | |
| » | Redirect USB port to USB interface | Pins 2 & 3 closed | Pins 2 & 3 closed |
| Redirect USB port to AGP interface | Pins 1 & 2 closed | Pins 1 & 2 closed | |
CPU SPEED SELECTION |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
233MHz |
66MHz |
3.5x |
On | Off | Off | On | Off | Off |
266MHz |
66MHz |
4x |
Off | On | On | On | Off | Off |
300MHz |
66MHz |
4.5x |
Off | On | Off | On | Off | Off |
333MHz |
66MHz |
5x |
Off | Off | On | On | Off | Off |
