BOARDRUNNER
6MZX1
| Device Type | Mainboard |
| Processor | Pentium II |
| Processor Speed | 233/266/300/333/350/400/450MHz |
| Chip Set | Intel 440ZX |
| Video Chip Set | MPACT 2 |
| Audio Chip Set | MPACT 2 |
| Maximum Onboard Memory | 512MB (EDO & SDRAM supported) |
| Maximum Video Memory | 8MB |
| Maximum Audio Memory | Unidentified |
| Cache | 256/512KB (located on the Pentium II CPU) |
| BIOS | Award |
| Dimensions | 244mm x 244mm |
| I/O Options | 16-bit ISA slots (2), 32-bit PCI slots (2), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial interface, serial port, VGA port, IR connector, USB ports (2), ATX power connector, line in, line out, microphone in, Audio in - CD-ROM, Line-out, Audio in - Auxilliary, Audio in - Tuner, Wake-on-LAN connector, SB-Link connector |

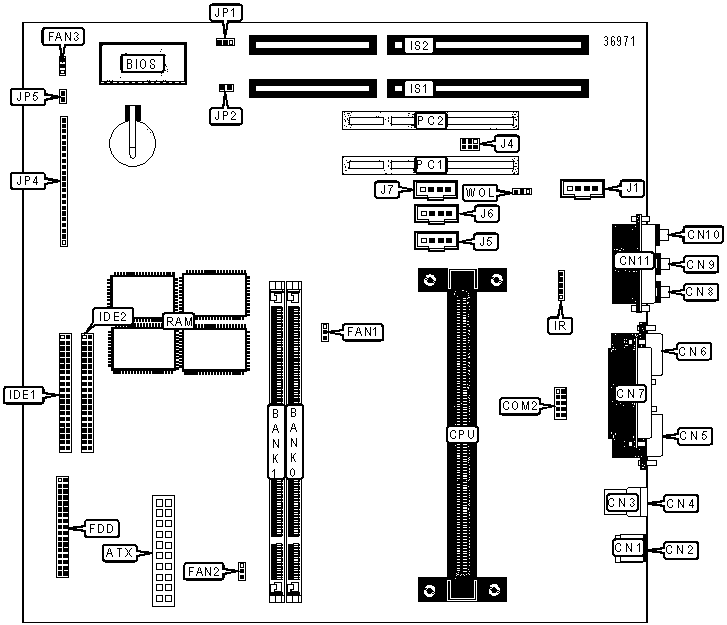

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX |
IDE interface 1 | IDE1 |
| PS/2 mouse port | CN1 | IDE interface 2 | IDE2 |
| PS/2 keyboard port | CN2 | IR connector | IR |
| USB port 1 | CN3 | 16-bit ISA slots | IS1 - IS2 |
| USB port 2 | CN4 | Line-out | J1 |
| Serial port | CN5 | SB-Link connector | J4 |
| VGA port | CN6 | Audio in - Auxilliary | J5 |
| Parallel port | CN7 | Audio in - Tuner | J6 |
| Line out | CN8 | Audio in - CD-ROM | J7 |
| Line in | CN9 | Power switch | JP4/Pins 1 & 2 |
| Microphone in | CN10 | Turbo LED | JP4/Pins 4 & 5 |
| Game/Midi port | CN11 | IDE interface LED | JP4/Pins 7 & 8 |
| Serial interface | COM2 | Reset switch | JP4/Pins 10 &11 |
| Fan power 1 | FAN1 | Speaker | JP4/Pins 13 -16 |
| Fan power 2 | FAN2 | Power LED & keylock | JP4/Pins 18 - 22 |
| Fan power 3 | FAN3 | Green PC connector | JP5 |
| Floppy drive interface | FDD | 32-bit PCI slots | PC1 - PC2 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| Flash BIOS voltage select 5v | JP1 | Pins 1 & 2 closed |
|
| Flash BIOS voltage select 12v | JP1 | Pins 2 & 3 closed |
|
» |
CMOS memory normal operation | JP2 |
Open |
| CMOS memory clear | JP2 |
Closed |
|
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
*256MB |
(1) 32M x 64 |
None |
*264MB |
(1) 32M x 64 |
(1) 1M x 64 |
*272MB |
(1) 32M x 64 |
(1) 2M x 64 |
*288MB |
(1) 32M x 64 |
(1) 4M x 64 |
*320MB |
(1) 32M x 64 |
(1) 8M x 64 |
*384MB |
(1) 32M x 64 |
(1) 16M x 64 |
*512MB |
(1) 32M x 64 |
(1) 32M x 64 |
| Note:
Board supports EDO & SDRAM memory. * Supported only by EDO RAM. |
||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPUs. |
