BOARDRUNNER
6P2M810
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 300/333/366/400/433/466MHz |
| Chip Set | Intel |
| Video Chip Set | Unidentified |
| Audio Chip Set | Unidentified |
| Maximum Onboard Memory | 512MB (SDRAM supported) |
| Maximum Video Memory | Unidentified |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128KB (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | 244mm x 220mm |
| I/O Options (backplane) | 32-bit PCI slots (3), floppy drive interface, game/MIDI port, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial port, serial interface, VGA port, IR connector, USB connectors (2), ATX power connector, Audio/Modem Riser slot, line in, line out, microphone in, audio in - CD-ROM, SB-Link connector, TV-Out connector, Wake-on-LAN connector |

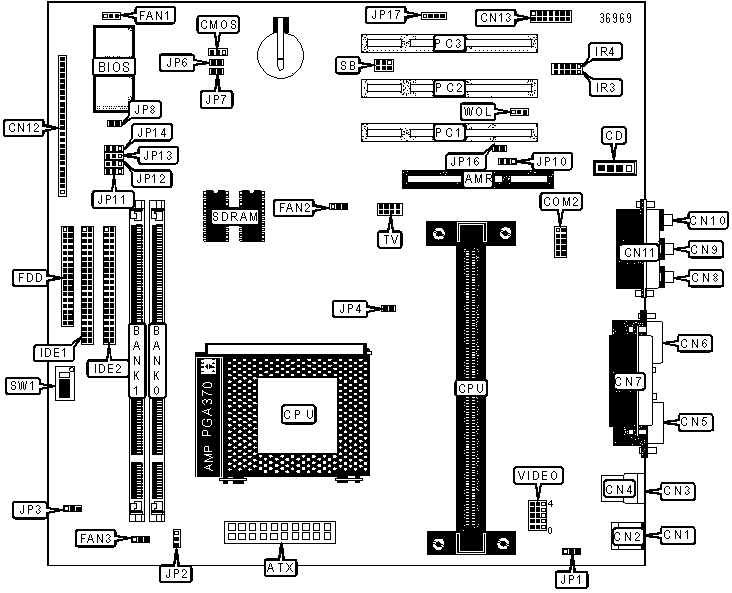

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Audio/Modem Riser slot | AMR |
IDE interface LED | CN12/Pins 15 & 16 |
| ATX power connector | ATX |
Turbo LED | CN12/Pins 18 & 19 |
| Audio in - CD-ROM | CD | Power switch | CN12/Pins 21 & 22 |
| PS/2 mouse port | CN1 | Unidentified | CN13 |
| PS/2 keyboard port | CN2 | Serial interface | COM2 |
| USB port 1 | CN3 | Fan power 1 | FAN1 |
| USB port 2 | CN4 | Fan power 2 | FAN2 |
| Serial port | CN5 | Fan power 3 | FAN3 |
| VGA port | CN6 | Floppy drive interface | FDD |
| Parallel port | CN7 | IDE interface 1 | IDE1 |
| Line out | CN8 | IDE interface 2 | IDE2 |
| Line in | CN9 | IR connector 1 | IR3 |
| Microphone in | CN10 | IR connector 2 | IR4 |
| Game/MIDI port | CN11 | 32-bit PCI slots | PC1 - PC3 |
| Power LED & keylock | CN12/Pins 1 - 5 | SB-Link connector | SB |
| Speaker | CN12/Pins 7 - 10 | TV-Out connector | TV |
| Reset switch | CN12/Pins 12 & 13 | Wake-on-LAN connector | WOL |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | CMOS |
Pins 1 & 2 closed |
| CMOS memory clear | CMOS |
Pins 2 & 3 closed |
|
| » | Factory configured - do not alter | JP1 | Unidentified |
| BSEL at 100MHz | JP2 | Pins 1 & 2 closed |
|
| BSEL at 133MHz | JP2 | Pins 2 & 3 closed |
|
| Vcore at 3v | JP3 | Closed |
|
| Vcore at 2v | JP3 | Open |
|
» |
On board AC-97 CODEC enabled | JP10 | Pins 2 & 3 closed |
| On board AC-97 CODEC disabled | JP10 | Pins 1 & 2 closed | |
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
256MB |
(1) 32M x 64 |
None |
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A and greater CPUs. |
CPU FREQUENCY SELECTION |
||||
Speed |
SW1/1 | SW1/2 | SW1/3 | SW1/4 |
66MHz |
On | On | Off | Off |
| 75MHz | Off | Off | On | On |
| 83MHz | Off | Off | On | Off |
| 90MHz | Off | Off | Off | On |
| 95MHz | Off | Off | Off | Off |
| 100MHz | On | On | On | On |
CPU VOLTAGE SELECTION |
|||||
Voltage |
VIDEO0 | VIDEO1 | VIDEO2 | VIDEO3 | VIDEO4 |
| 1.3v | Closed | Closed | Closed | Closed | Open |
| 1.35v | Open | Closed | Closed | Closed | Open |
| 1.4v | Closed | Open | Closed | Closed | Open |
| 1.45v | Open | Open | Closed | Closed | Open |
| 1.5v | Closed | Closed | Open | Closed | Open |
| 1.55v | Open | Closed | Open | Closed | Open |
| 1.6v | Closed | Open | Open | Closed | Open |
| 1.65v | Open | Open | Open | Closed | Open |
| 1.7v | Closed | Closed | Closed | Open | Open |
| 1.75v | Open | Closed | Closed | Open | Open |
| 1.8v | Closed | Open | Closed | Open | Open |
| 1.85v | Open | Open | Closed | Open | Open |
| 1.9v | Closed | Closed | Open | Open | Open |
| 1.95v | Open | Closed | Open | Open | Open |
| 2v | Closed | Open | Open | Open | Open |
| 2.05 | Open | Open | Open | Open | Open |
| 2v | Closed | Closed | Closed | Closed | Closed |
| 2.1v | Open | Closed | Closed | Closed | Closed |
| 2.2v | Closed | Open | Closed | Closed | Closed |
| 2.3v | Open | Open | Closed | Closed | Closed |
| 2.4v | Closed | Closed | Open | Closed | Closed |
| 2.5v | Open | Closed | Open | Closed | Closed |
| 2.6v | Closed | Open | Open | Closed | Closed |
| 2.7v | Open | Open | Open | Closed | Closed |
| 2.8v | Closed | Closed | Closed | Open | Closed |
| 2.9v | Open | Closed | Closed | Open | Closed |
| 3v | Closed | Open | Closed | Open | Closed |
| 3.1v | Open | Open | Closed | Open | Closed |
| 3.2v | Closed | Closed | Open | Open | Closed |
| 3.3v | Open | Closed | Open | Open | Closed |
| 3.4v | Closed | Open | Open | Open | Closed |
| 3.5 | Open | Open | Open | Open | Closed |
