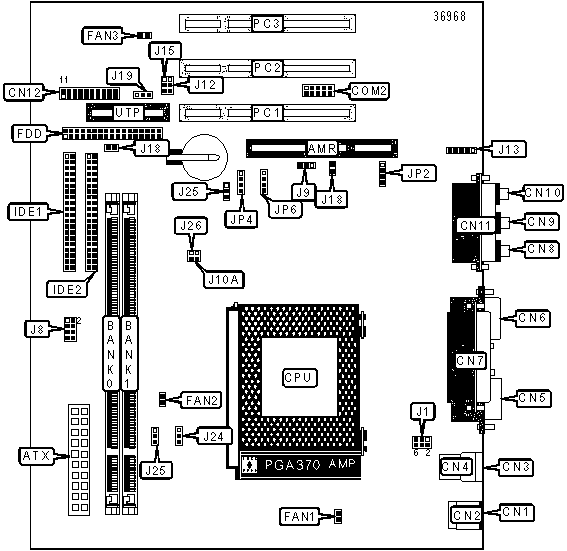

BOARDRUNNER
6M810
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 266/300/333/366/400/433/466/500MHz |
| Chip Set | Intel |
| Video Chip Set | Intel |
| Audio Chip Set | Unidentified |
| Maximum Onboard Memory | 512MB (SDRAM supported) |
| Maximum Video Memory | Unidentified |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128KB (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | 244mm x 170mm |
| I/O Options | 32-bit PCI slots (3), floppy drive interface, game/MIDI port, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial interface, serial port, VGA port, IR connector, USB ports (2), UTP slot, ATX power connector, Audio/Modem Riser slot, line in, line out, microphone in, audio in - CD-ROM, audio in - Auxilliary, audio in - TAD, Wake-on-LAN connector |
CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Audio/Modem Riser slot | AMR | Green PC LED | CN12/Pins 7 & 8 |
| ATX power connector | ATX |
Power switch | CN12/Pins 9 & 10 |
| PS/2 mouse port | CN1 | Power LED | CN12/Pins 11 - 13 |
| PS/2 keyboard port | CN2 | Speaker | CN12/Pins 17 - 20 |
| USB port 1 | CN3 | CPU fan power | FAN1 |
| USB port 2 | CN4 | Chassis fan power | FAN2 |
| Serial port 1 | CN5 | AMR fan power | FAN3 |
| VGA port | CN6 | Floppy drive interface | FDD |
| Parallel port | CN7 | IDE interface 1 | IDE1 |
| Line in | CN8 | IDE interface 2 | IDE2 |
| Line out | CN9 | IR connector | J13 |
| Microphone in | CN10 | Wake-on-LAN connector | J19 |
| Game/MIDI port | CN11 | Audio in - Auilliary | JP2 |
| Serial port 2 | COM2 | Audio in - TAD | JP4 |
| Reset switch | CN12/Pins 1 & 2 | Audio in - CD-ROM | JP6 |
| IDE interface LED | CN12/Pins 3 & 4 | 32-bit PCI slots | PC1 - PC3 |
| EPMI interface | CN12/Pins 5 & 6 | USB/PanelLink/TV-Out slot | UTP |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| AMR secondary slot setting | J9 |
Pins 1 & 2 closed |
|
| AMR primary slot setting | J9 |
Pins 2 & 3 closed |
|
| » | Normal bus operation for 66MHz | J10A |
Closed |
| Overclocking bus operation for 66MHz CPU (100MHz) | J10A |
Open |
|
» |
CMOS memory normal operation | J12 |
Pins 1 & 2 closed |
| CMOS memory clear | J12 |
Pins 2 & 3 closed |
|
| » | Password normal operation | J15 | Pins 1 & 2 closed |
| Password clear | J15 | Pins 2 & 3 closed |
|
» |
Factory configured - do not alter | J16 |
Open |
» |
Factory configured - do not alter | J18 |
Open |
| Suspend to RAM disabled | J23 | Pins 1 & 2 closed |
|
| Suspend to RAM enabled | J23 | Pins 2 & 3 closed |
|
|
CPU voltage increase by 2% | J24 |
Pins 1 & 2 closed |
| CPU voltage increase by 5% | J24 |
Pins 2 & 3 closed |
|
| » | ICH volatage setting at 3.3v | J25 |
Pins 1 & 2 closed |
| ICH volatage setting at 3.9v | J25 |
Pins 2 & 3 closed |
|
| » | Normal bus operation for 100MHz | J26 |
Closed |
| Overclocking bus operation for 100MHz CPU (133MHz) | J26 |
Open |
|
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
256MB |
(1) 32M x 64 |
None |
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A and greater CPUs. |
CPU SPEED SELECTION |
|||||
Speed |
J8/Pins 1 & 2 | J8/Pins 3 & 4 | J8/Pins 5 & 6 | J8/Pins 7 & 8 | |
» |
66MHz | Open | Open | Open | Open |
| 70MHz | Closed | Open | Open | Open | |
| 75MHz | Closed | Closed | Closed | Closed | |
| 83MHz | Closed | Closed | Closed | Open | |
| 90MHz | Closed | Closed | Open | Closed | |
| 95MHz | Closed | Closed | Open | Open | |
| 100MHz | Open | Open | Closed | Open | |
| 105MHz | Open | Open | Open | Closed | |
| 114MHz | Closed | Open | Open | Closed | |
| 124MHz | Open | Closed | Closed | Open | |
| 133MHz | Open | Closed | Open | Closed | |
POWER-ON SELECTION |
||
Speed |
J1 | |
|
Mouse/Keyboard power-on | Pins 1 & 3, 2 & 4 closed |
| » | Keyboard power-on | Pins 2 & 4, 3 & 5 closed |
| Mouse power-on | Pins 1 & 3, 4 & 6 closed | |
